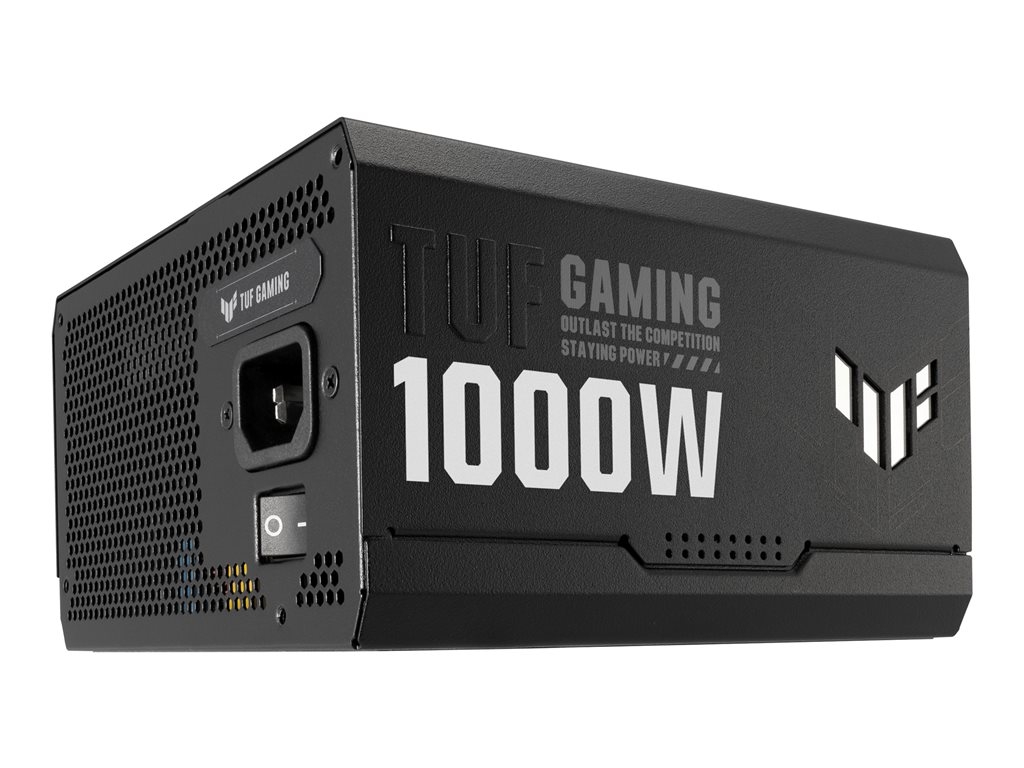

ASUS TUF Gaming - power supply - 1000 Watt

SKU 90YE00S1-B0NA00

Product Description:	ASUS TUF Gaming - power supply - 1000 Watt
Device Type:	Power supply - internal
Specification Compliance:	ATX12V
80 PLUS Certification:	80 PLUS Gold
Weight:	2.48 kg
Input Voltage:	AC 100-240 V
Output Voltage:	+3.3, +5, ±12 V

Not in stock

Power Device
Input Voltage:	AC 100-240 V
Power Output Connectors Details:	1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 16 pin PCI Express power ¦ 4 x 4 PIN internal power ¦ 5 x 15 pin Serial ATA power
Output Voltage:	+3.3, +5, ±12 V
Power Capacity:	1000 Watt
Output Current:	+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83.3 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A
Modular Cable Management:	Yes
80 PLUS Certification:	80 PLUS Gold

Miscellaneous
Included Accessories:	Cable ties
Features:	Over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, Axial-tech fan design
Compliant Standards:	RoHS

Manufacturer Warranty
Service & Support:	Limited warranty - 10 years

The TUF Gaming 1000W Gold is an efficient, resilient and dependable PSU that’s engineered for the long haul.

Capacitors and chokes pass demanding tests to achieve military-grade certification
Dual ball fan bearings can last up to twice as long as sleeve bearing designs
A protective PCB coating protects against moisture, dust, and extreme temperatures
An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
Fully modular etched cables keep your rig neat and tidy

The technical details come from 3rd party. edgemo is not responsible for any errors.
