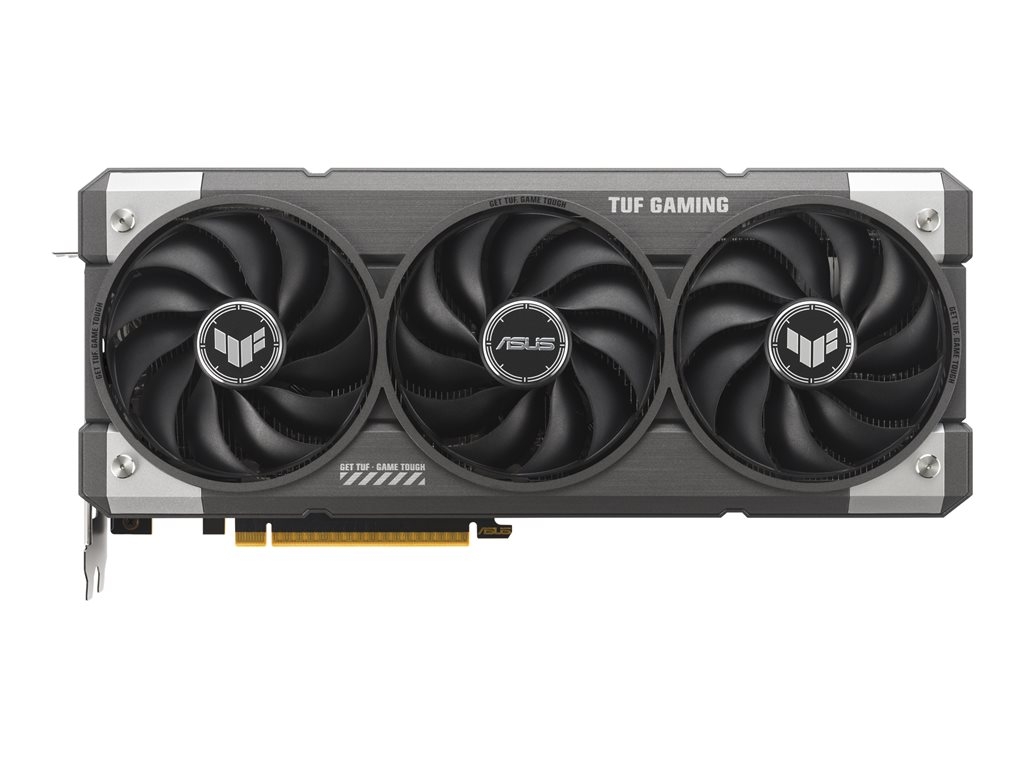

ASUS TUF Gaming GeForce RTX 5060 8GB - graphics card - GeForce RTX 5060 - 8 GB
SKU 90YV0N01-M0NA00
Product Description: | ASUS TUF Gaming GeForce RTX 5060 8GB - graphics card - GeForce RTX 5060 - 8 GB |
Device Type: | Graphics card |
Bus Type: | PCI Express 5.0 |
Graphics Engine: | NVIDIA GeForce RTX 5060 - up to 613 TOPS |
Memory: | 8 GB GDDR7 |
Memory Speed: | 28 Gbps |
Boost Clock: | 2497 MHz |
- Specifications
- Description
General | |
Device Type: | Graphics card |
Bus Type: | PCI Express 5.0 |
Graphics Engine: | NVIDIA GeForce RTX 5060 |
Boost Clock: | 2497 MHz |
Boost Clock (OC): | 2527 MHz |
CUDA Cores: | 3840 |
VR Ready: | Yes |
Max Resolution: | 7680 x 4320 |
Max Monitors Supported: | 4 |
Interfaces Details: | 3 x DisplayPort ¦ HDMI |
API Supported: | OpenGL 4.6 |
Features: | NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA Reflex 2, Nvidia Studio, Nvidia Broadcast, 9th Gen NVIDIA Encoder, 4th gen Ray Tracing Cores, 5th gen Tensor Cores, Triple Fan, 3.1-slot Fan Cooler, ASUS AURA SYNC support, vented exoskeleton, Axial-tech Fan Design, Dual Bios, NVIDIA Frame Warp, NVIDIA Avatar Cloud Engine (ACE), NVIDIA Multi Frame Generation, NVIDIA G-Sync ready, TUF 5K black metallic capacitors, Dual ball Bearing Fans, PCB dust/moisture/corrosion coating, MaxContact technology, reverse airflow, ASUS GPU Guard, AUTO-EXTREME technology, HDCP |
Memory | |
Size: | 8 GB |
Technology: | GDDR7 SDRAM |
Memory Speed: | 28 Gbps |
Bus Width: | 128-bit |
Performance | |
NPU Performance Up To (TOPS): | 613 TOPS |
System Requirements | |
Required Power Supply: | 550 W |
Additional Requirements: | 8 pin PCI Express power connector |
Miscellaneous | |
Included Accessories: | TUF hook-and-loop fastener, thank you card, TUF Gaming Certificate |
Software Included: | NVIDIA Studio drivers, ASUS GPU Tweak III, GeForce Game Ready Drivers, Adobe Creative Cloud All Apps (1 month membership), NVIDIA App |
Compliant Standards: | HDCP 2.3, DisplayPort 2.1b |
Width: | 6.2 cm |
Depth: | 30.2 cm |
Height: | 13.35 cm |
The ASUS TUF Gaming GeForce RTX 5060 8GB OC Edition is designed for gamers and creators looking to elevate their performance. With advanced NVIDIA technologies and impressive specifications, it offers smooth and responsive gaming experiences. Featuring a robust 8 GB of GDDR7 SDRAM and a wide 128-bit bus, it provides memory speed of 28 Gbps, ensuring faster data processing for demanding gaming and graphic applications. The card supports a maximum external resolution of 7680 x 4320 and allows connection to up to four monitors, making it suitable for multitasking and immersive setups.
Equipped with a powerful NVIDIA GeForce RTX 5060 GPU, it delivers performance with up to 648 TOPS of NPU performance. The design incorporates a triple fan cooling system and features like dual ball bearing fans for durability and efficient cooling. With NVIDIA G-Sync readiness and technologies like Ray Tracing Cores and Tensor Cores, it enhances graphics rendering and overall visual quality. This card also includes thoughtful accessories such as a TUF hook-and-loop fastener and a thank you card, ensuring an enhanced user experience.
Equipped with a powerful NVIDIA GeForce RTX 5060 GPU, it delivers performance with up to 648 TOPS of NPU performance. The design incorporates a triple fan cooling system and features like dual ball bearing fans for durability and efficient cooling. With NVIDIA G-Sync readiness and technologies like Ray Tracing Cores and Tensor Cores, it enhances graphics rendering and overall visual quality. This card also includes thoughtful accessories such as a TUF hook-and-loop fastener and a thank you card, ensuring an enhanced user experience.
- 8 GB GDDR7 SDRAM with 28 Gbps memory speed
- Supports up to 4 monitors with a maximum external resolution of 7680 x 4320
- NVIDIA G-Sync ready for smooth gameplay
- Features a triple fan cooling system for effective heat dissipation
- Supports technologies like Ray Tracing and DLSS 4
