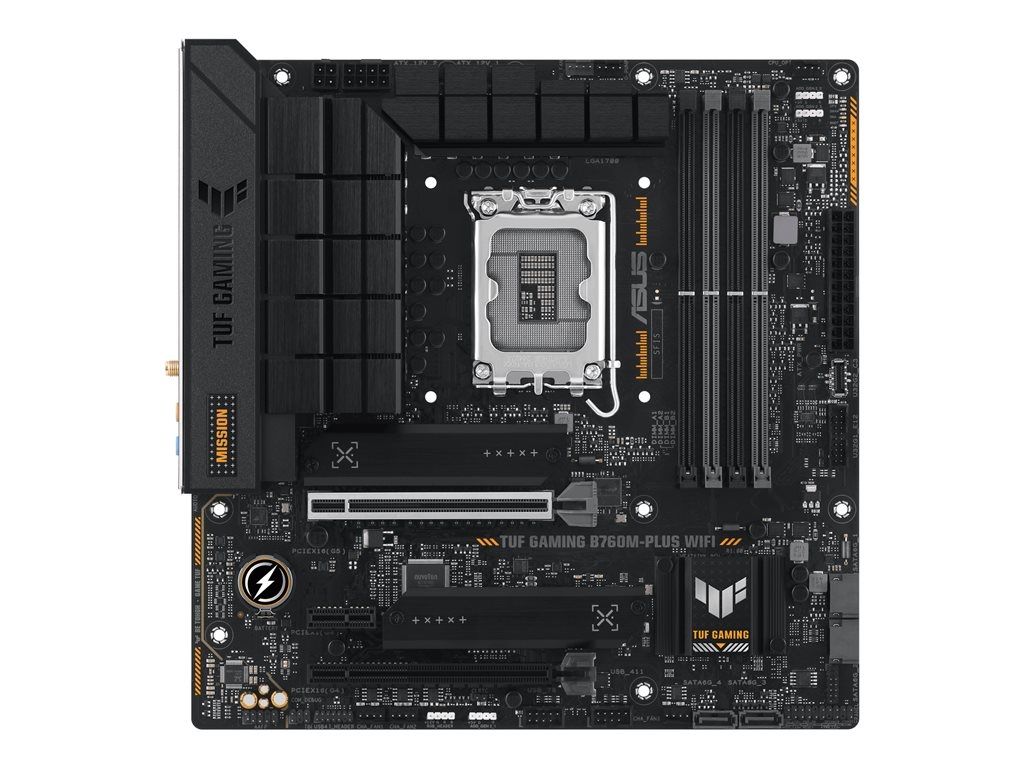

Printers & POSASUS TUF GAMING B760M-PLUS WIFI - motherboard - micro ATX - LGA1700 Socket - B760
SKU 90MB1ET0-M0EAY0
| Product Description: | ASUS TUF GAMING B760M-PLUS WIFI - motherboard - micro ATX - LGA1700 Socket - B760 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel B760 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 192 GB |
| RAM Supported: | 4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel B760 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 192 GB |
| Technology: | DDR5 |
| Bus Clock: | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Supported RAM Integrity Check: | Non-ECC, on-die ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | High Definition Audio (7.1-channel) |
| Compliant Standards: | Digital Theater Systems (DTS), High Definition Audio |
| LAN | |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces: | PCIe 4.0 -connectors: 2 x M.2 ¦ SATA-600 -connectors: 5 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 1 x DisplayPort ¦ 1 x HDMI ¦ 2 x aerial ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x SPDIF out ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out/headphones - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack |
| Internal Interfaces: | 1 x USB 3.2 Gen 2 - header ¦ 1 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, 6 Layer PCB, TUF LANGuard, overvoltage protection, AURA RGB Lighting Control, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, ASUS SafeSlot Core+, M.2 Q-Latch, CPU Socket lever protector, VRM heatsink design, 12+1 DrMOS power stages, TUF Chokes military-grade, TUF 5K black metallic capacitors |
| Miscellaneous | |
| Included Accessories: | ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 screw package, TUF certification card, TUF GAMING sticker |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, MyAsus, Armoury Crate, Norton 360 for Gamers, ASUS Fan Xpert 2+, DTS Audio Processing |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
TUF GAMING B760M-PLUS Wi-Fi takes all the essential elements of the advanced Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
- 12 + 1 DrMOS power stages with enlarged VRM heatsinks
- PCIe 5.0 for graphics cards
- DDR5 memory module support
- USB 3.2 Gen 2 x2 Type-C and a front-panel USB 3.2 Gen 2 Type-C header
- 2.5 Gb Ethernet
- Wi-Fi 6
- Two-Way AI Noise Cancellation
The technical details come from 3rd party. edgemo is not responsible for any errors.
