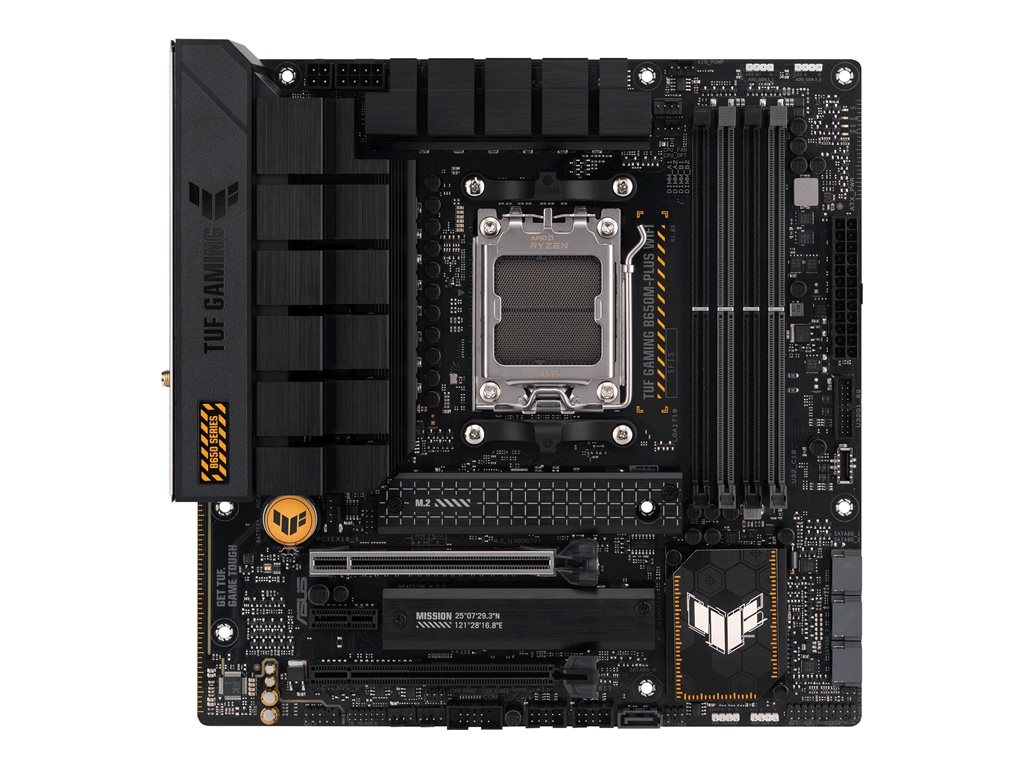

ASUS TUF Gaming B650M-Plus WIFI - motherboard - micro ATX - Socket AM5 - AMD B650
SKU 90MB1BF0-M0EAY0
Product Description: | ASUS TUF Gaming B650M-Plus WIFI - motherboard - micro ATX - Socket AM5 - AMD B650 |
Product Type: | Motherboard - micro ATX |
Chipset Type: | AMD B650 |
Processor Socket: | 1 x Socket AM5 |
Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
Max RAM Size: | 128 GB |
RAM Supported: | 4 DIMM slots - DDR5, non-ECC, ECC, on-die ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - micro ATX |
Chipset Type: | AMD B650 |
Processor Socket: | Socket AM5 |
Max Processors Qty: | 1 |
Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
Supported RAM | |
Max Size: | 128 GB |
Technology: | DDR5 |
Bus Clock: | 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5000 MHz |
Supported RAM Integrity Check: | Non-ECC, ECC, on-die ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture, AMD EXPO technology |
Audio | |
Type: | HD Audio (8-channel) |
Compliant Standards: | High Definition Audio |
LAN | |
Network Interfaces: | 2.5 Gigabit Ethernet, Bluetooth 5.2 |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 2 x aerial ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) |
Internal Interfaces: | 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x serial - header |
Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
Hardware Features: | Jack retasking, ASUS Q-Design, 12+2 Phase Power Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, TUF LANGuard, TUF Components, overvoltage protection, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, Water Pump Header, pre-mounted I/O shield, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, M.2 Q-Latch, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, 60A Power Stage |
Miscellaneous | |
Included Accessories: | ASUS Wi-Fi moving aerial, 2 x M.2 rubber package, M.2 screw package |
Cables Included: | 2 x Serial ATA cable |
Software Included: | ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial), ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 2+ |
Compliant Standards: | VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH |
Width: | 24.4 cm |
Depth: | 24.4 cm |
ASUS TUF Gaming B650M-Plus WIFI takes all the essential elements of the advanced processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming.
- Intelligent control
- Rock-solid performance
- Teamed power stages
- ProCool power connectors
- Digi+ VRM
- Enlarged VRM heatsink
- Optimized M.2 heatsink design
- Excellent connectivity
- Stainless steel I/O panel
- TUF LANGuard
- Immersive gaming
- 2.5 Gb Ethernet
