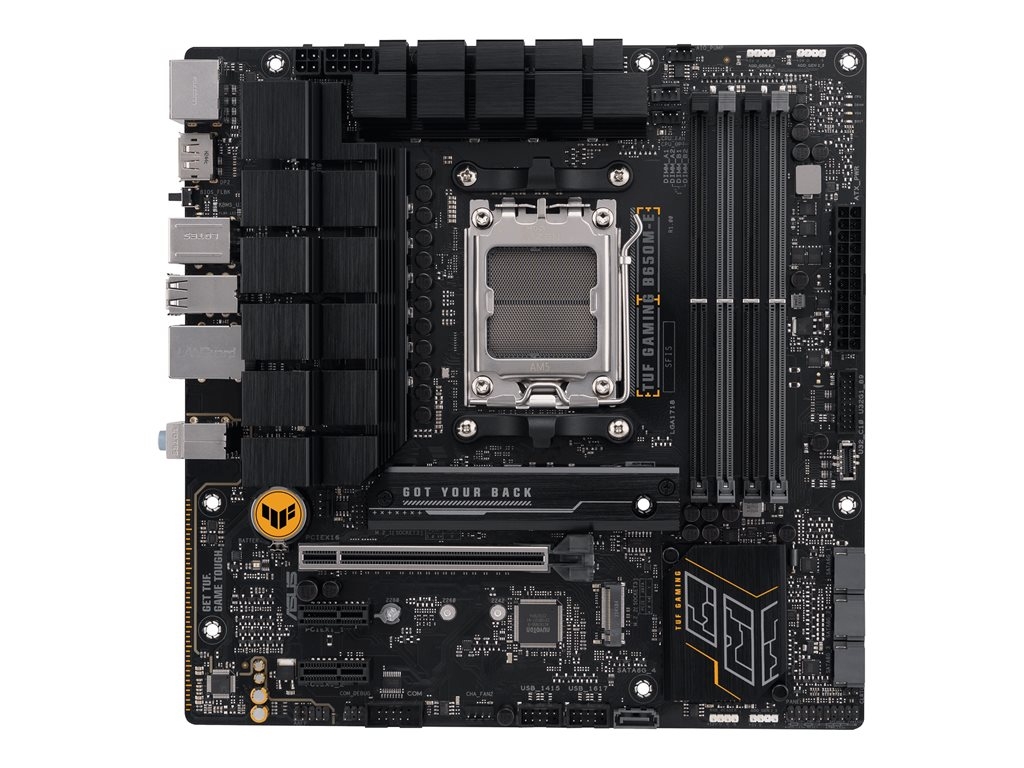

Printers & POSASUS TUF GAMING B650M-E - motherboard - micro ATX - Socket AM5 - AMD B650
SKU TUF GAMING B650M-E
| Product Description: | ASUS TUF GAMING B650M-E - motherboard - micro ATX - Socket AM5 - AMD B650 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD B650 |
| Processor Socket: | 1 x Socket AM5 |
| Compatible Processors: | Ryzen (supports Ryzen 7000/8000 Series) |
| Max RAM Size: | 192 GB |
| RAM Supported: | 4 DIMM slots - DDR5, non-ECC, ECC, on-die ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD B650 |
| Processor Socket: | Socket AM5 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports Ryzen 7000/8000 Series) |
| Supported RAM | |
| Max Size: | 192 GB |
| Technology: | DDR5 |
| Bus Clock: | 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 7600 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC, ECC, on-die ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, AMD EXPO technology |
| Audio | |
| Type: | HD Audio (8-channel) |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 5.0 -connectors: 1 x M.2 |
| Interfaces: | 1 x HDMI ¦ 2 x DisplayPort ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x serial - header |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
| Hardware Features: | Jack retasking, ASUS Q-Design, 12+2 Phase Power Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, TUF LANGuard, TUF Components, overvoltage protection, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, Water Pump Header, pre-mounted I/O shield, ASUS TUF Protection, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, M.2 Q-Latch, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, 60A Power Stage |
| Miscellaneous | |
| Included Accessories: | IO shield, 1 x M.2 rubber package, M.2 screw package, TUF certification card, TUF GAMING sticker |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | ASUS AI Suite III, PC Cleaner, WinRAR, ASUS TUF GAMING CPU-Z, ASUS AURA Creator, Armoury Crate, ASUS Fan Xpert 2+, Norton 360 for Gamers (60 days trial) |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
