ASUS TUF GAMING B550-PLUS - motherboard - ATX - Socket AM4 - AMD B550
SKU 90MB14G0-M0EAY0
Product Description: | ASUS TUF GAMING B550-PLUS - motherboard - ATX - Socket AM4 - AMD B550 |
Product Type: | Motherboard - ATX |
Chipset Type: | AMD B550 |
Processor Socket: | 1 x Socket AM4 |
Compatible Processors: | Ryzen (supports 3rd Generation Ryzen) |
Max RAM Size: | 128 GB |
RAM Supported: | 4 DIMM slots - DDR4 unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - ATX |
Chipset Type: | AMD B550 |
Processor Socket: | Socket AM4 |
Max Processors Qty: | 1 |
Compatible Processors: | Ryzen (supports 3rd Generation Ryzen) |
Supported RAM | |
Max Size: | 128 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3466 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz |
Registered or Buffered: | Unbuffered |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | Realtek ALCS1200A |
Compliant Standards: | High Definition Audio, DTS Custom |
LAN | |
Network Controller: | Realtek RTL8125B |
Network Interfaces: | 2.5 Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 3 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 (x4 mode (x2 mode if PCI Express 3.0 x1 slot is occupied)) ¦ 1 x M.2 socket (Key E) |
Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |

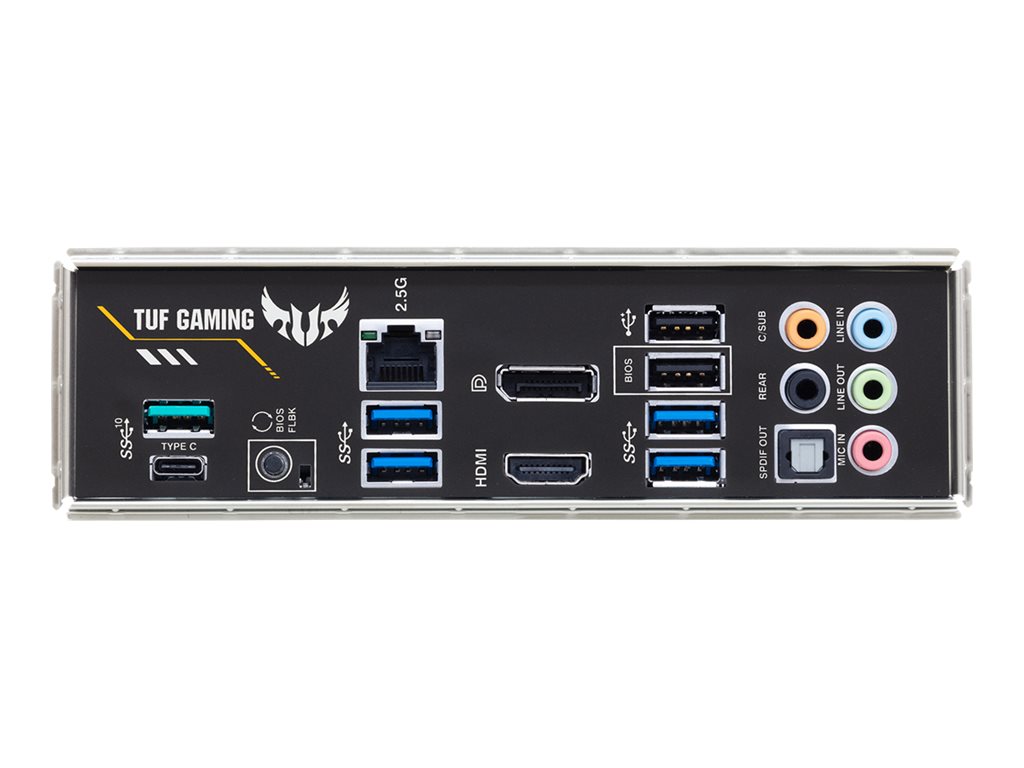

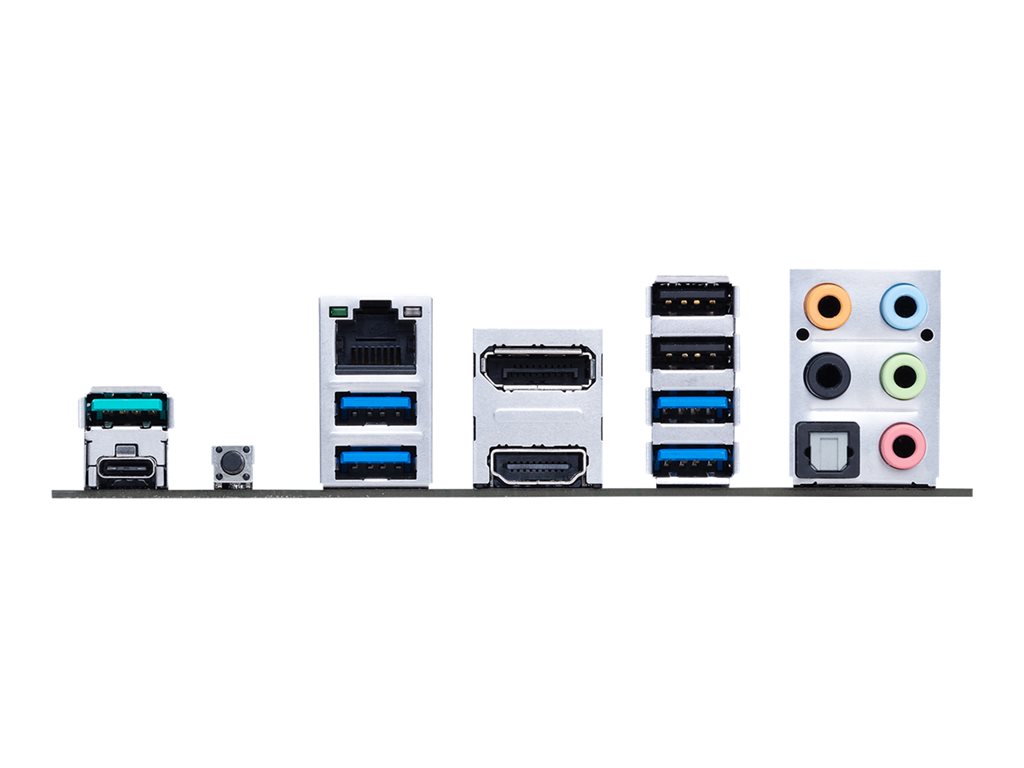

Interfaces: | 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 1 x USB-C Gen2 ¦ 2 x USB 2.0 ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack |
Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header |
Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3 |
Sleep / Wake Up: | Wake on LAN (WOL) |
Hardware Features: | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), Turbo LAN, ASUS Fan Xpert 2+, TUF LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot, ASUS ProCool, ASUS TUF Protection, ASUS Aura Sync, Armoury Crate |
Miscellaneous | |
Included Accessories: | 1 x M.2 screw, I/O back cover, TUF stickers, rubber pad |
Cables Included: | 2 x Serial ATA cable |
Software Included: | Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial) |
Compliant Standards: | DisplayPort 1.4 |
Width: | 30.5 cm |
Depth: | 24.4 cm |
TUF Gaming B550M-Plus distills essential elements of the AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, perfect compatibility, and complementary aesthetics from components to case.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted industry partners that ensures easier building, perfect compatibility, and complementary aesthetics from components to case.
- Rock-solid performance
- Stack Cool 3+
- Digi+ VRM
- Comprehensive fan controls
- PCIe 4.0 M.2 (up to 64 Gbps)
- USB 3.2 Gen 2 Type-A an Type-C
- Build with confidence
- SafeSlot
- DRAM overvoltage protection
- Stainless-steel back I/O panel
- Immersive gaming
