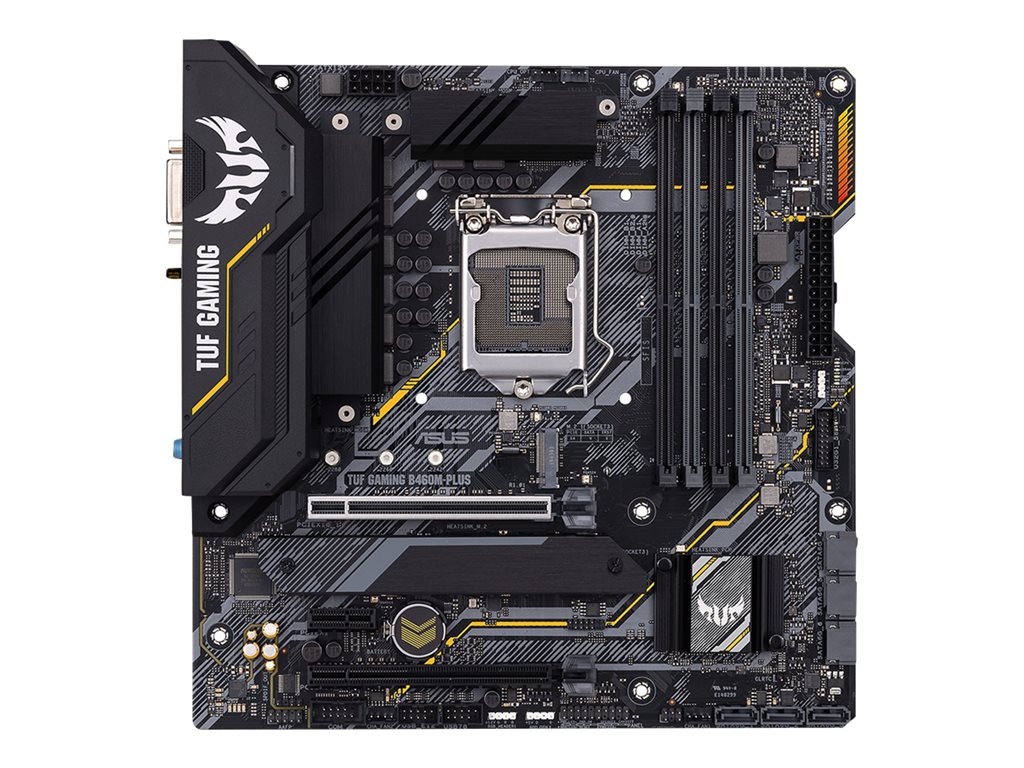

ASUS TUF GAMING B460M-PLUS - motherboard - micro ATX - LGA1200 Socket - B460
SKU 90MB1450-M0EAY0
Product Description: | ASUS TUF GAMING B460M-PLUS - motherboard - micro ATX - LGA1200 Socket - B460 |
Product Type: | Motherboard - micro ATX |
Chipset Type: | Intel B460 |
Processor Socket: | 1 x LGA1200 Socket |
Compatible Processors: | Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
Max RAM Size: | 128 GB |
RAM Supported: | 4 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - micro ATX |
Chipset Type: | Intel B460 |
Processor Socket: | LGA1200 Socket |
Max Processors Qty: | 1 |
Compatible Processors: | Celeron, Core i5, Core i3, Core i7, Core i9, Pentium Gold (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
Supported RAM | |
Max Size: | 128 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz |
Supported RAM Integrity Check: | Non-ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | Realtek ALCS1200A |
Compliant Standards: | High Definition Audio, DTS Custom |
LAN | |
Network Controller: | Intel I219V |
Network Interfaces: | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 |
Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |
RAID Features: | Intel Rapid Storage Technology |
Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x DVI ¦ 2 x USB 2.0 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) |
Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header |
Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
Sleep / Wake Up: | Wake on LAN (WOL) |
Hardware Features: | Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Extreme Memory Profile (XMP) support, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Turbo LAN, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, Intel Optane Memory Ready, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem, ASUS TUF Protection, ASUS Aura Sync, Armoury Crate, ASUS SafeSlot Core+ |
Miscellaneous | |
Included Accessories: | 1 x M.2 screw, I/O back cover, TUF stickers, 1 x M.2 rubber package |
Cables Included: | 2 x Serial ATA cable |
Software Included: | ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, ASUS EZ Flash 3, WinRAR, Norton AntiVirus (60 days trial) |
Width: | 24.4 cm |
Depth: | 24.4 cm |
TUF Gaming B460M-Plus distills essential elements of an advanced platform and combines them with game-ready features and proven durability. Engineered with powerful components, an advanced power solution and outstanding cooling, this motherboard delivers rock-solid performance with unwavering gaming stability.
- Intel LGA socket: ready for powerful processors
- Enhanced power solution: 6+1+1 power stages
- TUF components and Digi+ VRM for maximum durability
- Comprehensive cooling: VRM, M.2 and PCH heatsinks
- Made for online gaming: TUF LANGuard and Turbo LAN technology
- Pristine audio quality with unprecedented signal-to-noise ratio
- Synchronizable LED effects across a vast portfolio of compatible PC gear, including addressable RGB strips
