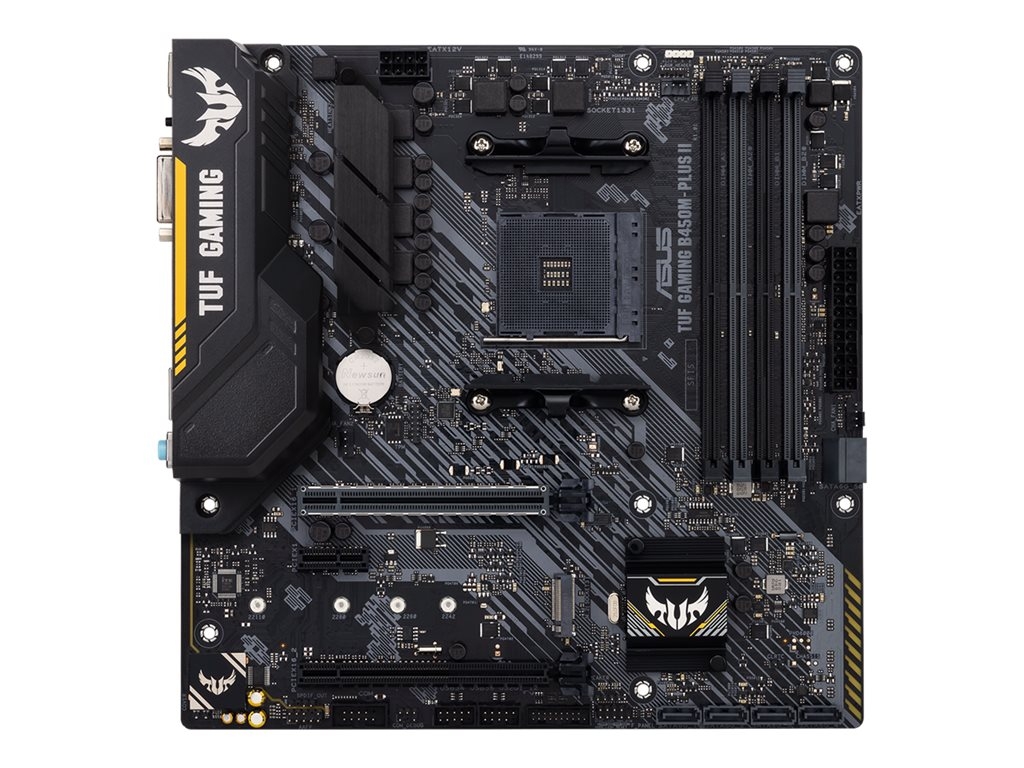

ASUS TUF GAMING B450M-PLUS II - motherboard - micro ATX - Socket AM4 - AMD B450

SKU 90MB1620-M0EAY0
Product Description:ASUS TUF GAMING B450M-PLUS II - motherboard - micro ATX - Socket AM4 - AMD B450
Product Type:Motherboard - micro ATX
Chipset Type:AMD B450
Processor Socket:1 x Socket AM4
Compatible Processors:Ryzen, Athlon (supports 1st,2nd and 3rd Generation Ryzen / Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics)
Max RAM Size:128 GB
RAM Supported:4 DIMM slots - DDR4, non-ECC, ECC, unbuffered
06-12-2024
Login for price
  • Specifications
  • Description
  • Accessories
General
Product Type:Motherboard - micro ATX
Chipset Type:AMD B450
Processor Socket:Socket AM4
Max Processors Qty:1
Compatible Processors:Ryzen, Athlon (supports 1st,2nd and 3rd Generation Ryzen / Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics)
Supported RAM
Max Size:128 GB
Technology:DDR4
Bus Clock:2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.), 3533 MHz (O.C.), 3400 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.)
Supported RAM Integrity Check:Non-ECC, ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture
Audio
Type:HD Audio (8-channel)
Audio Codec:Realtek ALC887
Compliant Standards:High Definition Audio, DTS Custom
LAN
Network Controller:Realtek RTL8111H
Network Interfaces:Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st, 2nd and 3rd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Vega Graphics); x4 mode (with Athlon with Radeon Vega Graphics)) ¦ 1 x PCIe 2.0 x1 ¦ 1 x PCIe 2.0 x16 (x4 mode)
Storage Interfaces:SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces:1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DVI-D ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen1 ¦ 2 x USB 3.2 Gen 1
Internal Interfaces:4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x speaker - header
Power Connectors:24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type:AMI
BIOS Features:UEFI BIOS, BIOS FlashBack
Sleep / Wake Up:Wake on LAN (WOL)
Hardware Features:Preboot eXecution Environment (PXE), AMD CrossFireX technology support, TUF LANGuard, audio jack detect technology, jack retasking, Armoury Crate, ASUS Aura Sync, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, ASUS EZ DIY, CrashFree BIOS 3, ASUS Fan Xpert 2+, ASUS TUF Protection, ESD Guards, ASUS Overvoltage Protection, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, TUF Components
Miscellaneous
Included Accessories:1 x M.2 screw, I/O back cover, TUF stickers
Cables Included:2 x Serial ATA cable
Software Included:Drivers & Utilities, ASUS AI Suite III, ASUS EZ Update, ASUS EZ Flash 3, PC Cleaner, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial), ASUS TUF GAMING CPU-Z
Width:24.4 cm
Depth:24.4 cm
vis mere
TUF GAMING B450M-PLUS II provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
  • Comprehensive cooling
  • Next-gen connectivity
  • AI noise-canceling microphone
  • Aura Sync RGB Lighting
