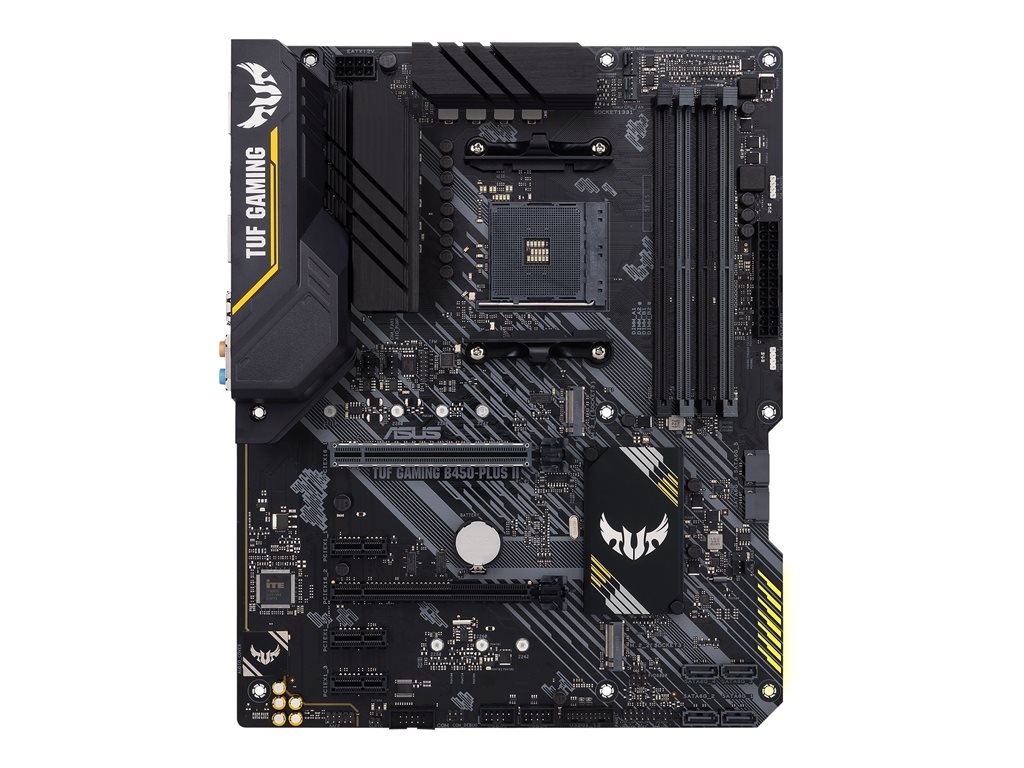

Printers & POSASUS TUF GAMING B450-PLUS II - motherboard - ATX - Socket AM4 - AMD B450
SKU 90MB1650-M0EAY0
| Product Description: | ASUS TUF GAMING B450-PLUS II - motherboard - ATX - Socket AM4 - AMD B450 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B450 |
| Processor Socket: | 1 x Socket AM4 |
| Compatible Processors: | Ryzen, Athlon (supports 1st,2nd and 3rd Generation Ryzen / Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B450 |
| Processor Socket: | Socket AM4 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen, Athlon (supports 1st,2nd and 3rd Generation Ryzen / Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz, 3200 MHz, 3000 MHz, 3466 MHz (O.C.), 3533 MHz (O.C.), 4400 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC, ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALCS1200A |
| Compliant Standards: | High Definition Audio, DTS Custom |
| LAN | |
| Network Controller: | Realtek RTL8200A |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st, 2nd and 3rd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Vega Graphics); x4 mode (with Athlon with Radeon Vega Graphics)) ¦ 3 x PCIe 2.0 x1 ¦ 1 x PCIe 2.0 x16 (x4 mode) |
| Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 2.0 -connectors: 1 x M.2 |
| Interfaces: | 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x audio line-out (rear) - mini-jack ¦ 4 x USB 3.2 Gen 1 ¦ 1 x DisplayPort |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, BIOS FlashBack, ASUS Quiet Thermal Solution |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Preboot eXecution Environment (PXE), AMD CrossFireX technology support, TUF LANGuard, ASUS TUF Protection, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, ASUS Overvoltage Protection, ASUS SafeSlot, Armoury Crate, ASUS Fan Xpert 4 Core, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit) |
| Miscellaneous | |
| Included Accessories: | 1 x M.2 screw, I/O back cover, TUF stickers |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, PC Cleaner, ASUS EZ Update, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial), ASUS TUF GAMING CPU-Z |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
TUF Gaming B450-PLUS II distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
- Comprehensive cooling: VRM heatsinks, PCH heatsink, Fan Xpert 4 core
- Next-gen connectivity: USB 3.2 Gen 2 Type-A and Type-C support
- Realtek S1200A codec: pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line out and 103dB SNR for line in
- AI Noise-Canceling Microphone: provides crystal-clear in-game voice communication
- Aura Sync RGB lighting: synchronize LED lighting with a vast portfolio of compatible PC gear
The technical details come from 3rd party. edgemo is not responsible for any errors.
