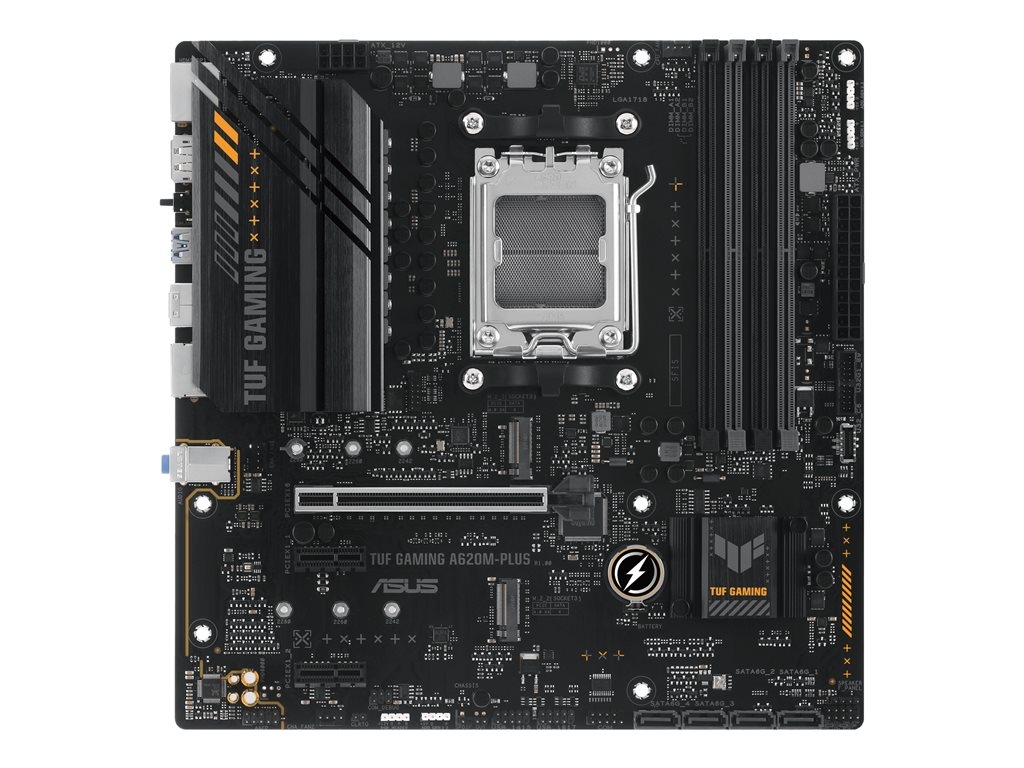

ASUS TUF GAMING A620M-PLUS - motherboard - micro ATX - Socket AM5 - AMD A620

SKU 90MB1EZ0-M0EAY0

Product Description:	ASUS TUF GAMING A620M-PLUS - motherboard - micro ATX - Socket AM5 - AMD A620
Product Type:	Motherboard - micro ATX
Chipset Type:	AMD A620
Processor Socket:	1 x Socket AM5
Compatible Processors:	Ryzen (supports Ryzen 7000 Series)
Max RAM Size:	128 GB
RAM Supported:	4 DIMM slots - DDR5, non-ECC, on-die ECC, ECC, unbuffered

06-12-2024

Specifications
Description
Accessories

General
Product Type:	Motherboard - micro ATX
Chipset Type:	AMD A620
Processor Socket:	Socket AM5
Max Processors Qty:	1
Compatible Processors:	Ryzen (supports Ryzen 7000 Series)

Supported RAM
Max Size:	128 GB
Technology:	DDR5
Bus Clock:	4800 MHz, 5000 MHz, 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.)
Supported RAM Integrity Check:	Non-ECC, on-die ECC, ECC
Registered or Buffered:	Unbuffered
Features:	Dual channel memory architecture, AMD EXPO technology

Audio
Type:	HD Audio (8-channel)
Compliant Standards:	High Definition Audio

LAN
Network Interfaces:	2.5 Gigabit Ethernet

Expansion / Connectivity
Expansion Slots:	1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces:	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces:	1 x HDMI ¦ 2 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces:	1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x speaker - header
Power Connectors:	24-pin main power connector, 8-pin ATX12V connector

Features
BIOS Type:	AMI
BIOS Features:	UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up:	Wake on LAN (WOL), wake on PME
Hardware Features:	ASUS OptiMem II, TUF LANGuard, jack retasking, audio jack detect technology, Water Pump Header, ASUS DIGI+ VRM, ESD Guards, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, ASUS Q-Design, M.2 Q-Latch, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, BIOS FlashBack button, ASUS EZ DIY, BIOS FlashBack LED, ASUS Aura Sync, ASUS TurboV EVO, CrashFree BIOS 3, Preboot eXecution Environment (PXE)

Miscellaneous
Included Accessories:	IO shield, TUF GAMING sticker, M.2 screw package
Cables Included:	2 x Serial ATA cable
Software Included:	Armoury Crate, ASUS Fan Xpert 2+, ASUS AURA Creator, ASUS AI Suite III, PC Cleaner, Norton 360 for Gamers (60 days trial), WinRAR
Compliant Standards:	DisplayPort 1.4, FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, EU RoHS, WEEE
Width:	24.4 cm
Depth:	24.4 cm

vis mere

ASUS TUF GAMING A620M-PLUS takes all the essential elements of AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

All-around energy efficiency
UEFI BIOS
Six-layer PCB design
TUF chokes
TUF capacitors
Digi+ VRM
DRAM overclocking performance
PCIe 4.0 support
Enlarged VRM heatsink
Build with confidence
SafeSlot Core+
ESD Guards
TUF LANGuard
Stainless steel back I/O panel
BIOS FlashBack
M.2 Q-Latch
Q-LED Core
2.5 Gb Ethernet
Two-way AI noise cancelation
Realtek 7.1 surround sound
Outshine the competition
