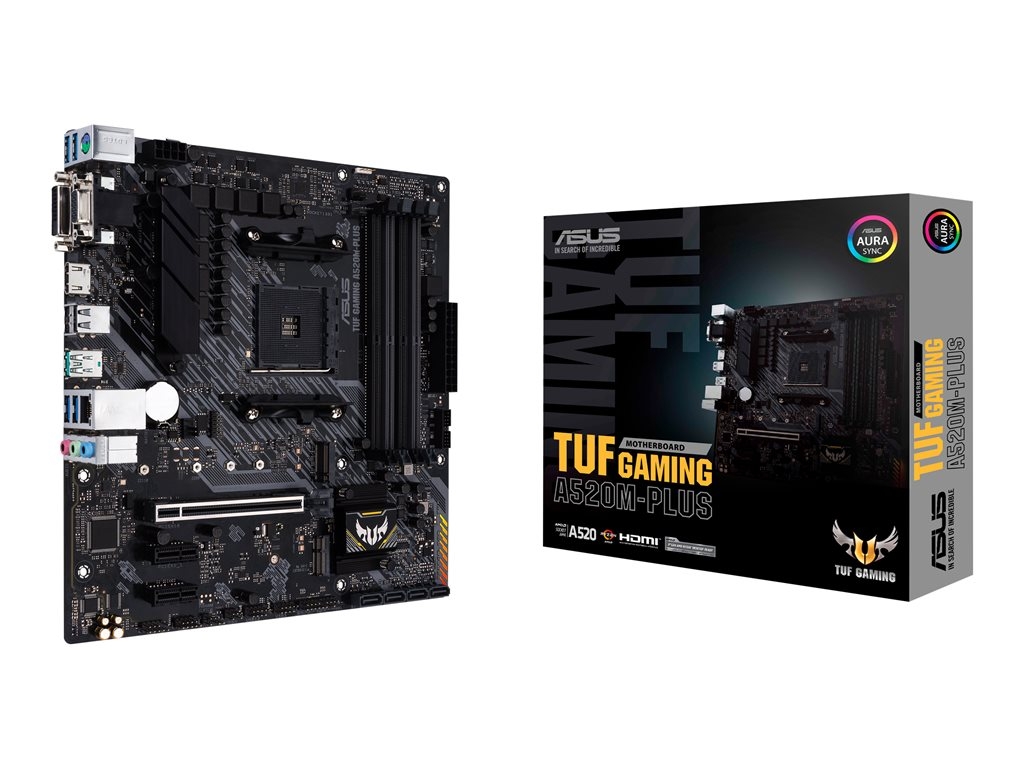

Printers & POSASUS TUF GAMING A520M-PLUS - motherboard - micro ATX - Socket AM4 - AMD A520
SKU 90MB14Y0-M0EAY0
| Product Description: | ASUS TUF GAMING A520M-PLUS - motherboard - micro ATX - Socket AM4 - AMD A520 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD A520 |
| Processor Socket: | 1 x Socket AM4 |
| Compatible Processors: | Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD A520 |
| Processor Socket: | Socket AM4 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 4466 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC, ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC887 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Realtek RTL8200A |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces: | 1 x VGA ¦ 1 x DVI-D ¦ 4 x USB 3.2 Gen 1 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB 3.2 Gen 2 |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x audio - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up: | Wake on LAN (WOL) |
| Hardware Features: | Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, Turbo LAN, ASUS Fan Xpert 2+, TUF LANGuard, ASUS Overvoltage Protection, ASUS TUF Protection, ASUS Aura Sync, Armoury Crate, ASUS SafeSlot Core+ |
| Miscellaneous | |
| Included Accessories: | I/O back cover, 2 x M.2 screws, TUF stickers |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, PC Cleaner, ASUS EZ Flash 3, WinRAR, Norton AntiVirus (60 days trial), ASUS TUF GAMING CPU-Z |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
TUF Gaming A520M-Plus distills essential elements of the advanced AMD platform and combines them with game-ready features and proven durability. With an upgraded power solution and a comprehensive set of cooling features, this motherboard delivers rock-solid performance with unwavering gaming stability.
- AMD AM4 socket
- Comprehensive cooling
- Made for online gaming
- Aura Sync RGB lighting
