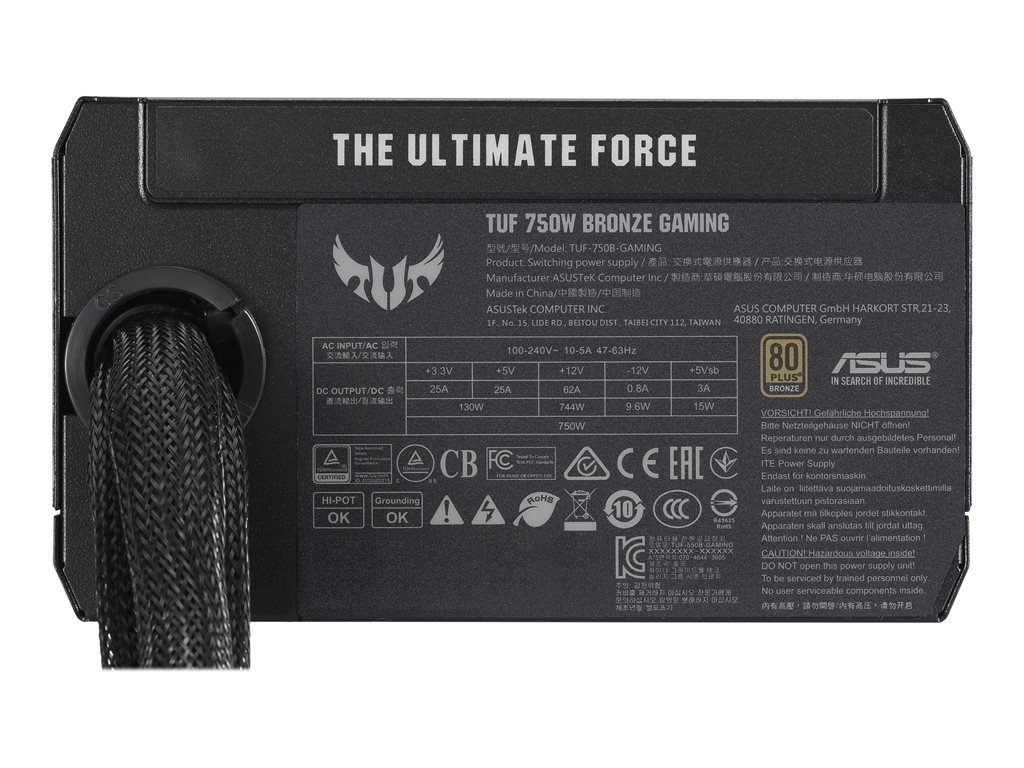

ASUS TUF-GAMING-750B - power supply - 750 Watt

SKU 90YE00D0-B0NA00

Product Description:	ASUS TUF-GAMING-750B - power supply - 750 Watt
Device Type:	Power supply - internal
Specification Compliance:	ATX12V / EPS12V
80 PLUS Certification:	80 PLUS Bronze
Weight:	2.18 kg
Input Voltage:	AC 100-240 V
Output Voltage:	+3.3, +5, ±12 V

05-05-2024

Specifications
Description
Accessories

General
Device Type:	Power supply - internal
Specification Compliance:	ATX12V / EPS12V
PSU Form Factor:	ATX

Power Device
Input Voltage:	AC 100-240 V
Power Output Connectors Details:	1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power
Output Voltage:	+3.3, +5, ±12 V
Power Capacity:	750 Watt
Output Current:	+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 62 A ¦ -12V - 0.8 A ¦ +5VSB - 3 A
80 PLUS Certification:	80 PLUS Bronze

Miscellaneous
Included Accessories:	TUF Gaming sticker
Features:	Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, non-modular, Axial-tech fan design, 0db Technology
Compliant Standards:	RoHS

Manufacturer Warranty
Service & Support:	Limited warranty - 6 years

Dimensions & Weight
Width:	15 cm
Depth:	15 cm
Height:	8.6 cm
Weight:	2.18 kg

Dimensions & Weight (Shipping)
Shipping Weight:	2.87 kg

vis mere

TUF Gaming series PSUs bring military-grade components and a robust cooling solution together to create a power platform you can depend on. High-quality capacitors and chokes undergo a myriad of tests, including extreme temperatures and vibration tests, to ensure they meet rigorous military specifications. An Axial-tech fan with a dual ball fan bearing design offers more longevity than other fan types, increasing the overall lifespan of the product. It's the perfect PSU to slot into a TUF Gaming rig or any DIY build designed to power through AAA games for years to come.

Capacitors and chokes pass demanding tests to achieve Military-grade Certification
Dual ball fan bearings can last up to twice as long as sleeve bearing designs
A protective PCB coating protects against moisture, dust, and extreme temperatures
An 80 Plus Bronze Certification is earned with high-quality components that pass rigorous testing
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
0dB technology lets you enjoy light gaming in relative silence
Sleeved cables leave your rig looking tactically clean
80 cm 8-pin CPU connector (EPS 12V)

The technical details come from 3rd party. edgemo is not responsible for any errors.
