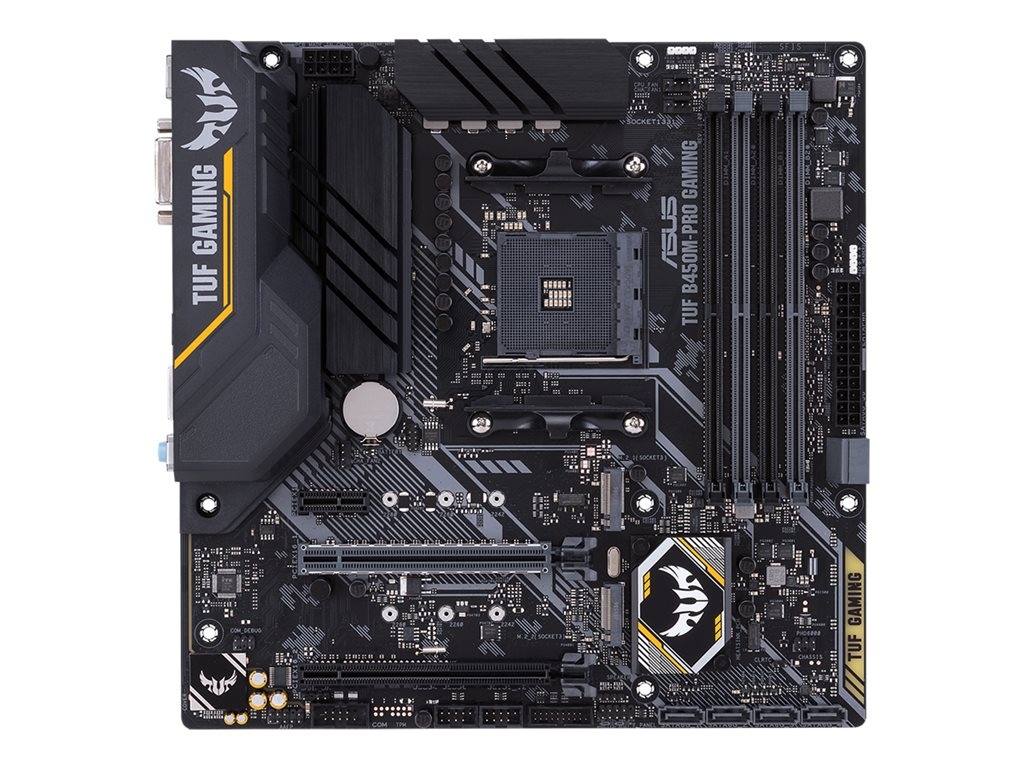

Printers & POSASUS TUF B450M-PRO GAMING - motherboard - micro ATX - Socket AM4 - AMD B450
SKU 90MB10A0-M0EAY0
| Product Description: | ASUS TUF B450M-PRO GAMING - motherboard - micro ATX - Socket AM4 - AMD B450 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD B450 |
| Processor Socket: | 1 x Socket AM4 |
| Compatible Processors: | Ryzen (supports 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics) |
| Max RAM Size: | 64 GB |
| RAM Supported: | 4 DIMM slots - DDR4, ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD B450 |
| Processor Socket: | Socket AM4 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics) |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.), 3533 MHz (O.C.) |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALCS1220A |
| Compliant Standards: | High Definition Audio, DTS Custom |
| LAN | |
| Network Controller: | Realtek RTL8111H |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st and 2nd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics); x4 mode (with Athlon with Radeon Vega Graphics)) ¦ 1 x PCIe 2.0 x1 ¦ 1 x PCIe 2.0 x16 (x4 mode) |
| Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 |
| Interfaces: | 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen1 |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ Speaker - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 support |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS DIGI+ VRM, Fanless Design Heatsink, AMD CrossFireX technology support, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, TUF LANGuard, ASUS Overvoltage Protection, TUF Components, AURA RGB Lighting Control, ASUS SafeSlot, ASUS TUF Protection, AMD StoreMI technology, TUF Gaming Armor |
| Miscellaneous | |
| Included Accessories: | 1 x M.2 screw, I/O back cover, TUF stickers |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, PC Cleaner |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with highly durable components, these motherboards deliver unwavering stability for gaming sessions that last as long as you demand.
- Realtek S1200A codec features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
- Exclusive DTS Custom audio delivers positional cues to stereo headphones, helping you pinpoint enemies and action
- GPU temperature sensing and Fan Xpert 2+ ensure every fan achieves the best balance of cooling performance and acoustics
- TUF protection: SafeSlot, ESD Guards, DDR4 overvoltage protection, Digi+ VRM, and stainless steel back I/O for long-term reliability
- Military-grade TUF components: TUF LANGuard, TUF chokes, TUF capacitors, and TUF MOSFETs for maximum durability
- Aura Sync RGB: synchronize LED lighting with a vast portfolio of compatible PC gear
The technical details come from 3rd party. edgemo is not responsible for any errors.
