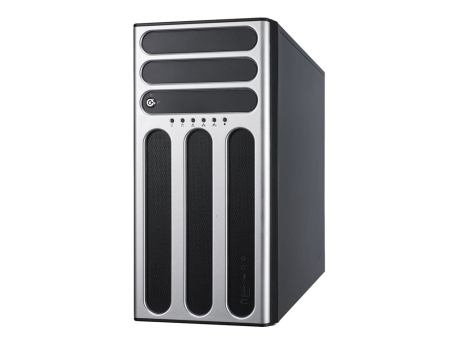

ASUS TS700-E9-RS8 - tower no CPU - 0 GB - no HDD

SKU 90SF00K1-M00360

Product Description:	ASUS TS700-E9-RS8 - tower no CPU - 0 GB - no HDD
Type:	Server - tower
Height (Rack Units):	5U
Server Scalability:	2-way
Processor:	No CPU
Processor Socket:	LGA3647-P0 Socket
RAM:	0 GB (installed) / 1536 GB (max) - DDR4 SDRAM

09-01-2025

Specifications
Description
Accessories

General
Type:	Server
Product Form Factor:	Tower - 5U
Server Scalability:	2-way
Front Accessible Bays Qty:	3
Hot-Swap Bays Qty:	8

Processor / Chipset
CPU:	No CPU
Max CPU Qty:	2
CPU Upgradability:	Upgradable
CPU Socket:	LGA3647-P0 Socket
Chipset Type:	Intel C621

RAM
Installed Size:	0 GB (installed) / 1536 GB (max)
Technology:	DDR4 SDRAM
Form Factor:	DIMM 288-pin
Slots:	12 (Total) / 12 (empty)
Features:	Registered, Load-Reduced DIMM (LRDIMM), 3DS Load-Reduced DIMM (LRDIMM), 6-channel memory architecture
RAM Supported:	768 GB registered ¦ 768 GB Load-Reduced ¦ 1536 GB 3DS Load-Reduced

Hard Drive
Type:	No HDD

Storage Controller
Type:	1 x RAID
Controller Interface Type:	SATA 6Gb/s
Channel Qty:	8
RAID Level:	RAID 0, RAID 1, RAID 5, RAID 10

Storage Controller (2nd)
Type:	1 x SATA - SATA 6Gb/s
Channel Qty:	2

Optical Storage
Type:	DVD-ROM DVD

Monitor
Monitor Type:	None.

Graphics Controller
Graphics Processor:	ASPEED AST2500
Video Memory:	64 MB

Audio Output
Compliant Standards:	High Definition Audio

Networking
Ethernet Ports:	2 x Gigabit Ethernet
Ethernet Controller:	2 x Intel I210-AT
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet

Expansion / Connectivity
Bays:	8 (total) / 8 (free) x hot-swap 3.5" ¦ 3 (total) / 3 (free) x external 5.25"
Slots:	2 (total) / 2 (free) x PCIe 3.0 x16 - full-length, full-height ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - full-length, full-height (dual x8 mode; single card: x16 mode) ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 - full-length, full-height (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x M.2 Card
Interfaces:	2 x LAN (Gigabit Ethernet) ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x TOSLINK ¦ 6 x USB 3.1 Gen 1 (2 front, 4 rear) ¦ 1 x headphones (1 in front) ¦ 2 x microphone (1 front, 1 rear) ¦ 1 x audio line-in ¦ 1 x audio line-out ¦ 1 x audio line-out (centre/subwoofer) ¦ 1 x audio line-out (rear) ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C 3.1 Gen 2

Miscellaneous
Included Accessories:	ASMB9-iKVM Remote Management Card
Compliant Standards:	FCC Class A certified, C-Tick, BSMI

Power
Device Type:	Power supply
Power Redundancy:	Yes
Power Redundancy Scheme:	1+1
Installed Qty:	2
Max Supported Qty:	2
Voltage Required:	AC 120/230 V (50/60 Hz)
Power Provided:	800 Watt
80 PLUS Certification:	80 PLUS Platinum

Operating System / Software
OS Provided:	No operating system

Dimensions & Weight
Width:	21.75 cm
Depth:	54.5 cm
Height:	45.5 cm
Weight:	18.33 kg

Dimensions & Weight (Shipping)
Shipping Weight:	23.12 kg

Environmental Parameters
Min Operating Temperature:	10 °C
Max Operating Temperature:	35 °C

vis mere

TS700-E9-RS8 features a flexible design that fits in both office and data-center environments. Its server rail kit enables easy integration into a data-center rack server, making TS700-E9-RS8 a perfect choice for system administrators who value easy upgradeability and deployment.

Flexible design fits in the office or data center with server rail kit
Redundant Platinum PSU support for high power efficiency
Tool-less component replacement design for hassle-free maintenance
High expandability and scalability
