Printers & POSASUS TS300-E10-PS4 - tower no CPU - 0 GB - no HDD
SKU 90SF00S1-M01570

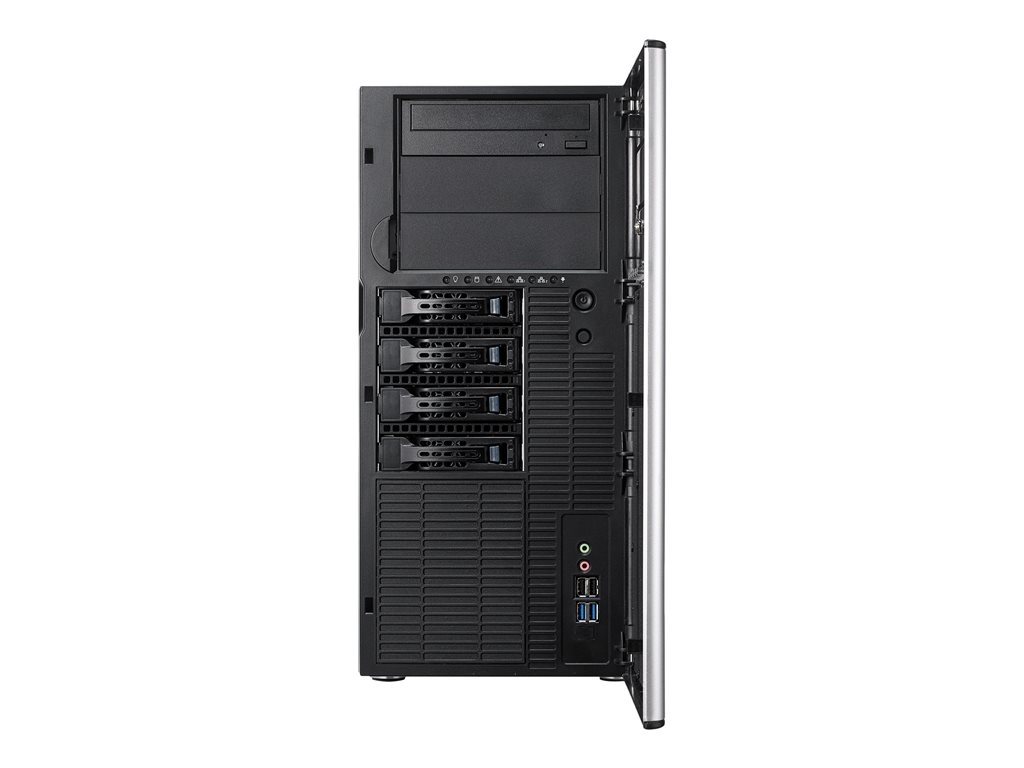

| Product Description: | ASUS TS300-E10-PS4 - tower no CPU - 0 GB - no HDD |
| Type: | Server - tower |
| Height (Rack Units): | 5U |
| Server Scalability: | 1-way |
| Processor: | No CPU |
| Processor Socket: | LGA1151 Socket |
| RAM: | 0 GB (installed) / 128 GB (max) - DDR4 SDRAM |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Tower - 5U |
| Server Scalability: | 1-way |
| Front Accessible Bays Qty: | 3 |
| Hot-Swap Bays Qty: | 4 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 1 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | LGA1151 Socket |
| Chipset Type: | Intel C246 |
| RAM | |
| Installed Size: | 0 GB (installed) / 128 GB (max) |
| Technology: | DDR4 SDRAM |
| Form Factor: | DIMM 288-pin |
| Slots: | 4 (Total) / 4 (empty) |
| Features: | Unbuffered, dual channel memory architecture |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x RAID |
| Controller Interface Type: | SATA 6Gb/s |
| Channel Qty: | 4 |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | ASPEED AST2500 |
| Video Memory: | 64 MB |
| Video Interfaces: | VGA |
| Networking | |
| Ethernet Ports: | 4 x Gigabit Ethernet |
| Ethernet Controller: | 4 x Intel I210-AT |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Bays: | 4 (total) / 4 (free) x hot-swap 2.5" / 3.5" shared ¦ 3 (total) / 3 (free) x external 5.25" |
| Slots: | 1 (total) / 1 (free) x PCIe 3.0 x16 (x16/x8 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (x4 mode) ¦ 2 (total) / 2 (free) x M.2 Card - 22110 ¦ 1 (total) / 1 (free) x PCI ¦ 1 (total) / 1 (free) x MIO |
| Interfaces: | 4 x LAN (Gigabit Ethernet) ¦ 1 x management - RJ-45 ¦ 2 x USB 2.0 (2 in front) ¦ 1 x VGA ¦ 1 x serial ¦ 4 x USB 3.2 Gen 1 (2 front, 2 rear) ¦ 1 x USB - Type A (1 internal) ¦ 2 x USB 3.2 Gen 2 |
| Miscellaneous | |
| Compliant Standards: | BSMI, FCC Class A certified |
| Power | |
| Device Type: | Power supply |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Power Provided: | 500 Watt |
| 80 PLUS Certification: | 80 PLUS Gold |
| Operating System / Software | |
| OS Provided: | No operating system |
| Dimensions & Weight | |
| Width: | 21.75 cm |
| Depth: | 54.5 cm |
| Height: | 45.5 cm |
| Weight: | 15 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 18.9 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
TS300-E10-PS4 features PCIe slots to expand I/O capacity and one MIO slot for professional and entertainment use. In addition, one PCI slot is designed for the usage availability of legacy PCI devices.
- Maximize I/O performance and data protection
- Tool-less component replacement design for hassle-free maintenance
The technical details come from 3rd party. edgemo is not responsible for any errors.
