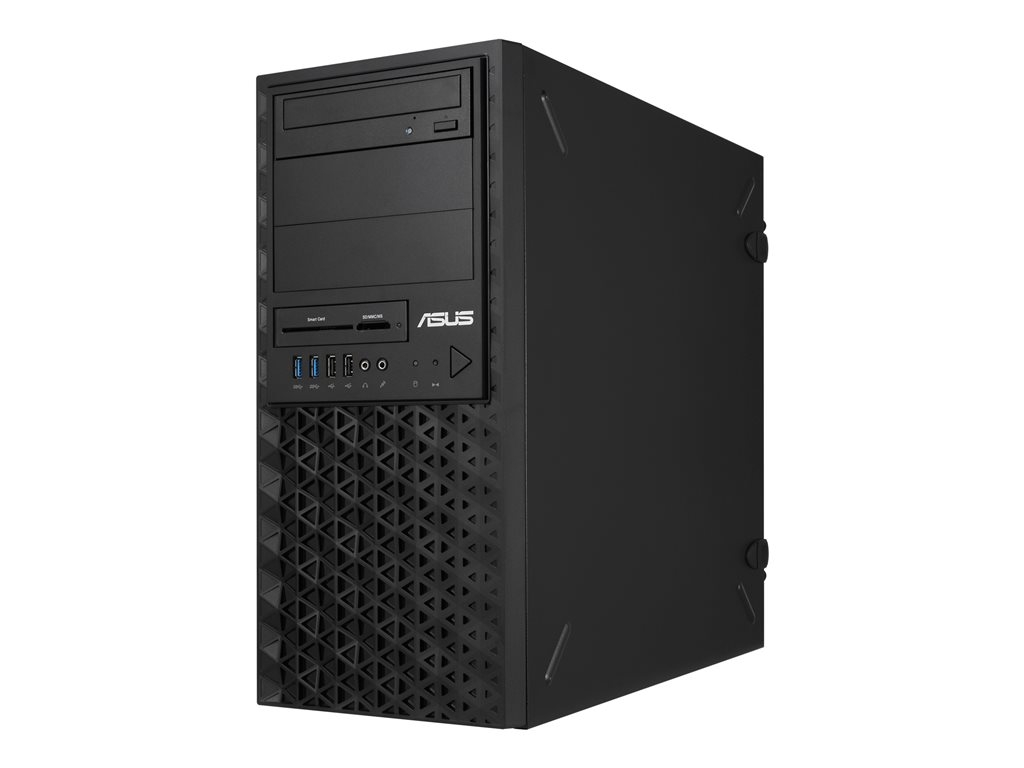

Printers & POSASUS TS100-E11-PI4 - tower no CPU - 0 GB - no HDD
SKU 90SF02N1-M000Z0
| Product Description: | ASUS TS100-E11-PI4 - tower no CPU - 0 GB - no HDD |
| Type: | Server - tower |
| Server Scalability: | 1-way |
| Processor: | No CPU |
| Processor Socket: | LGA1200 Socket |
| RAM: | 0 GB (installed) / 128 GB (max) - DDR4 SDRAM - ECC |
| Storage Controller: | SATA (SATA 6Gb/s) |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Tower |
| Server Scalability: | 1-way |
| Internal Bays Qty: | 4 |
| Front Accessible Bays Qty: | 2 |
| Colour: | Black |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 1 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | LGA1200 Socket |
| Chipset Type: | Intel C256 |
| RAM | |
| Installed Size: | 0 GB (installed) / 128 GB (max) |
| Technology: | DDR4 SDRAM - ECC |
| Form Factor: | DIMM 288-pin |
| Slots: | 4 (Total) / 4 (empty) |
| Features: | Unbuffered, dual channel memory architecture |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x SATA |
| Controller Interface Type: | SATA 6Gb/s |
| Channel Qty: | 8 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | ASPEED AST2600 |
| Video Memory: | 64 MB |
| Video Interfaces: | VGA, HDMI |
| Networking | |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Ethernet Controller: | 2 x Intel I210-AT |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Bays: | 2 (total) / 2 (free) x internal 3.5" ¦ 1 (total) / 1 (free) x internal 2.5" ¦ 1 (total) / 1 (free) x external 5.25" |
| Slots: | 1 (total) / 1 (free) x PCIe 4.0 x16 ¦ 2 (total) / 2 (free) x PCIe 3.0 x8 (x4 mode) ¦ 1 (total) / 1 (free) x PCIe 4.0 x8 ¦ 2 (total) / 2 (free) x M.2 Card - 2242/2260/2280/22110 |
| Interfaces: | 1 x headphones (1 in front) ¦ 2 x LAN (Gigabit Ethernet) (2 rear) ¦ 4 x USB 2.0 (2 front, 2 rear) ¦ 1 x VGA (1 rear) ¦ 1 x PS/2 keyboard / mouse ¦ 4 x USB 3.0 (2 front, 2 rear) ¦ 1 x microphone (1 front, 1 rear) ¦ 2 x USB 3.1 (2 rear) |
| Power | |
| Device Type: | Power supply |
| Voltage Required: | (50 - 60 Hz) |
| Power Provided: | 300 Watt |
| 80 PLUS Certification: | 80 PLUS Bronze |
| Operating System / Software | |
| OS Provided: | No operating system |
| Dimensions & Weight | |
| Width: | 19 cm |
| Depth: | 43.5 cm |
| Height: | 42.3 cm |
| Weight: | 11.6 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 14.7 kg |
The technical details come from 3rd party. edgemo is not responsible for any errors.
