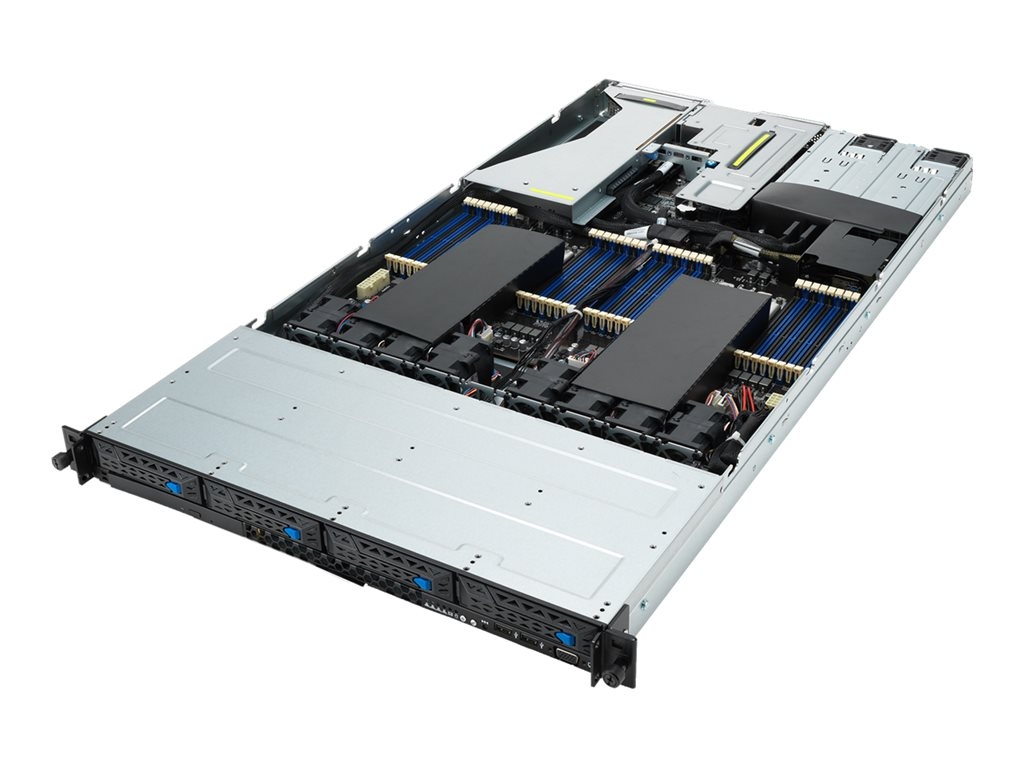

Printers & POSASUS RS700A-E11-RS12U - rack-mountable no CPU - 0 GB - no HDD
SKU 90SF01E2-M00650
| Product Description: | ASUS RS700A-E11-RS12U - rack-mountable no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 1U |
| Server Scalability: | 2-way |
| Processor: | No CPU |
| Processor Socket: | Socket SP3 |
| RAM: | 0 GB (installed) / 4096 GB (max) - DDR4 SDRAM |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 1U |
| Server Scalability: | 2-way |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 2 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | Socket SP3 |
| RAM | |
| Installed Size: | 0 GB (installed) / 4096 GB (max) |
| Technology: | DDR4 SDRAM |
| Form Factor: | DIMM 288-pin |
| Slots: | 32 (Total) / 32 (empty) |
| Features: | Registered, Load-Reduced DIMM (LRDIMM), 3DS Load-Reduced DIMM (LRDIMM), 8-channel memory architecture |
| RAM Supported: | 4096 GB 3DS Load-Reduced |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x SATA |
| Controller Interface Type: | SATA 6Gb/s |
| Channel Qty: | 12 |
| Storage Controller (2nd) | |
| Type: | 1 x NVMe |
| Controller Interface Type: | PCI Express (NVMe) |
| Channel Qty: | 12 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | ASPEED AST2600 |
| Video Memory: | 64 MB |
| Video Interfaces: | VGA |
| Networking | |
| Ethernet Ports: | 2 x 10 Gigabit Ethernet |
| Ethernet Controller: | Intel X710-AT2 |
| Data Link Protocol: | 10 Gigabit Ethernet |
| Features: | KVM over IP support |
| Expansion / Connectivity | |
| Bays: | 12 (total) / 12 (free) x hot-swap 2.5" |
| Slots: | 1 (total) / 1 (free) x PCIe 4.0 x16 - full-length, full-height ¦ 1 (total) / 0 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 - low-profile (x16/x8 mode) ¦ 2 (total) / 2 (free) x M.2 Card |
| Interfaces: | 2 x LAN (10Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 1 ¦ 1 x VGA ¦ 1 x management (NIC) - RJ-45 |
| Miscellaneous | |
| Included Accessories: | ASMB10-iKVM Remote Management Card |
| Compliant Standards: | FCC Class A certified, BSMI |
| Power | |
| Device Type: | Power supply |
| Installed Qty: | 2 |
| Max Supported Qty: | 2 |
| Voltage Required: | AC 100-127/200-240 V (50/60 Hz) |
| Power Provided: | 1600 Watt |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Operating System / Software | |
| OS Provided: | No operating system |
| Dimensions & Weight | |
| Width: | 44.9 cm |
| Depth: | 84.25 cm |
| Height: | 4.385 cm |
| Weight: | 18.85 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 23.89 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
Discover the ASUS RS700A-E11-RS12U, a rack-mountable server designed to meet the demands of today's dynamic business environments. Engineered for scalability and performance, this server supports up to 2 CPUs and offers 2-way server scalability, making it a suitable choice for growing businesses. With 12 hot-swap storage bays, it provides flexible storage options, supporting both SATA and PCI Express interfaces to accommodate a wide range of storage needs.
This server is equipped with 2 x 10 Gigabit Ethernet ports, ensuring high-speed network connectivity and efficient data transfer. The inclusion of an Intel X710-AT2 controller further enhances its networking capabilities. For memory-intensive applications, it features 32 DIMM slots with support for up to 4096 GB of DDR4 SDRAM, catering to the most demanding workloads with ease.
Efficiency is at the heart of the ASUS RS700A-E11-RS12U, featuring a dual 1600 watts power supply with 80 PLUS Platinum certification. This not only ensures reliable power management but also contributes to reduced operational costs and environmental sustainability. Whether you're expanding your data center or setting up a new one, this server offers the performance, flexibility, and efficiency you need.
This server is equipped with 2 x 10 Gigabit Ethernet ports, ensuring high-speed network connectivity and efficient data transfer. The inclusion of an Intel X710-AT2 controller further enhances its networking capabilities. For memory-intensive applications, it features 32 DIMM slots with support for up to 4096 GB of DDR4 SDRAM, catering to the most demanding workloads with ease.
Efficiency is at the heart of the ASUS RS700A-E11-RS12U, featuring a dual 1600 watts power supply with 80 PLUS Platinum certification. This not only ensures reliable power management but also contributes to reduced operational costs and environmental sustainability. Whether you're expanding your data center or setting up a new one, this server offers the performance, flexibility, and efficiency you need.
- GPU-optimized design allows one dual-slot or two single-slot GPUs for AI workloads
- Up to 12 all-flash NVMe drives on front panel is designed for high storage throughput performance
- Up to three PCIe 4.0 slots to enable higher bandwidth and improved data-transfer rates
- Flexible cooling solution achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
- High power efficiency with redundant 1600 W 80 Plus Titanium and Platinum power supplies
The technical details come from 3rd party. edgemo is not responsible for any errors.
