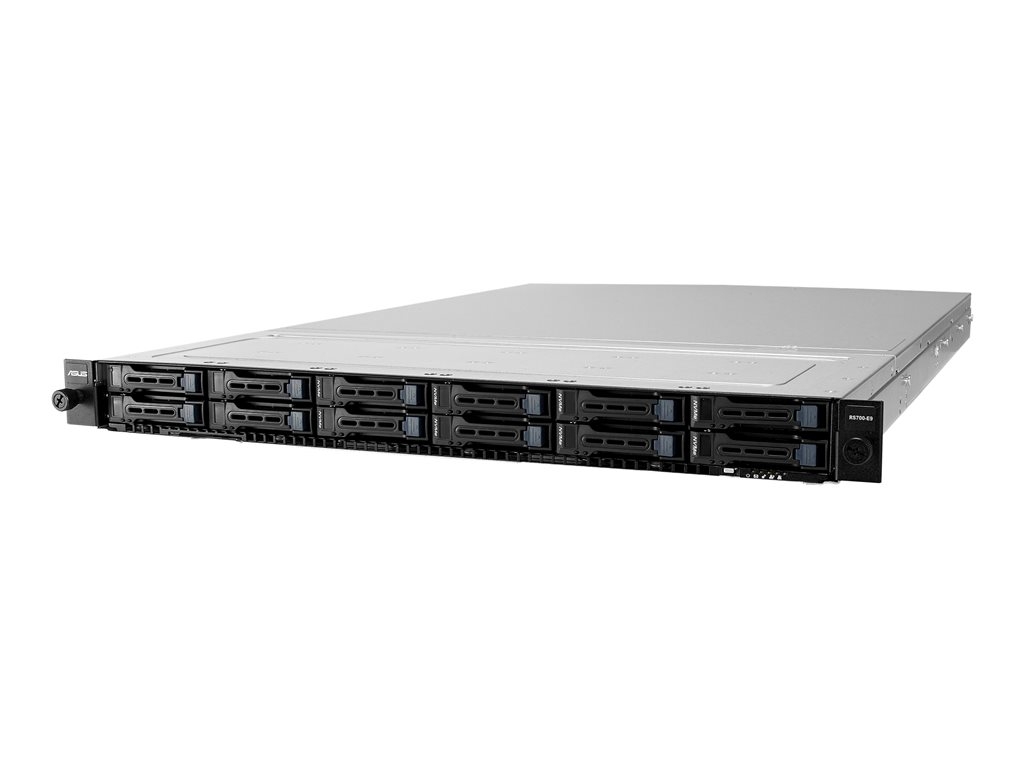

Printers & POSASUS RS700-E9-RS4 - rack-mountable no CPU - 0 GB - no HDD
SKU 90SF0091-M00580
| Product Description: | ASUS RS700-E9-RS4 - rack-mountable no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 1U |
| Server Scalability: | 2-way |
| Processor: | No CPU |
| Processor Socket: | Socket P |
| RAM: | 0 GB (installed) / 3072 GB (max) - DDR4 SDRAM |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 1U |
| Server Scalability: | 2-way |
| Front Accessible Bays Qty: | 1 |
| Hot-Swap Bays Qty: | 4 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 2 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | Socket P |
| Chipset Type: | Intel C621 |
| RAM | |
| Installed Size: | 0 GB (installed) / 3072 GB (max) |
| Technology: | DDR4 SDRAM |
| Form Factor: | DIMM 288-pin |
| Slots: | 24 (Total) / 24 (empty) |
| Features: | Registered, Load-Reduced DIMM (LRDIMM), 3DS Load-Reduced DIMM (LRDIMM), 6-channel memory architecture |
| RAM Supported: | 3072 GB 3DS Load-Reduced |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x RAID |
| Controller Interface Type: | SATA 6Gb/s |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10 |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | ASPEED AST2500 |
| Video Memory: | 64 MB |
| Video Interfaces: | VGA |
| Networking | |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Ethernet Controller: | Intel I350-BT2 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Bays: | 4 (total) / 4 (free) x hot-swap 3.5" ¦ 1 external 5.25" Slim Line |
| Slots: | 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, low-profile (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 / Open Compute Project mezzanine (OCP) 2.0 ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, low-profile ¦ 2 (total) / 2 (free) x M.2 Card - 2242/2260/2280/22110 |
| Interfaces: | 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 4 x USB 3.0 (2 front, 2 rear) ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x management (NIC) - RJ-45 |
| Miscellaneous | |
| Compliant Standards: | FCC Class A certified, C-Tick, BSMI |
| Power | |
| Device Type: | Power supply |
| Max Supported Qty: | 2 |
| Voltage Required: | AC 120/230 V (47 - 63 Hz) |
| Power Provided: | 800 Watt |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Operating System / Software | |
| OS Provided: | No operating system |
| Dimensions & Weight | |
| Width: | 44.4 cm |
| Depth: | 68.6 cm |
| Height: | 4.4 cm |
| Weight: | 16.5 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
RS700-E9-RS4 delivers incredible 1U server performance, packing incredible power into minimal space. An integrated I/O controller on the processor eliminates data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.
- User-friendly design for easier server maintenance
- Advanced I/O support for 3+1 expandability
- Expandable storage for faster transfer speeds
The technical details come from 3rd party. edgemo is not responsible for any errors.
