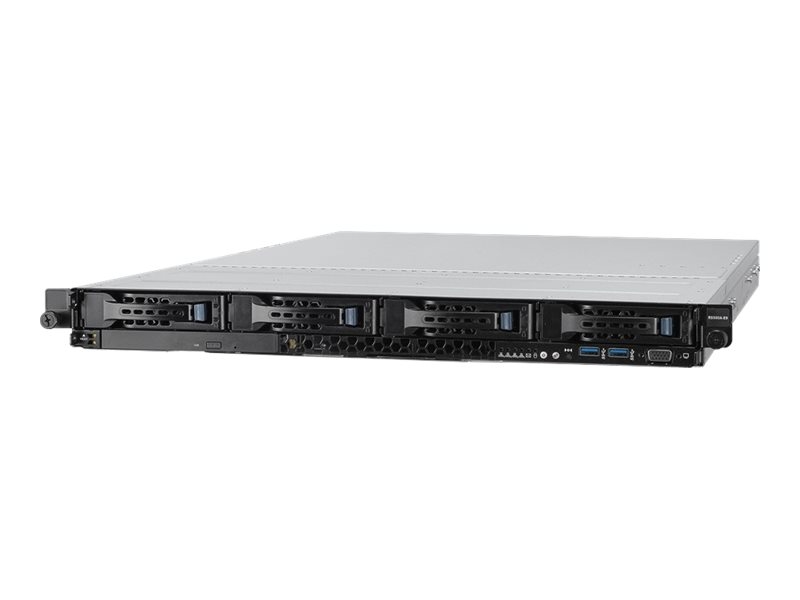

Printers & POSASUS RS500A-E9-RS4-U - rack-mountable no CPU - 0 GB - no HDD
SKU 90SF00M1-M00180
| Product Description: | ASUS RS500A-E9-RS4-U - rack-mountable no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 1U |
| Server Scalability: | 1-way |
| Processor: | No CPU |
| Processor Socket: | Socket SP3 |
| RAM: | 0 GB (installed) / 2048 GB (max) - DDR4 SDRAM |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 1U |
| Server Scalability: | 1-way |
| Front Accessible Bays Qty: | 1 |
| Hot-Swap Bays Qty: | 4 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 1 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | Socket SP3 |
| RAM | |
| Installed Size: | 0 GB (installed) / 2048 GB (max) |
| Technology: | DDR4 SDRAM |
| Form Factor: | DIMM 288-pin |
| Slots: | 16 (Total) / 16 (empty) |
| Features: | Registered, Load-Reduced DIMM (LRDIMM), 3DS Load-Reduced DIMM (LRDIMM) |
| RAM Supported: | 2048 GB Load-Reduced |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x SATA |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | ASPEED AST2500 |
| Video Memory: | 64 GB |
| Video Interfaces: | VGA |
| Networking | |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Ethernet Controller: | Intel I350-AM2 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Bays: | 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 4 (total) / 4 (free) x hot-swap 2.5" / 3.5" shared |
| Slots: | 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 / Open Compute Project mezzanine (OCP) 2.0 ¦ 1 (total) / 1 (free) x M.2 Card |
| Interfaces: | 4 x USB 3.0 (2 front, 2 rear) ¦ 2 x LAN (Gigabit Ethernet) ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x management |
| Miscellaneous | |
| Included Accessories: | ASMB9-iKVM Remote Management Card |
| Compliant Standards: | FCC Class A certified, BSMI |
| Power | |
| Device Type: | Power supply |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Installed Qty: | 2 |
| Max Supported Qty: | 2 |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Provided: | 770 Watt |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Dimensions & Weight | |
| Width: | 44.4 cm |
| Depth: | 61.6 cm |
| Height: | 4.4 cm |
| Weight: | 11 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 17 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
RS500A-E9-RS4-U is a rack-optimized 1U server designed for NVMe storage expandability and power efficiency. It comes with 16 DIMM slots and packs incredible power in minimal space.
- 180W CPU with 16 DIMM support
- High power-efficiency with redundant 770W 80 Plus Platinum power supply
- Designed for flexible storage with four NVMe, SAS or SATA drives
- Ultrafast connectivity with OCP 2.0 Mezzanine card support
- One M.2 slot accommodate 22110-size SSDs for faster boot speed
- Exclusive Thermal Radar energy-efficiency technology reduces fan power consumption by up to 20%
- Easy maintenance and debugging with internal USB 3.0 port and microSD card support for easier access
The technical details come from 3rd party. edgemo is not responsible for any errors.
