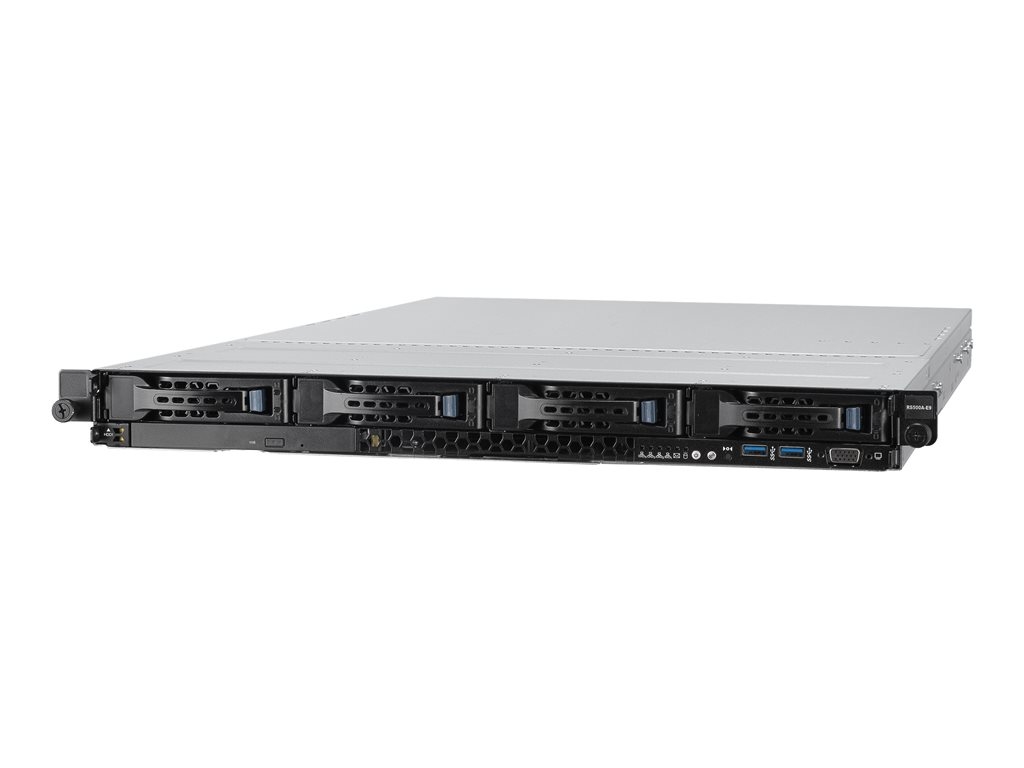

ASUS RS500A-E9-RS4 - rack-mountable no CPU - 0 GB - no HDD

SKU 90SF00M1-M00170

Product Description:	ASUS RS500A-E9-RS4 - rack-mountable no CPU - 0 GB - no HDD
Type:	Server - rack-mountable
Height (Rack Units):	1U
Server Scalability:	1-way
Processor:	No CPU
Processor Socket:	Socket SP3
RAM:	0 GB (installed) / 2048 GB (max) - DDR4 SDRAM

11-12-2024

Specifications
Description
Accessories

General
Type:	Server
Product Form Factor:	Rack-mountable - 1U
Server Scalability:	1-way
Front Accessible Bays Qty:	1
Hot-Swap Bays Qty:	4

Processor / Chipset
CPU:	No CPU
Max CPU Qty:	1
CPU Upgradability:	Upgradable
CPU Socket:	Socket SP3

RAM
Installed Size:	0 GB (installed) / 2048 GB (max)
Technology:	DDR4 SDRAM
Form Factor:	DIMM 288-pin
Slots:	16 (Total) / 16 (empty)
Features:	Registered, Load-Reduced DIMM (LRDIMM), 3DS Load-Reduced DIMM (LRDIMM)
RAM Supported:	2048 GB Load-Reduced

Hard Drive
Type:	No HDD

Storage Controller
Type:	1 x SATA

Storage Controller (2nd)
Type:	1 x NVMe

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Graphics Processor:	ASPEED AST2500
Video Memory:	64 GB
Video Interfaces:	VGA

Networking
Ethernet Ports:	2 x Gigabit Ethernet
Ethernet Controller:	Intel I350-AM2
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet

Expansion / Connectivity
Bays:	1 (total) / 1 (free) x external 5.25" Slim Line ¦ 4 (total) / 4 (free) x hot-swap 2.5" / 3.5" shared
Slots:	1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 / Open Compute Project mezzanine (OCP) 2.0 ¦ 1 (total) / 1 (free) x M.2 Card
Interfaces:	4 x USB 3.0 (2 front, 2 rear) ¦ 2 x LAN (Gigabit Ethernet) ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x management

Miscellaneous
Included Accessories:	ASMB9-iKVM Remote Management Card
Compliant Standards:	FCC Class A certified, BSMI

Power
Device Type:	Power supply
Power Redundancy:	Yes
Power Redundancy Scheme:	1+1
Installed Qty:	2
Max Supported Qty:	2
Voltage Required:	AC 120/230 V (50/60 Hz)
Power Provided:	770 Watt
80 PLUS Certification:	80 PLUS Platinum

Operating System / Software
Software:	ASUS Control Center

Dimensions & Weight
Width:	44.4 cm
Depth:	61.6 cm
Height:	4.4 cm
Weight:	11 kg

Dimensions & Weight (Shipping)
Shipping Weight:	17 kg

Environmental Parameters
Min Operating Temperature:	10 °C
Max Operating Temperature:	35 °C

vis mere

RS500A-E9-RS4 is built on AMD EPYC platform to deliver incredible server performance. With up to 32 cores per CPU and up to 64 threads, RS500A-E9-RS4 packs incredible power in minimal space. 16 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor
RS500A-E9-RS4 features one PCIe x16 and one PCIe x8 slots to deliver parallel computing power and one OCP 2.0 Mezzanine connector to support high-speed LAN card. This flexibility supports diverse storage and networking applications and ensures future expandability and high scalability in a 1U server. RS500-E9-RS4 fits four 3.5-inch hot-swappable 12Gbps SAS or 6Gbps SATA drives. One M.2 slot accommodate 22110-size SSDs with support for additional OS storage and PCIe Gen3 x4 bandwidth - 5.3X faster than 6 Gb/s SATA III - for faster boot speeds.

High power-efficiency with redundant 770W 80 Plus Platinum power supply
Designed for flexible storage with four SAS or SATA drives
Ultrafast connectivity with OCP 2.0 Mezzanine card support
One M.2 slot accommodate 22110-size SSDs for faster boot speed
Exclusive Thermal Radar energy-efficiency technology reduces fan power consumption by up to 20%
Easy maintenance and debugging with internal USB 3.0 port and microSD card support for easier access
Complete IT infrastructure management with ASMB9 out-of-band remote management and in-band ASUS Control Center
