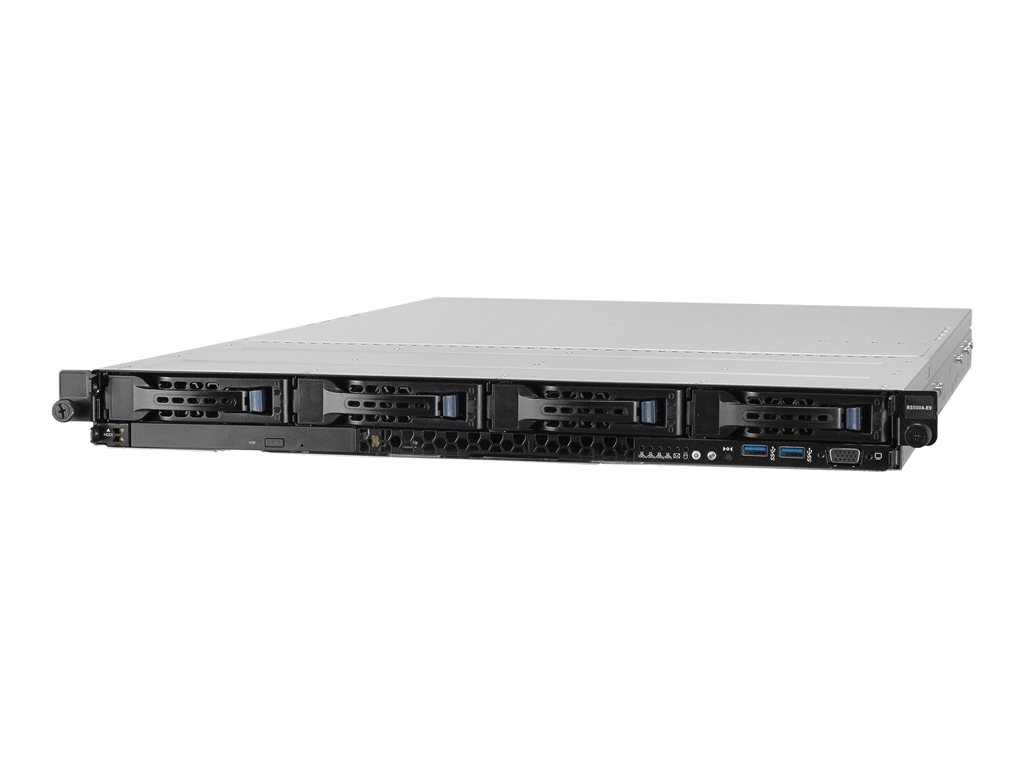

ASUS RS500A-E9-PS4 - rack-mountable no CPU - 0 GB - no HDD

SKU 90SF00M1-M00150

Product Description:	ASUS RS500A-E9-PS4 - rack-mountable no CPU - 0 GB - no HDD
Type:	Server - rack-mountable
Height (Rack Units):	1U
Server Scalability:	1-way
Processor:	No CPU
Processor Socket:	Socket SP3
RAM:	0 GB (installed) / 2048 GB (max) - DDR4 SDRAM

01-12-2024

Specifications
Description
Accessories

General
Type:	Server
Product Form Factor:	Rack-mountable - 1U
Server Scalability:	1-way
Front Accessible Bays Qty:	1
Hot-Swap Bays Qty:	4

Processor / Chipset
CPU:	No CPU
Max CPU Qty:	1
CPU Upgradability:	Upgradable
CPU Socket:	Socket SP3

RAM
Installed Size:	0 GB (installed) / 2048 GB (max)
Technology:	DDR4 SDRAM
Form Factor:	DIMM 288-pin
Slots:	16 (Total) / 16 (empty)
Features:	Registered, Load-Reduced DIMM (LRDIMM), 3DS Load-Reduced DIMM (LRDIMM)
RAM Supported:	2048 GB Load-Reduced

Hard Drive
Type:	No HDD

Storage Controller
Type:	1 x SATA

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Graphics Processor:	ASPEED AST2500
Video Memory:	64 GB
Video Interfaces:	VGA

Networking
Ethernet Ports:	2 x Gigabit Ethernet
Ethernet Controller:	Intel I350-AM2
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet

Expansion / Connectivity
Bays:	1 (total) / 1 (free) x external 5.25" Slim Line ¦ 4 (total) / 4 (free) x hot-swap 2.5" / 3.5" shared
Slots:	1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 / Open Compute Project mezzanine (OCP) 2.0 ¦ 1 (total) / 1 (free) x M.2 Card
Interfaces:	4 x USB 3.0 (2 front, 2 rear) ¦ 2 x LAN (Gigabit Ethernet) ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x management

Miscellaneous
Included Accessories:	ASMB9-iKVM Remote Management Card
Compliant Standards:	FCC Class A certified, BSMI

Power
Device Type:	Power supply
Voltage Required:	AC 120/230 V (50/60 Hz)
Power Provided:	650 Watt
80 PLUS Certification:	80 PLUS Platinum

Operating System / Software
Software:	ASUS Control Center

Dimensions & Weight
Width:	44.4 cm
Depth:	61.6 cm
Height:	4.4 cm
Weight:	10 kg

Dimensions & Weight (Shipping)
Shipping Weight:	16 kg

Environmental Parameters
Min Operating Temperature:	10 °C
Max Operating Temperature:	35 °C

vis mere

RS500A-E9-PS4 is built on AMD EPYC platform to deliver incredible server performance. With up to 32 cores per CPU and up to 64 threads, RS500A-E9-PS4 packs incredible power in minimal space. 16 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor eliminates the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.
RS500A-E9-PS4 features one PCIe x16 and one PCIe x8 slots to deliver parallel computing power and one OCP 2.0 Mezzanine connector to support high-speed LAN card. This flexibility supports diverse storage and networking applications and ensures future expandability and high scalability in a 1U server. RS500A-E9-PS4 fits four 3.5-inch hot-swappable 12Gbps SAS or 6Gbps SATA drives. One M.2 slot accommodate 22110-size SSDs with support for additional OS storage and PCIe Gen3 x4 bandwidth - 5.3X faster than 6 Gb/s SATA III - for faster boot speeds.

Designed for flexible storage with four SAS or SATA drives
Ultrafast connectivity with OCP 2.0 Mezzanine card support
One M.2 slot accommodate 22110-size SSDs for faster boot speed
Exclusive Thermal Radar energy-efficiency technology reduces fan power consumption by up to 20%
Easy maintenance and debugging with internal USB 3.0 port and microSD card support for easier access
Complete IT infrastructure management with ASMB9 out-of-band remote management and in-band ASUS Control Center
