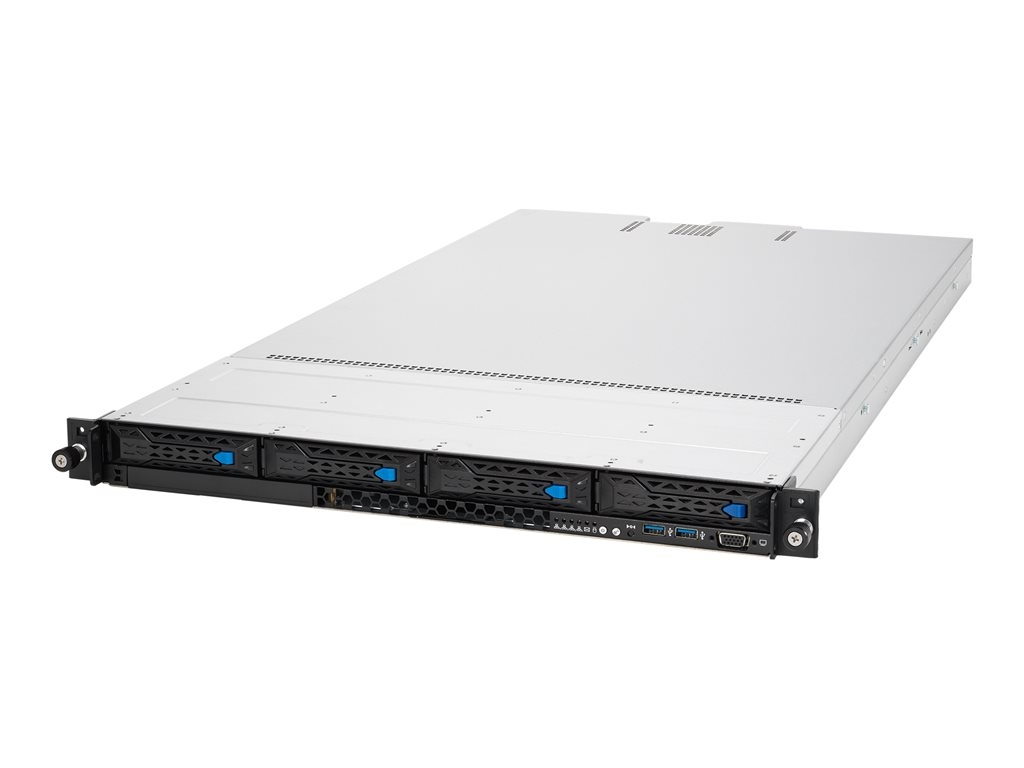

ASUS RS500A-E11-RS4U - rack-mountable no CPU - 0 GB - no HDD

SKU 90SF01R1-M00330

Product Description:	ASUS RS500A-E11-RS4U - rack-mountable no CPU - 0 GB - no HDD
Type:	Server - rack-mountable
Height (Rack Units):	1U
Server Scalability:	1-way
Processor:	No CPU
Processor Socket:	Socket P
RAM:	0 GB (installed) / 2048 GB (max) - DDR4 SDRAM

Not in stock

Specifications
Description
Accessories

General
Type:	Server
Product Form Factor:	Rack-mountable - 1U
Server Scalability:	1-way
Hot-Swap Bays Qty:	4

Processor / Chipset
CPU:	No CPU
Max CPU Qty:	1
CPU Upgradability:	Upgradable
CPU Socket:	Socket P

RAM
Installed Size:	0 GB (installed) / 2048 GB (max)
Technology:	DDR4 SDRAM
Form Factor:	DIMM 288-pin
Slots:	16 (Total) / 16 (empty)
Features:	Registered, Load-Reduced DIMM (LRDIMM), 8-channel memory architecture, 3DS Load-Reduced DIMM (LRDIMM)
RAM Supported:	2048 GB registered

Hard Drive
Type:	No HDD

Storage Controller
Type:	1 x NVMe
Controller Interface Type:	PCI Express (NVMe)
Channel Qty:	4

Optical Storage
Type:	No optical drive

Monitor
Monitor Type:	None.

Graphics Controller
Graphics Processor:	ASPEED AST2600
Video Interfaces:	VGA

Networking
Ethernet Ports:	2 x Gigabit Ethernet
Ethernet Controller:	Intel I350-AM2
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Features:	KVM over IP support

Expansion / Connectivity
Bays:	4 (total) / 4 (free) x hot-swap 2.5" / 3.5" shared
Slots:	1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, low-profile ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, low-profile (x8 mode) ¦ 2 (total) / 2 (free) x M.2 Card ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0
Interfaces:	2 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 (2 front, 2 rear) ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x management (NIC) - RJ-45 ¦ 1 x serial

Miscellaneous
Included Accessories:	ASMB10-iKVM Remote Management Card
Compliant Standards:	FCC Class A certified, BSMI

Power
Device Type:	Power supply
Installed Qty:	2
Max Supported Qty:	2
Voltage Required:	AC 100-127/200-240 V (50/60 Hz)
Power Provided:	800 Watt
80 PLUS Certification:	80 PLUS Platinum

Operating System / Software
OS Provided:	No operating system

Dimensions & Weight
Width:	44.9 cm
Depth:	84.25 cm
Height:	4.4 cm
Weight:	16 kg

Dimensions & Weight (Shipping)
Shipping Weight:	21 kg

Environmental Parameters
Min Operating Temperature:	10 °C
Max Operating Temperature:	35 °C

vis mere

The ASUS RS500A-E11-RS4U is designed to meet the demands of modern data-driven environments with its rack-mountable form factor and efficient hot-swap capability that allows for easy maintenance. With four hot-swap bays and sufficient expansion slots, this server is constructed to support various upgrades, offering flexibility in performance enhancement. It comes equipped with an 800-watt power supply and features 80 PLUS Platinum certification, ensuring optimal energy efficiency to help manage operational costs.
Further enhancing its functionality, the server supports KVM over IP, providing seamless management remotely. With a robust architecture supporting DDR4 SDRAM, this server is prepared for demanding applications while allowing for high scalability. Its design is compliant with FCC Class A certification, indicating adherence to safety and performance standards, making it a reliable choice for any business needing dependable server infrastructure.

Four all-flash NVMe drives on front panel to enable extensive storage and high-throughput performance
Up to three PCIe 4.0 slots to enable higher bandwidth and improved data-transfer rates
Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
Air cooling with heaksink achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers
New tool-less design for easy serviceability
