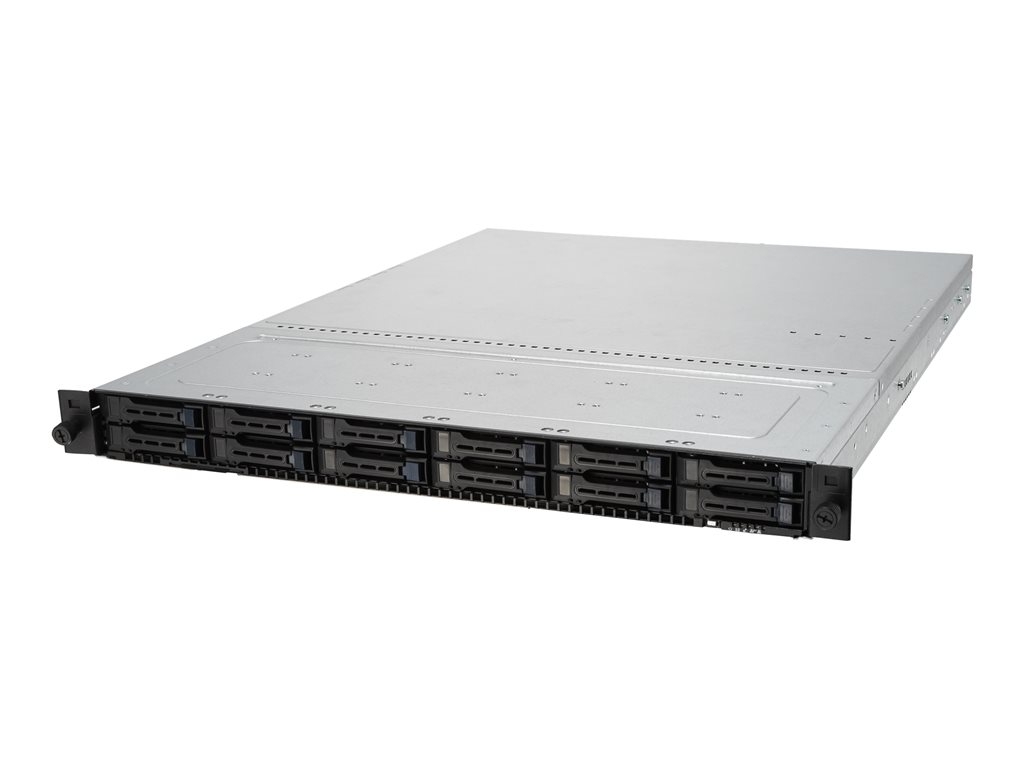

Printers & POSASUS RS500A-E10-RS12U - rack-mountable no CPU - 0 GB - no HDD
SKU 90SF00X1-M00080
| Product Description: | ASUS RS500A-E10-RS12U - rack-mountable no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 1U |
| Server Scalability: | 1-way |
| Processor: | No CPU |
| Processor Socket: | Socket SP3 |
| RAM: | 0 GB (installed) / 2048 GB (max) - DDR4 SDRAM |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 1U |
| Server Scalability: | 1-way |
| Hot-Swap Bays Qty: | 12 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 1 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | Socket SP3 |
| RAM | |
| Installed Size: | 0 GB (installed) / 2048 GB (max) |
| Technology: | DDR4 SDRAM |
| Form Factor: | DIMM 288-pin |
| Slots: | 16 (Total) / 16 (empty) |
| Features: | Registered, Load-Reduced DIMM (LRDIMM), 8-channel memory architecture, 3DS Load-Reduced DIMM (LRDIMM) |
| RAM Supported: | 2048 GB Load-Reduced |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x SATA |
| Storage Controller (2nd) | |
| Type: | 1 x NVMe |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | ASPEED AST2500 |
| Video Memory: | 64 GB |
| Video Interfaces: | VGA |
| Networking | |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Ethernet Controller: | Intel I350-AM2 |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Bays: | 12 (total) / 12 (free) x hot-swap 2.5" |
| Slots: | 1 (total) / 1 (free) x PCIe 4.0 x16 ¦ 1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 2.0 - half-length, full-height ¦ 1 (total) / 1 (free) x M.2 Card - 22110 |
| Interfaces: | 2 x USB 3.0 ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x management ¦ 1 x serial |
| Miscellaneous | |
| Included Accessories: | ASMB9-iKVM Remote Management Card |
| Compliant Standards: | FCC Class A certified |
| Power | |
| Device Type: | Power supply |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Installed Qty: | 2 |
| Max Supported Qty: | 2 |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Provided: | 650 Watt |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Dimensions & Weight | |
| Weight: | 11 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 17 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
To effectively manage the storage demands of growing amounts of data, RS500A-E10-RS12U supports for up to twelve 2.5-inch hot-swap SATA, SAS and NVMe drives in a 1U chassis for flexible expansion for storage. One M.2 slot accommodates 22110-size SSDs with support for additional OS storage and PCIe Gen3 x4 bandwidth - 5.3X faster than 6 Gb/s SATA III - for faster boot speeds.
- Supports up to 16 DIMMs for up to 2 TB of memory
- Flexible storage design with up to twelve 2.5-inch hot-swap SATA, SAS and NVME drives and one M.2 22110 SSDs
- Features two PCI 4.0 lanes with 16 GT/s for next-gen connectivity
- Features ASUS-exclusive Thermal Radar 2.0 technology that automatically adjusts fan curves across various zones
The technical details come from 3rd party. edgemo is not responsible for any errors.
