Printers & POSASUS RS300-E11-RS4 - rack-mountable no CPU - 0 GB - no HDD
SKU 90SF01Y1-M000E0

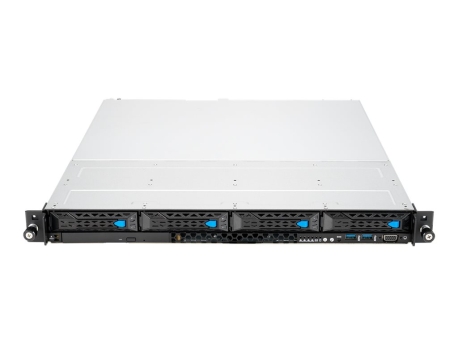

| Product Description: | ASUS RS300-E11-RS4 - rack-mountable no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 1U |
| Server Scalability: | 1-way |
| Processor: | No CPU |
| Processor Socket: | LGA1200 Socket |
| RAM: | 0 GB (installed) / 128 GB (max) - DDR4 SDRAM |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 1U |
| Server Scalability: | 1-way |
| Front Accessible Bays Qty: | 1 |
| Hot-Swap Bays Qty: | 4 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 1 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | LGA1200 Socket |
| Chipset Type: | Intel C252 |
| RAM | |
| Installed Size: | 0 GB (installed) / 128 GB (max) |
| Technology: | DDR4 SDRAM |
| Form Factor: | DIMM 288-pin |
| Slots: | 4 (Total) / 4 (empty) |
| Features: | Unbuffered, dual channel memory architecture |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x SATA |
| Channel Qty: | 6 |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | ASPEED AST2600 |
| Video Memory: | 64 MB |
| Video Interfaces: | VGA |
| Networking | |
| Ethernet Ports: | 2 x Gigabit Ethernet |
| Ethernet Controller: | 2 x Intel I210-AT |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Bays: | 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 4 (total) / 4 (free) x hot-swap 3.5" |
| Slots: | 1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x16 mode (x8 mode if PCI Express 4.0 x8 slot is occupied)) ¦ 1 (total) / 1 (free) x PCIe 4.0 x8 - half-length, half-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x4 |
| Interfaces: | 2 x USB 3.2 Gen 1 (2 in front) ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x management - RJ-45 ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x HDMI ¦ 1 x serial |
| Miscellaneous | |
| Included Accessories: | VROC module |
| Compliant Standards: | FCC Class A certified, BSMI |
| Power | |
| Device Type: | Power supply |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Installed Qty: | 2 |
| Max Supported Qty: | 2 |
| Voltage Required: | AC 100-240 V (50 - 60 Hz) |
| Power Provided: | 450 Watt |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Operating System / Software | |
| OS Provided: | No operating system |
| Dimensions & Weight | |
| Width: | 43.95 cm |
| Depth: | 49.7 cm |
| Height: | 4.4 cm |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
Intel Xeon E-2300 1U server with four DIMM, two NVMe, one M.2 and two PCIe 4.0 slots, dual LAN, 80 PLUS Platinum redundant power supplies, Platform Firmware Resilience (PFR) and ASUS ASMB10-iKVM.
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Up to two PCIe 4.0 slots and one PCIe 3.0 proprietary slot to drive higher bandwidth
- High power efficiency with redundant 450 W 80 PLUS Platinum power supplies
- Dual Intel I210AT Gigabit Ethernet with teaming support
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
The technical details come from 3rd party. edgemo is not responsible for any errors.
