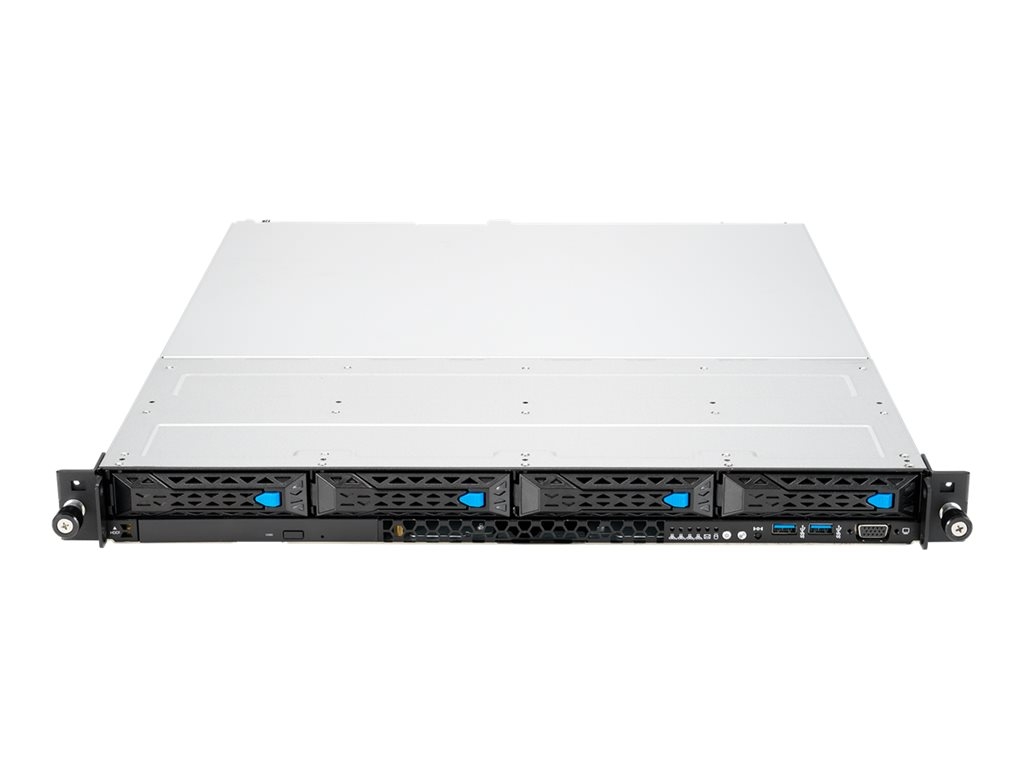

ASUS RS300-E11-PS4 - rack-mountable - no CPU - 0 GB - no HDD

SKU 90SF01Y1-M00050
Product Description:ASUS RS300-E11-PS4 - rack-mountable - no CPU - 0 GB - no HDD
Type:Server - rack-mountable
Height (Rack Units):1U
Server Scalability:1-way
Processor:No CPU
Processor Socket:LGA1200 Socket
RAM:0 GB (installed) / 128 GB (max) - DDR4 SDRAM
03-04-2024
  • Specifications
  • Description
General
Type:Server
Product Form Factor:Rack-mountable - 1U
Server Scalability:1-way
Front Accessible Bays Qty:1
Hot-Swap Bays Qty:4
Processor / Chipset
CPU:No CPU
Max CPU Qty:1
CPU Upgradability:Upgradable
CPU Socket:LGA1200 Socket
Chipset Type:Intel C252
RAM
Installed Size:0 GB / 128 GB (max)
Technology:DDR4 SDRAM
Form Factor:DIMM 288-pin
Slots:4 (Total) / 4 (empty)
Features:Unbuffered, dual channel memory architecture
Hard Drive
Type:No HDD
Storage Controller
Type:1 x SATA
Channel Qty:6
RAID Level:RAID 0, RAID 1, RAID 5, RAID 10
Optical Storage
Type:No optical drive
Monitor
Monitor Type:None.
Graphics Controller
Graphics Processor:ASPEED AST2600
Video Memory:64 MB
Video Interfaces:VGA
Networking
Ethernet Ports:2 x Gigabit Ethernet
Ethernet Controller:2 x Intel I210-AT
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Bays:1 (total) / 1 (free) x external 5.25" Slim Line ¦ 4 (total) / 4 (free) x hot-swap 3.5"
Slots:1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height (x16 mode (x8 mode if PCI Express 4.0 x8 slot is occupied)) ¦ 1 (total) / 1 (free) x PCIe 4.0 x8 - half-length, half-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x4
Interfaces:2 x USB 3.2 Gen 1 (2 in front) ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x management - RJ-45 ¦ 2 x VGA (1 front, 1 rear) ¦ 1 x HDMI ¦ 1 x serial
Miscellaneous
Included Accessories:VROC module
Compliant Standards:FCC Class A certified, BSMI
Power
Device Type:Power supply
Voltage Required:AC 100-240 V (50 - 60 Hz)
Power Provided:350 Watt
80 PLUS Certification:80 PLUS Gold
Operating System / Software
OS Provided:No operating system
Dimensions & Weight
Width:43.95 cm
Depth:49.7 cm
Height:4.4 cm
Environmental Parameters
Min Operating Temperature:10 °C
Max Operating Temperature:35 °C
vis mere
  • Ideal for remote office/branch office (ROBO) use and everyday business environments
  • Four 3.5" or 2.5" hot-swap drives on front panel and one M.2 to enable extensive storage
  • Up to two PCIe 4.0 slots and one PCIe 3.0 proprietary slot to drive higher bandwidth
  • High power efficiency with redundant 450 W 80 PLUS Platinum power supplies
  • Dual Intel I210AT Gigabit Ethernet with teaming support
  • Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency




The technical details come from 3rd party. edgemo is not responsible for any errors.
