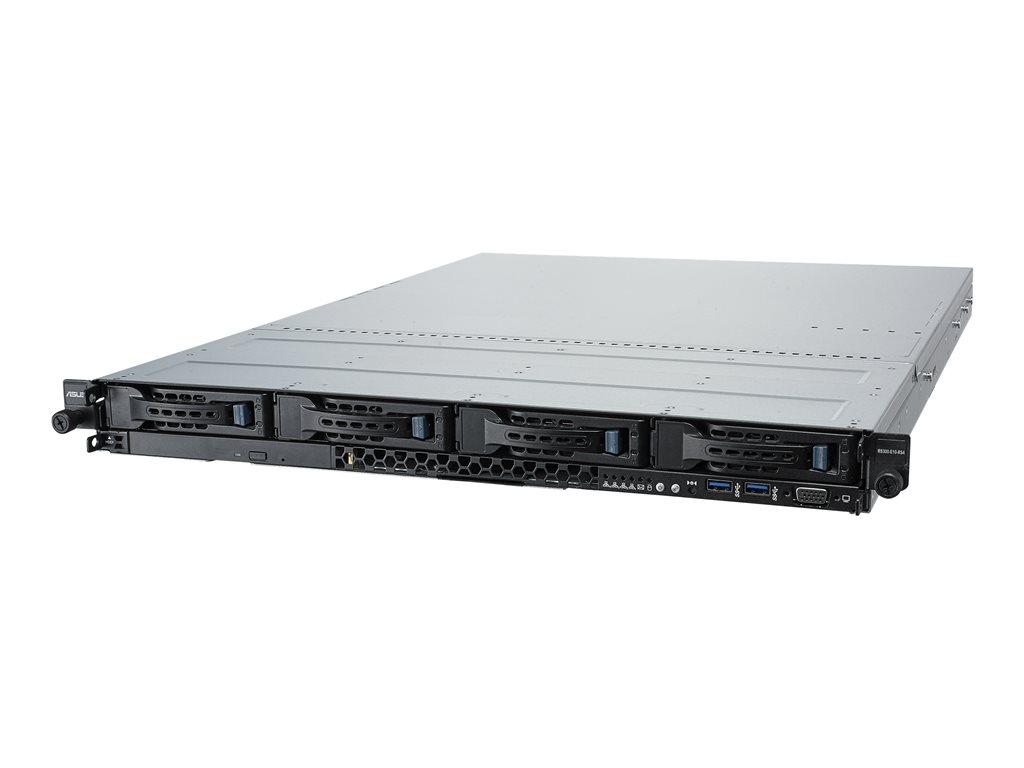

ASUS RS300-E10-RS4 - rack-mountable - no CPU - 0 GB - no HDD

SKU 90SF00D1-M03440
Product Description:ASUS RS300-E10-RS4 - rack-mountable - no CPU - 0 GB - no HDD
Type:Server - rack-mountable
Height (Rack Units):1U
Server Scalability:1-way
Processor:No CPU
Processor Socket:LGA1151 Socket
RAM:0 GB (installed) / 128 GB (max) - DDR4 SDRAM - ECC
Not in stock
  • Specifications
  • Description
General
Type:Server
Product Form Factor:Rack-mountable - 1U
Server Scalability:1-way
Internal Bays Qty:2
Front Accessible Bays Qty:1
Hot-Swap Bays Qty:4
Processor / Chipset
CPU:No CPU
Max CPU Qty:1
CPU Upgradability:Upgradable
CPU Socket:LGA1151 Socket
Chipset Type:Intel C242
RAM
Installed Size:0 GB / 128 GB (max)
Technology:DDR4 SDRAM - ECC
Form Factor:DIMM 288-pin
Slots:4 (Total) / 4 (empty)
Features:Unbuffered, dual channel memory architecture
RAM Supported:128 GB unbuffered - ECC ¦ 128 GB unbuffered - non-ECC
Hard Drive
Type:No HDD
Storage Controller
Type:1 x RAID
Controller Interface Type:SATA 6Gb/s
Channel Qty:6
RAID Level:RAID 0, RAID 1, RAID 5, RAID 10
Optical Storage
Type:No optical drive
Monitor
Monitor Type:None.
Graphics Controller
Graphics Processor:ASPEED AST2500
Video Memory:32 MB
Video Interfaces:VGA
Networking
Ethernet Ports:4 x Gigabit Ethernet
Ethernet Controller:4 x Intel I210-AT
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Bays:1 (total) / 1 (free) x external 5.25" Slim Line ¦ 4 (total) / 4 (free) x hot-swap 3.5" ¦ 2 (total) / 2 (free) x internal 2.5"
Slots:1 (total) / 1 (free) x PCIe 3.0 x16 (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 ¦ 2 (total) / 2 (free) x M.2 Card - 2242/2260/2280/22110
Interfaces:4 x USB 3.0 (2 front, 2 rear) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x USB 3.1 ¦ 1 x management - RJ-45 ¦ 2 x VGA (1 front, 1 rear)
Miscellaneous
Compliant Standards:FCC Class A certified, C-Tick, BSMI
Power
Device Type:Power supply
Power Redundancy:Yes
Power Redundancy Scheme:1+1
Installed Qty:2
Max Supported Qty:2
Voltage Required:AC 100-240 V (50 - 60 Hz)
Power Provided:450 Watt
Operating System / Software
OS Provided:No operating system
Dimensions & Weight
Width:44.4 cm
Depth:61.5 cm
Height:4.4 cm
Weight:12.87 kg
Dimensions & Weight (Shipping)
Shipping Weight:18.99 kg
Environmental Parameters
Min Operating Temperature:10 °C
Max Operating Temperature:35 °C
vis mere
RS300-E10-RS4 offers the performance required by demanding visual computing workloads. A built-in PCI slot is designed for the usage availability of legacy PCI devices.
  • Maximize I/O performance and data protection
  • Enhanced serviceability




The technical details come from 3rd party. edgemo is not responsible for any errors.
