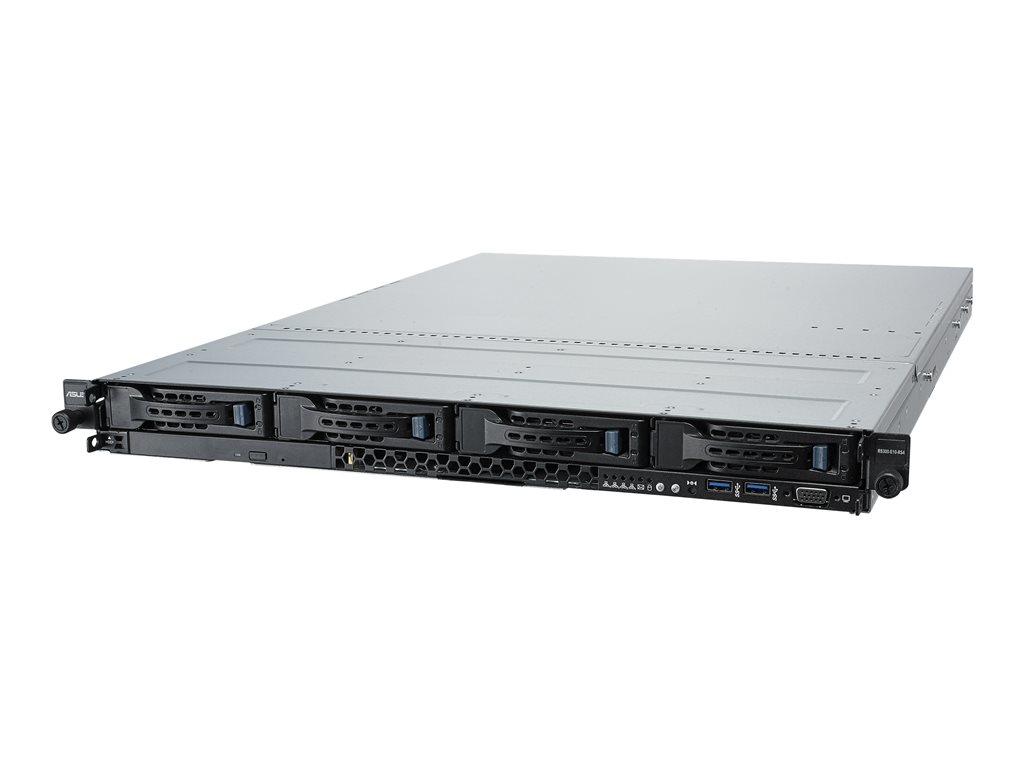

Printers & POSASUS RS300-E10-RS4 - rack-mountable no CPU - 0 GB - no HDD
SKU 90SF00D1-M00010
| Product Description: | ASUS RS300-E10-RS4 - rack-mountable no CPU - 0 GB - no HDD |
| Type: | Server - rack-mountable |
| Height (Rack Units): | 1U |
| Server Scalability: | 1-way |
| Processor: | No CPU |
| Processor Socket: | LGA1151 Socket |
| RAM: | 0 GB (installed) / 64 GB (max) - DDR4 SDRAM |
- Specifications
- Description
| General | |
| Type: | Server |
| Product Form Factor: | Rack-mountable - 1U |
| Server Scalability: | 1-way |
| Internal Bays Qty: | 2 |
| Front Accessible Bays Qty: | 1 |
| Hot-Swap Bays Qty: | 4 |
| Processor / Chipset | |
| CPU: | No CPU |
| Max CPU Qty: | 1 |
| CPU Upgradability: | Upgradable |
| CPU Socket: | LGA1151 Socket |
| Chipset Type: | Intel C242 |
| RAM | |
| Installed Size: | 0 GB (installed) / 64 GB (max) |
| Technology: | DDR4 SDRAM |
| Form Factor: | DIMM 288-pin |
| Slots: | 4 (Total) / 4 (empty) |
| Features: | Unbuffered, dual channel memory architecture |
| RAM Supported: | 64 GB unbuffered - ECC ¦ 64 GB unbuffered - non-ECC |
| Hard Drive | |
| Type: | No HDD |
| Storage Controller | |
| Type: | 1 x RAID |
| Controller Interface Type: | SATA 6Gb/s |
| Channel Qty: | 6 |
| RAID Level: | RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | ASPEED AST2500 |
| Video Memory: | 32 MB |
| Video Interfaces: | VGA |
| Networking | |
| Ethernet Ports: | 4 x Gigabit Ethernet |
| Ethernet Controller: | 4 x Intel I210-AT |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Bays: | 1 (total) / 1 (free) x external 5.25" Slim Line ¦ 4 (total) / 4 (free) x hot-swap 3.5" ¦ 2 (total) / 2 (free) x internal 2.5" |
| Slots: | 1 (total) / 1 (free) x PCIe 3.0 x16 (x8 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 ¦ 2 (total) / 2 (free) x M.2 Card - 2242/2260/2280/22110 |
| Interfaces: | 4 x USB 3.0 (2 front, 2 rear) ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 ¦ 2 x USB 3.1 ¦ 1 x management - RJ-45 ¦ 2 x VGA (1 front, 1 rear) |
| Miscellaneous | |
| Compliant Standards: | FCC Class A certified, C-Tick, BSMI |
| Power | |
| Device Type: | Power supply |
| Power Redundancy: | Yes |
| Power Redundancy Scheme: | 1+1 |
| Installed Qty: | 2 |
| Max Supported Qty: | 2 |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Power Provided: | 450 Watt |
| 80 PLUS Certification: | 80 PLUS Gold |
| Operating System / Software | |
| OS Provided: | No operating system |
| Dimensions & Weight | |
| Width: | 44.4 cm |
| Depth: | 61.5 cm |
| Height: | 4.4 cm |
| Weight: | 12.87 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 18.99 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 10 °C |
| Max Operating Temperature: | 35 °C |
RS300-E10-RS4 offers the performance required by demanding visual computing workloads. A built-in PCI slot is designed for the usage availability of legacy PCI devices.
- Maximize I/O performance and data protection
- Enhanced serviceability
The technical details come from 3rd party. edgemo is not responsible for any errors.
