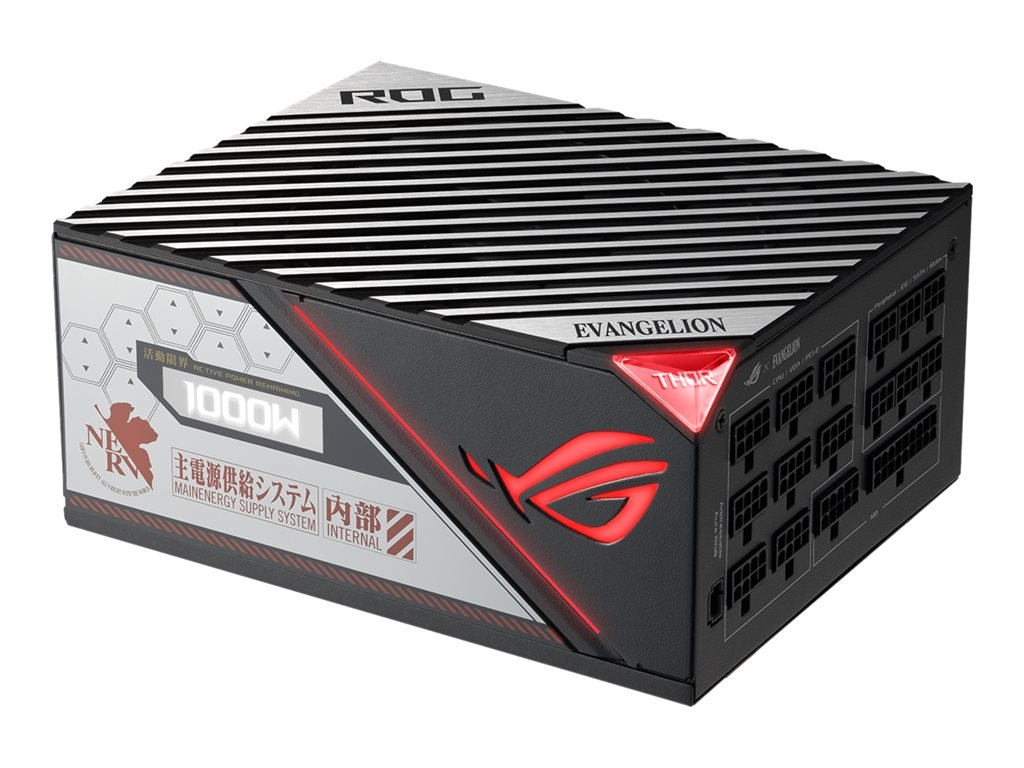

ASUS ROG Thor Platinum II - EVA Edition - power supply - 1000 Watt

SKU 90YE00L6-B0NA00
Product Description:ASUS ROG Thor Platinum II - EVA Edition - power supply - 1000 Watt
Device Type:Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:ATX12V
80 PLUS Certification:80 PLUS Platinum
Weight:2.35 kg
Input Voltage:AC 100-240 V
Output Voltage:+3.3, +5, ±12 V
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:ATX12V
PSU Form Factor:ATX
Power Device
Input Voltage:AC 100-240 V
Power Output Connectors Details:1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 12 pin PCI Express power ¦ 8 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power
Output Voltage:+3.3, +5, ±12 V
Power Capacity:1000 Watt
Output Current:+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Modular Cable Management:Yes
80 PLUS Certification:80 PLUS Platinum
Miscellaneous
Included Accessories:Screws, 12 cable ties, ROG sticker, 6 x ROG cable ties, cable combs
Cables Included:AC input cable - external ¦ Power 24 pin ATX with detachable 4 pin section modular cable 61 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 65 cm ¦ 16-pin 12VHPWR power cable 67.5 cm ¦ 4 x 8 pin PCI Express power with detachable 2 pin section modular cable 67.5 cm ¦ 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable ¦ 3 x Serial ATA cable ¦ ARGB sync cable ¦ 2 x 4 pin internal power cable
Cooling System:135 mm fan
Features:Sleeved cables, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, thermal protection, fully modular, ASUS Aura Sync, ROG heatsink, Axial-tech fan design, 0db Technology, Lambda A++ Certification
Compliant Standards:C-Tick, CB, CCC, FCC, RoHS, WEEE, TUV SUD, EAC, ICC
Manufacturer Warranty
Service & Support:10 years warranty
Dimensions & Weight
Width:15 cm
Depth:19 cm
Height:8.6 cm
Weight:2.35 kg
vis mere
The ROG Thor II Platinum EVA Edition wears an EVA-inspired skin and wields component and cooling upgrades that enable the lowest noise levels - even during the most demanding skirmishes with the opposition.
  • Axial-tech fan design
  • ROG heatsinks
  • Lambda A++ certification
  • 80 PLUS Platinum




The technical details come from 3rd party. edgemo is not responsible for any errors.
