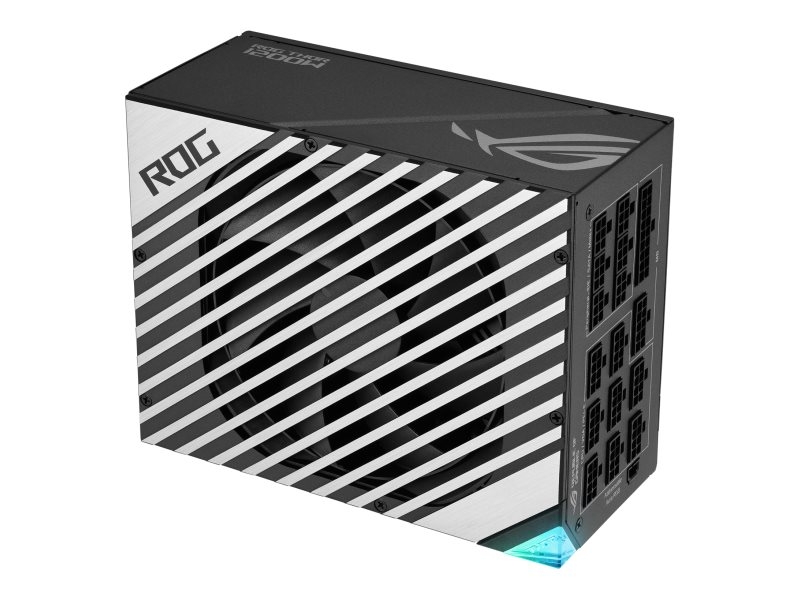

ASUS ROG-THOR-1200P2-GAMING - power supply - 1200 Watt

SKU 90YE00L0-B0NA00
Product Description:ASUS ROG-THOR-1200P2-GAMING - power supply - 1200 Watt
Device Type:Power supply - internal
Specification Compliance:ATX12V
80 PLUS Certification:80 PLUS Platinum
Weight:2.37 kg
Input Voltage:AC 100-240 V
Output Voltage:+3.3, +5, ±12 V
19-01-2025
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Power supply - internal
Specification Compliance:ATX12V
PSU Form Factor:ATX
Power Device
Input Voltage:AC 100-240 V
Power Output Connectors Details:1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 8 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 6 x 4 PIN internal power ¦ 1 x 16 pin PCI Express power
Output Voltage:+3.3, +5, ±12 V
Power Capacity:1200 Watt
Output Current:+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 100 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Modular Cable Management:Yes
80 PLUS Certification:80 PLUS Platinum
Miscellaneous
Included Accessories:12 cable ties, ROG sticker, 6 x ROG cable ties
Cooling System:135 mm fan
Features:Over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, thermal protection, OLED display, fully modular, ASUS Aura Sync, ROG heatsink, Axial-tech fan design, Lambda A++ Certification
Compliant Standards:RoHS
Manufacturer Warranty
Service & Support:Limited warranty - 10 years
Dimensions & Weight
Width:15 cm
Depth:19 cm
Height:8.6 cm
Weight:2.37 kg
vis mere
The ROG Thor 1200 W Platinum wields cooling and component upgrades that make it an extremely quiet PSU. And to complement premium motherboards and bring additional flair to beastly rigs, there is a mirrored side panel that neatly frames the OLED display.
  • Lambda A++ Certification confirms the Thor wields menacing power in absolute stealth
  • ROG heatsinks cover critical components, delivering lower temperatures and reduced noise
  • A 135 mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check
  • Built with low-ESR capacitors and other premium components to achieve 80 Plus Platinum Certification
  • OLED display monitors power draw in real time
  • Aura Sync compatibility lets you customize and sync lighting effects with other compatible hardware




The technical details come from 3rd party. edgemo is not responsible for any errors.
