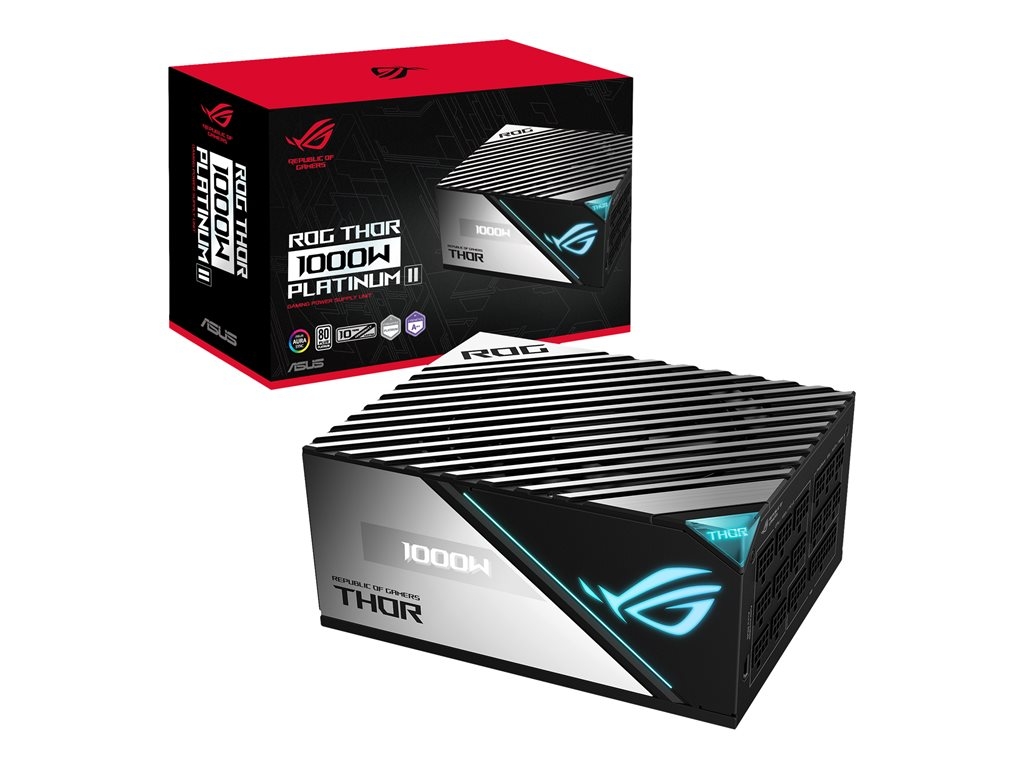

ASUS ROG-THOR-1000P2-GAMING - power supply - 1000 Watt

SKU 90YE00L1-B0NA00

Product Description:	ASUS ROG-THOR-1000P2-GAMING - power supply - 1000 Watt
Device Type:	Power supply - internal
Specification Compliance:	ATX12V
80 PLUS Certification:	80 PLUS Platinum
Weight:	2.37 kg
Input Voltage:	AC 100-240 V
Output Voltage:	+3.3, +5, ±12 V

09-01-2025

Power Device
Input Voltage:	AC 100-240 V
Power Output Connectors Details:	1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 8 x 8 pin PCI Express power with detachable 2 pin section ¦ 12 x 15 pin Serial ATA power ¦ 6 x 4 PIN internal power ¦ 1 x 12 pin PCI Express power
Output Voltage:	+3.3, +5, ±12 V
Power Capacity:	1000 Watt
Output Current:	+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Modular Cable Management:	Yes
80 PLUS Certification:	80 PLUS Platinum

Miscellaneous
Included Accessories:	12 cable ties, ROG sticker, 6 x ROG cable ties
Cables Included:	16-pin 12VHPWR to 2x8 pin PCI Express power adapter 675 mm
Cooling System:	135 mm fan
Features:	Over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, thermal protection, OLED display, fully modular, ASUS Aura Sync, ROG heatsink, Axial-tech fan design, 0db Technology, Lambda A++ Certification
Compliant Standards:	RoHS

Manufacturer Warranty
Service & Support:	Limited warranty - 10 years

Lambda A++ Certification confirms the latest Thor wields menacing power in absolute stealth
ROG heatsinks cover critical components, delivering lower temperatures and reduced noise
A 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check
Built with 100% Japanese capacitors and other premium components to achieve 80 Plus Platinum Certification
OLED display monitors power draw in real time
Aura Sync compatibility lets you customize and sync lighting effects with other compatible hardware

The technical details come from 3rd party. edgemo is not responsible for any errors.
