Printers & POSASUS ROG STRIX Z790-I GAMING WIFI - motherboard - mini ITX - LGA1700 Socket - Z790
SKU 90MB1CM0-M0EAY0

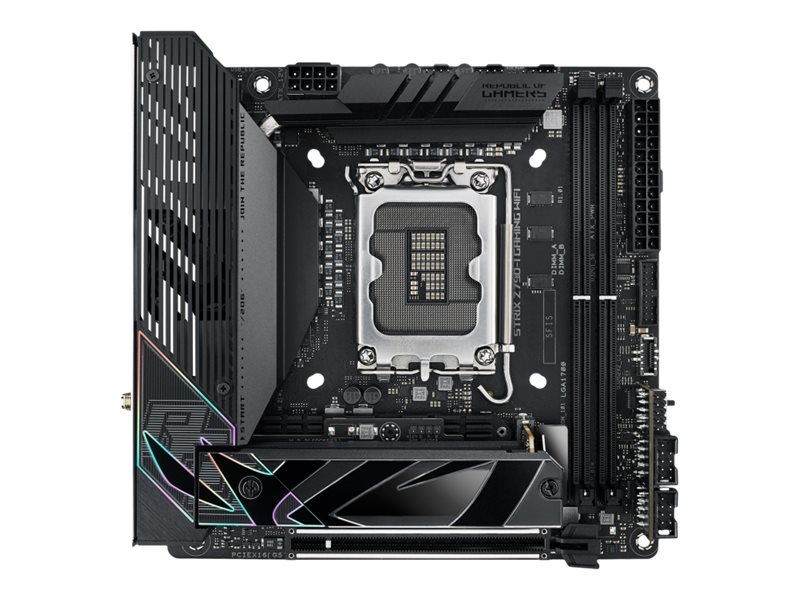

| Product Description: | ASUS ROG STRIX Z790-I GAMING WIFI - motherboard - mini ITX - LGA1700 Socket - Z790 |
| Product Type: | Motherboard - mini ITX |
| Chipset Type: | Intel Z790 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 2 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - mini ITX |
| Chipset Type: | Intel Z790 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR5 |
| Bus Clock: | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC, on-die ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Audio Codec: | Realtek ALC4050 / ESS SABRE9260Q |
| Compliant Standards: | High Definition Audio, DTS Sound Unbound |
| LAN | |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 2 x 7pin external SATA - RAID 0 / RAID 1 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 |
| Interfaces: | 1 x HDMI ¦ 2 x Thunderbolt 4/DisplayPort/USB4 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 3 x USB 3.2 Gen 2 ¦ 2 x USB 2.0 ¦ 2 x aerial ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 3 x USB 2.0 - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3, MemTest86 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Clear CMOS Button, LANGuard, ASUS SafeSlot, 10 Layer PCB, ASUS SafeDIMM, M.2 heatsink, Water Pump Header, pre-mounted I/O shield, ASUS Aura Sync, ASUS ProCool II, 10+1 Phase Power Design, M.2 Q-Latch, 5K Black Metallic Capacitors, CPU Socket lever protector, VRM heatsink design, ASUS Enhanced Memory Profile (AEMP) II, 105A Power Stage |
| Miscellaneous | |
| Included Accessories: | Cable ties, STRIX stickers, ROG thank you card, thermal pad for M.2 SSD, ROG key chain, ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 Q-Latch, panel cable, ROG FPS-II Card, ROG STRIX HIVE |
| Cables Included: | 2 x Serial ATA cable ¦ 1 x USB 2.0 splitter cable ¦ 1 x USB-C power connection cable |
| Software Included: | ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, WinRAR, ROG GameFirst VI, AIDA64 Extreme (60 days trial), ASUS AURA Creator, MyAsus, Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS Fan Xpert 4, Norton 360 for Gamers |
| Compliant Standards: | VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, EU RoHS, EU REACH |
| Width: | 17 cm |
| Depth: | 17 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
Rules are made to be broken. Smashing the conventions of what a mini-ITX motherboard can do, the ROG Strix Z790-I's power delivery rivals that of full-scale titans and its stacked thermal array is more than a match for multi-core behemoths. It also expands the boundaries of connectivity, with the innovative ROG Hive, a hybrid audio and USB hub with an added twist - an AI Overclocking button makes tuning so easy, it feels like cheating.
- All-round performance
- AI Overclocking
- PCIe 5.0
- DDR5 domination
- VRM cooling array
- M.2 heatsink stack
- 4-pin fan headers
- Excellent connectivity
- ROG Strix Hive
- ROG FPS-II card
- Two Thunderbolt 4 Type-C ports
- Wi-Fi 6E
- Intel 2.5G Ethernet
- Play in style
The technical details come from 3rd party. edgemo is not responsible for any errors.
