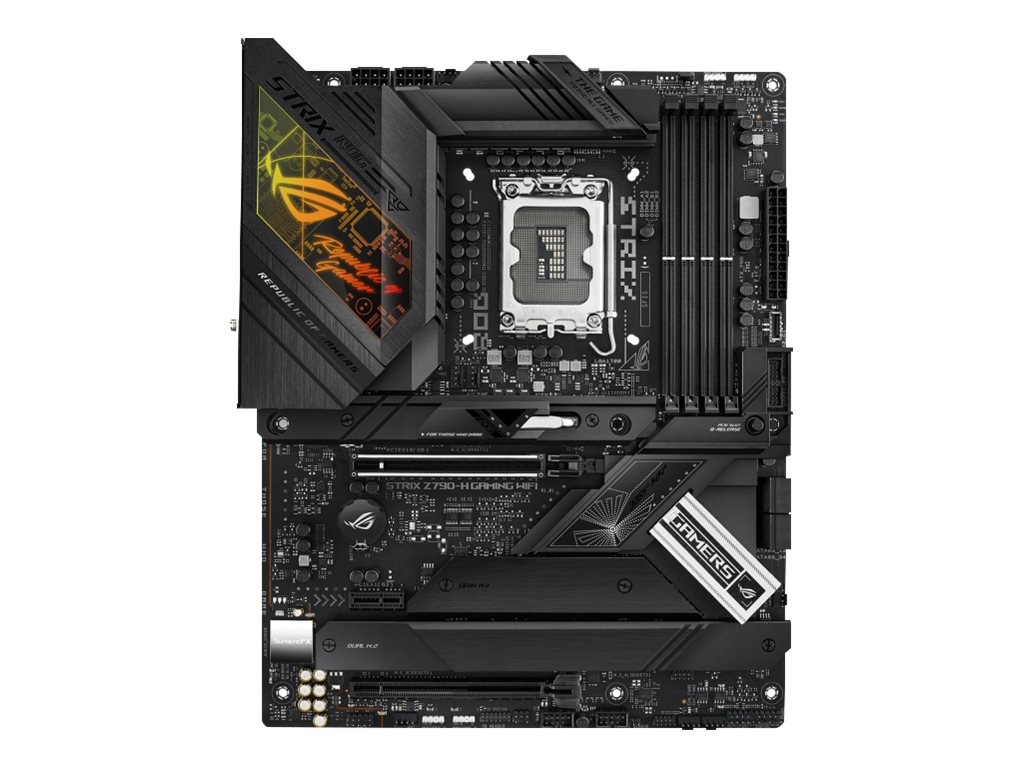

Printers & POSASUS ROG STRIX Z790-H GAMING WIFI - motherboard - ATX - LGA1700 Socket - Z790
SKU 90MB1E10-M0EAY0
| Product Description: | ASUS ROG STRIX Z790-H GAMING WIFI - motherboard - ATX - LGA1700 Socket - Z790 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel Z790 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel Z790 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR5 |
| Bus Clock: | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC, on-die ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | SupremeFX (S1220A) |
| Compliant Standards: | High Definition Audio, DTS Sound Unbound |
| LAN | |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 or x4/x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 2 x aerial ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x SPDIF out |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
| Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, MemTest86 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, LANGuard, audio jack detect technology, jack retasking, SupremeFX Shielding technology, Savitech SV3H712 amplifier, BIOS FlashBack button, Clear CMOS Button, Water Pump Header, 5K Black Metallic Capacitors, ASUS Extreme Engine Digi+, ASUS Q-Design, M.2 heatsink, M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink backplate, ASUS Aura Sync, ASUS ProCool II, ASUS SafeSlot, BIOS FlashBack LED, CPU Socket lever protector, pre-mounted I/O shield, SafeDIMM, VRM heatsink design, ASUS EZ DIY, CrashFree BIOS 3, FlexKey button, Preboot eXecution Environment (PXE), DIY Friendly Design, 16+1 Phase Power Design, 80A Power Stage, 6 Layer PCB |
| Miscellaneous | |
| Included Accessories: | ASUS Wi-Fi moving aerial, cable ties, M.2 backplate Q-Latch, M.2 Q-Latch, ROG key chain, thermal pad for M.2 SSD, ROG stickers, ROG thank you card, 2 x M.2 rubber package, M.2 backplate rubber package |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | ROG CPU-Z, ROG GameFirst VI, Sonic Radar III, Sonic Studio III, Sonic Studio Virtual Mixer, Sonic Suite Companion, AIDA64 Extreme (60 days trial), Armoury Crate, ASUS AI Suite III, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS Turbo App, MyAsus, Norton 360 for Gamers, PC Cleaner, WinRAR |
| Compliant Standards: | DisplayPort 1.4 |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
Strike stealthily with the powerfully potent ROG Strix Z790-H. Thick heatsinks keep VRM temperatures under wraps, allowing Intel 13th Gen processors room for higher boosts. Four M.2 slots are similarly outfitted, and the top slot comes with a combo sink to sneak in extra cooling. PCIe 5.0 support lies in wait for next-gen graphics cards, and cutting-edge Wi-Fi 6E and USB 3.2 Gen 2 x2 fully flesh out connectivity.
- AI overclocking
- AI Cooling II
- Extensive Gen 5
- USB 3.2 Gen 2 x2
- Robust power solution
- Wi-Fi 6E
- DIY-friendly design
