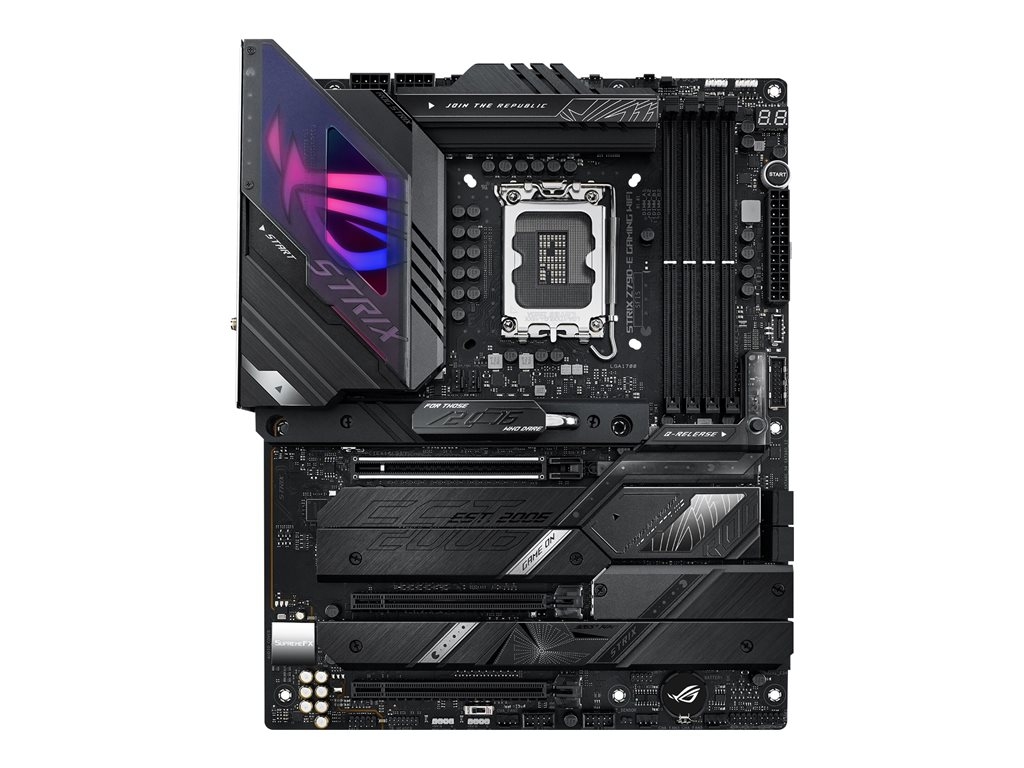

Printers & POSASUS ROG Strix Z790-E Gaming WiFi - motherboard - ATX - LGA1700 Socket - Z790
SKU 90MB1CL0-M0EAY0
| Product Description: | ASUS ROG Strix Z790-E Gaming WiFi - motherboard - ATX - LGA1700 Socket - Z790 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel Z790 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 192 GB |
| RAM Supported: | 4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel Z790 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 192 GB |
| Technology: | DDR5 |
| Bus Clock: | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC, on-die ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC4080 |
| Compliant Standards: | High Definition Audio, DTS Sound Unbound |
| LAN | |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 4 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 6 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x SPDIF out ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
| Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3, MemTest86 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | ASUS OptiMem II, audio jack detect technology, jack retasking, Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, SupremeFX Shielding technology, Savitech SV3H712 amplifier, Clear CMOS Button, BIOS FlashBack button, BIOS FlashBack LED, Water Pump Header, Start button, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, CPU Socket lever protector, ASUS ProCool, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), FlexKey button, 18+1 Phase Power Design, DIY Friendly Design, 90A Power Stage, ASUS ProCool II |
| Miscellaneous | |
| Included Accessories: | RAM fan holder, VRM fan holder, thermal pad for M.2 SSD, ASUS Wi-Fi moving aerial, cable ties, M.2 backplate Q-Latch, M.2 Q-Latch, ROG key chain, ROG thank you card, 2 x M.2 rubber package, M.2 backplate rubber package |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Armoury Crate, ROG CPU-Z, ROG GameFirst VI, Sonic Studio III, Sonic Radar III, Sonic Studio Virtual Mixer, Sonic Suite Companion, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, MyAsus, Norton 360 for Gamers, WinRAR |
| Compliant Standards: | FCC Part 15 Class B, VCCI Class B ITE, JATE, EU RoHS, EU REACH, WEEE, DisplayPort 1.4 |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
Slash the 6 GHz barrier in style with the Strix Z790-E. Translucent shrouds outline its RGB ignition panel, alluding to its ability to jump into lightspeed under the guidance of AI Overclocking and a hyper-reactive VRM. DDR5 enhancements and an assortment of PCIe 5.0 options ramp up velocity even further, and setup is a breeze thanks to its unique Q-Design feature set.
- PCIe slot Q-release
- M.2 Q-Latch
- Clear CMOS
- BIOS Flashback
- Q-Code
- Start button
- All-round performance
- AI Overclocking
- PCIe 5.0
- VRM heatsink array
- Excellent connectivity
- Wi-Fi 6E
- Intel 2.5G Ethernet
- Play in style
The technical details come from 3rd party. edgemo is not responsible for any errors.
