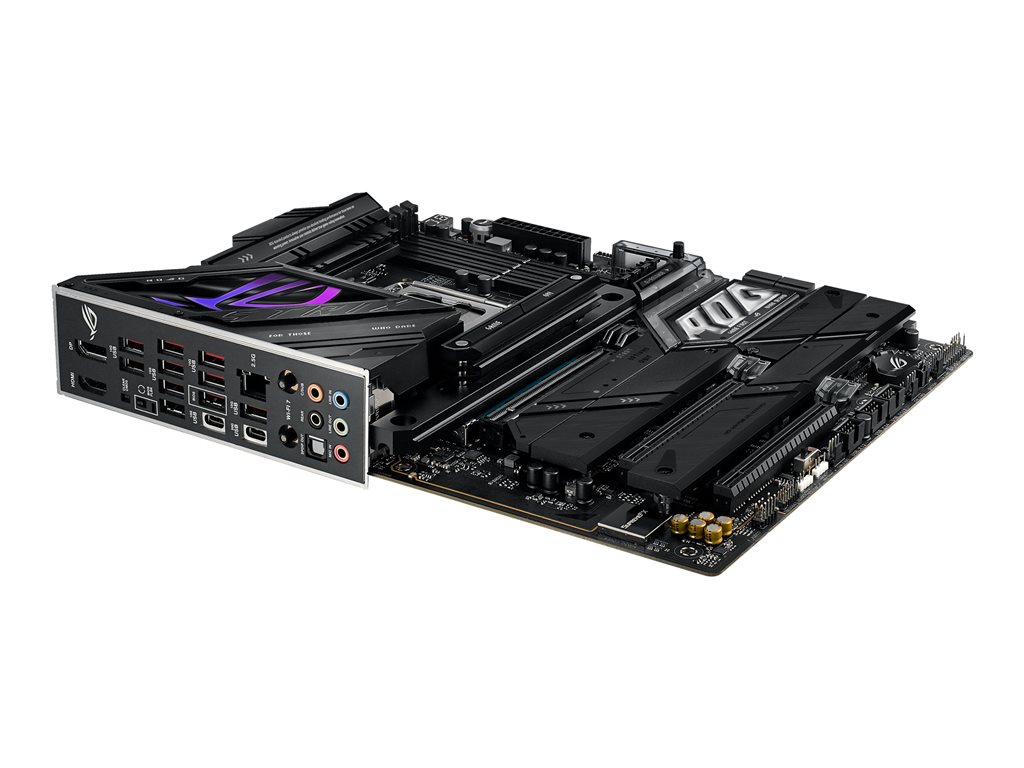

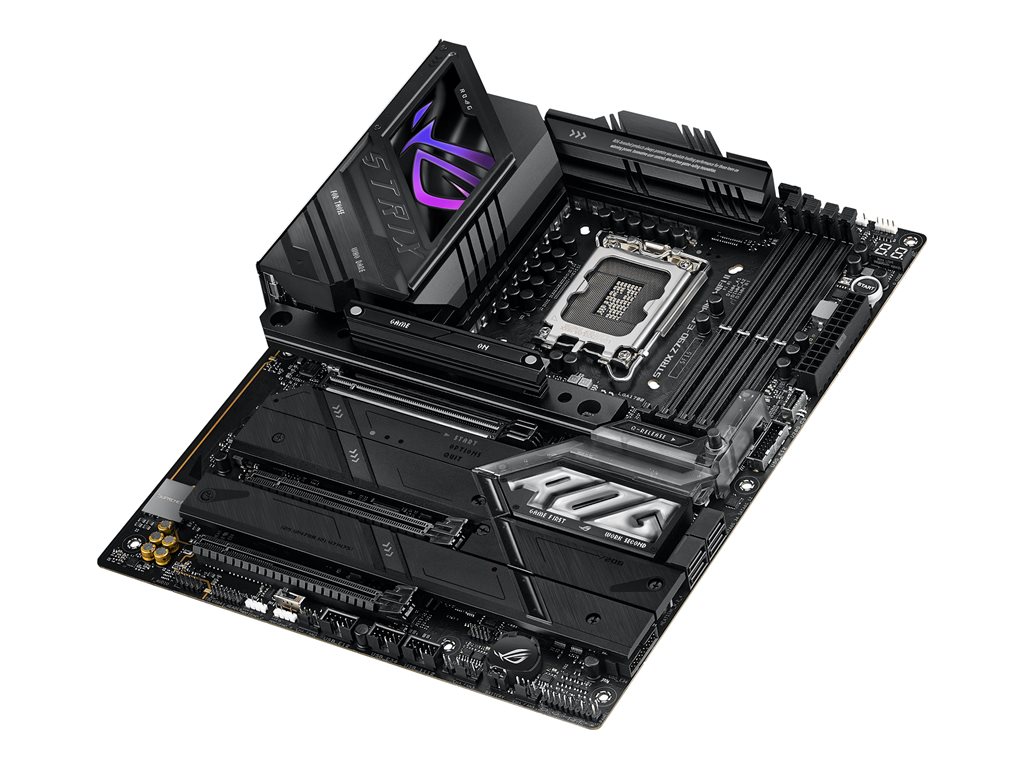

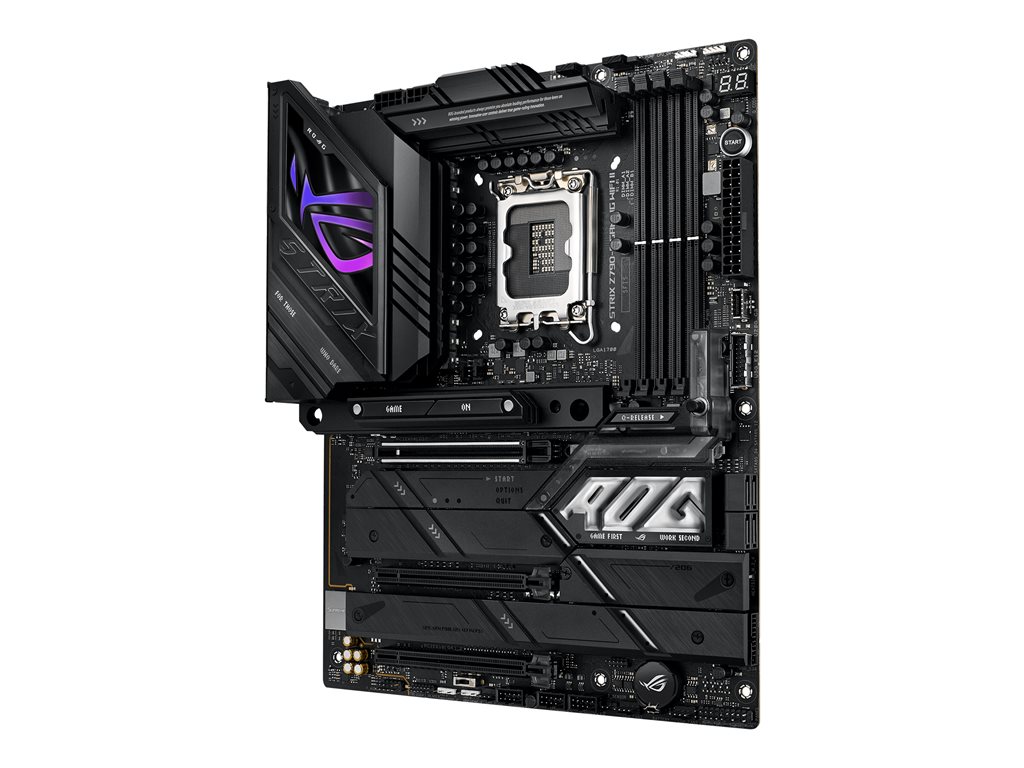

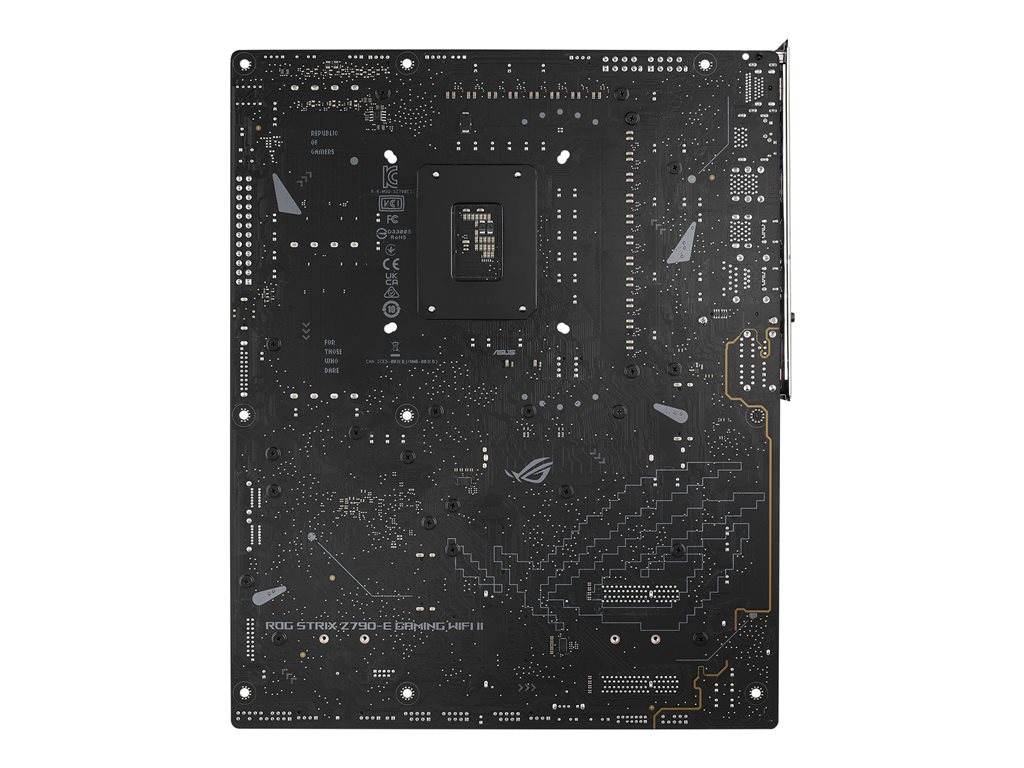

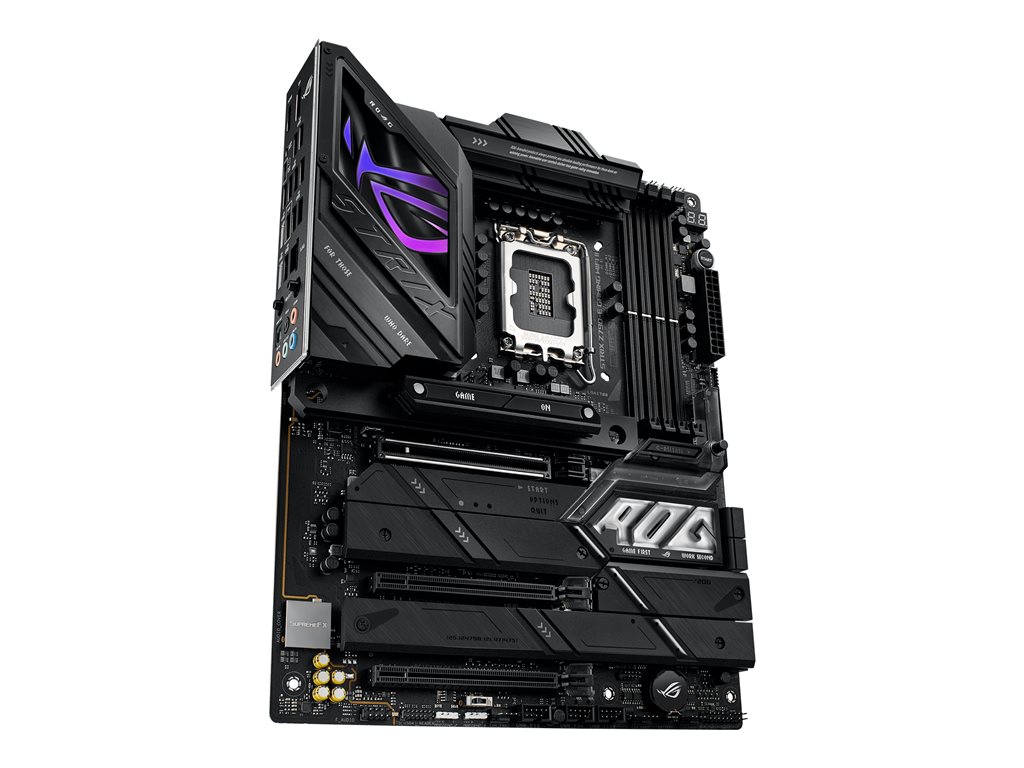

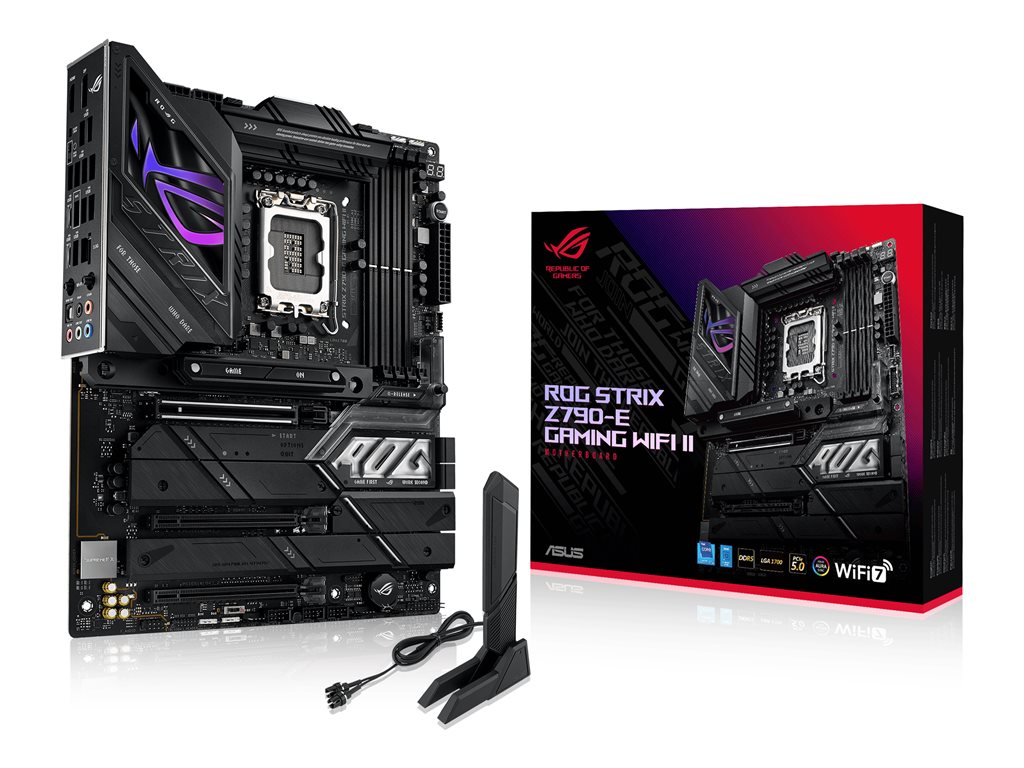

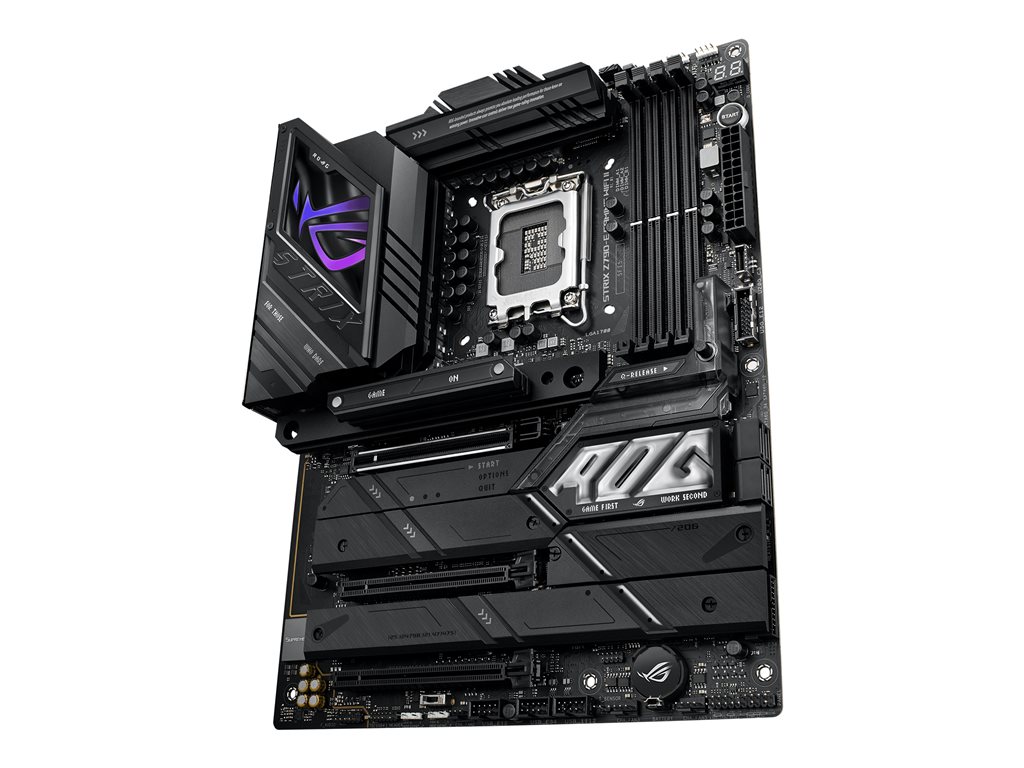

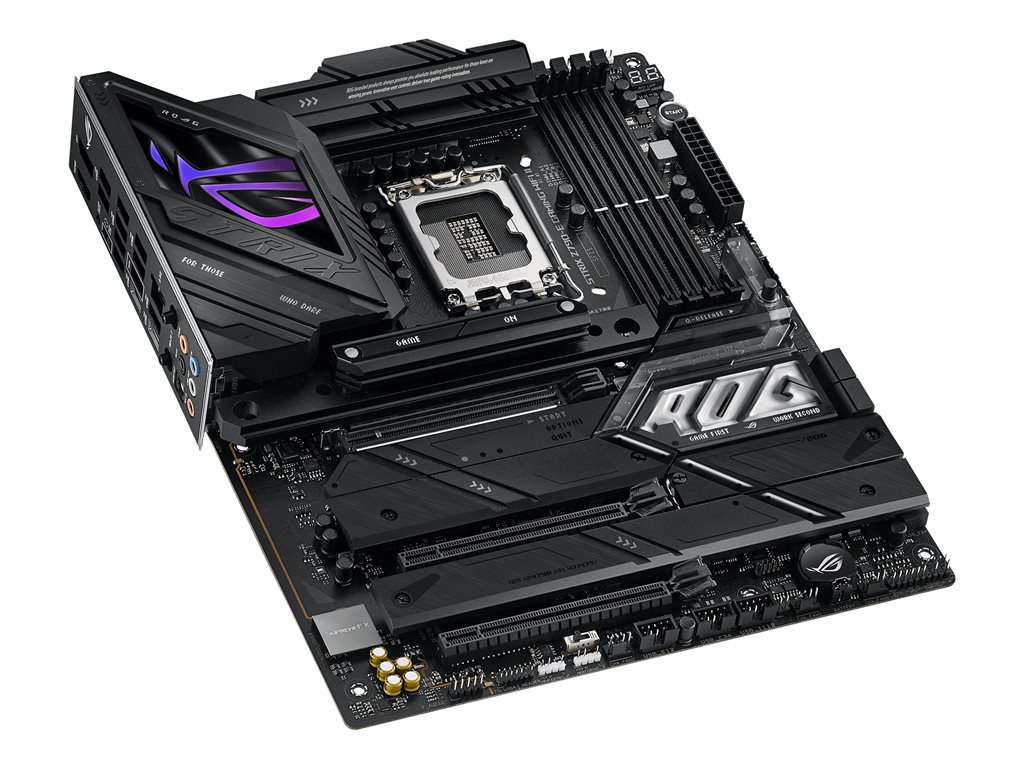

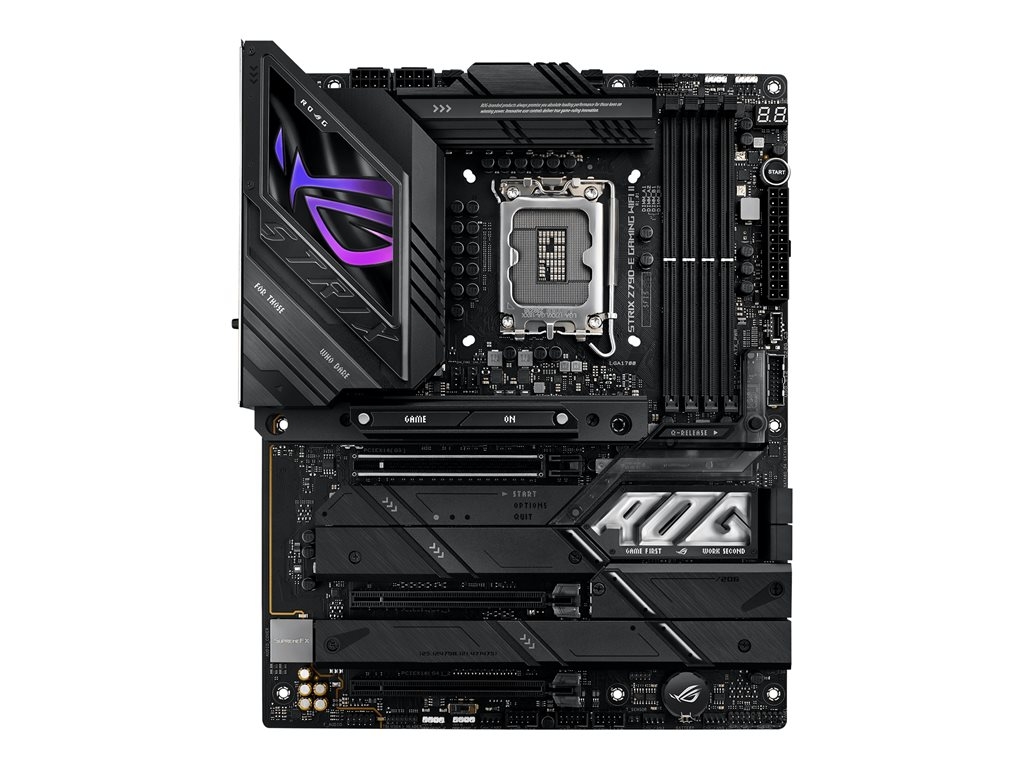

ASUS ROG STRIX Z790-E GAMING WIFI II - motherboard - ATX - LGA1700 Socket - Z790

SKU 90MB1FC0-M0EAY0

Product Description:	ASUS ROG STRIX Z790-E GAMING WIFI II - motherboard - ATX - LGA1700 Socket - Z790
Product Type:	Motherboard - ATX
Chipset Type:	Intel Z790
Processor Socket:	1 x LGA1700 Socket
Compatible Processors:	(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size:	192 GB
RAM Supported:	4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered

Not in stock

Specifications
Description
Accessories

General
Product Type:	Motherboard - ATX
Chipset Type:	Intel Z790
Processor Socket:	LGA1700 Socket
Max Processors Qty:	1
Compatible Processors:	(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM
Max Size:	192 GB
Technology:	DDR5
Bus Clock:	5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.)
Supported RAM Integrity Check:	Non-ECC, on-die ECC
Registered or Buffered:	Unbuffered
Features:	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)

Audio
Type:	HD Audio (8-channel)
Audio Codec:	SupremeFX (ALC4080)
Compliant Standards:	High Definition Audio, DTS Sound Unbound

LAN
Network Interfaces:	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Expansion / Connectivity
Expansion Slots:	1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 4.0 x16 (x4 mode) ¦ 2 x M.2 socket (2280 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces:	SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features:	Intel Rapid Storage Technology

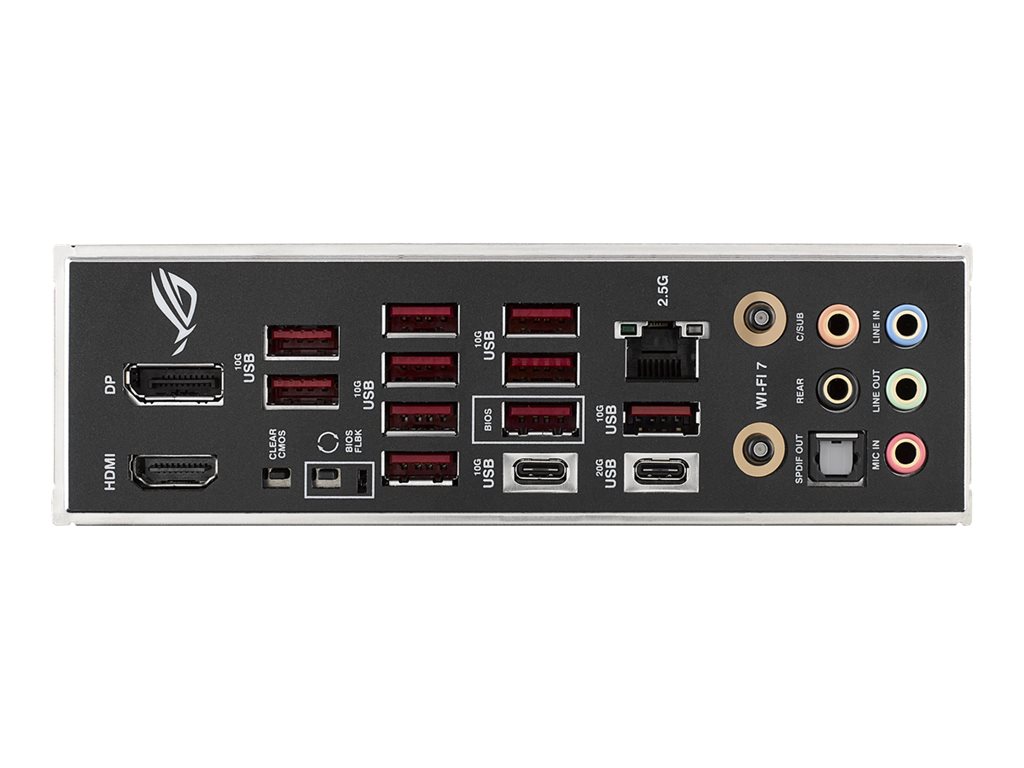

Interfaces:	1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 10 x USB 3.2 Gen 2 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x SPDIF out ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x aerial
Internal Interfaces:	1 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 6 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt 4 - header
Power Connectors:	24-pin main power connector, 2 x 8-pin ATX12V connectors

Features
BIOS Type:	AMI
BIOS Features:	UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up:	Wake on LAN (WOL), wake on PME
Hardware Features:	ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, Q-Code, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, AURA RGB Lighting Control, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS ProCool II, M.2 Q-Latch, 5K Black Metallic Capacitors, Start button, PCIe Slot Q-Release, CPU Socket lever protector, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, ASUS Enhanced Memory Profile (AEMP) II, M.2 heatsink backplate, Q-Antenna, 18+1+2 Phase Power Design

Miscellaneous

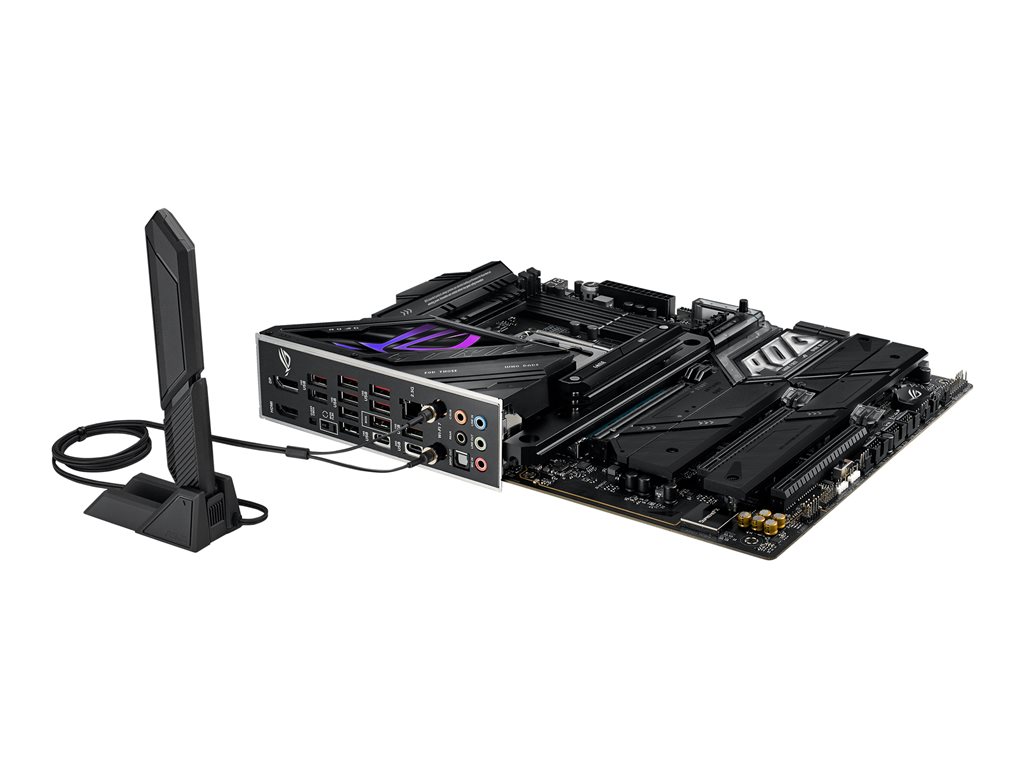

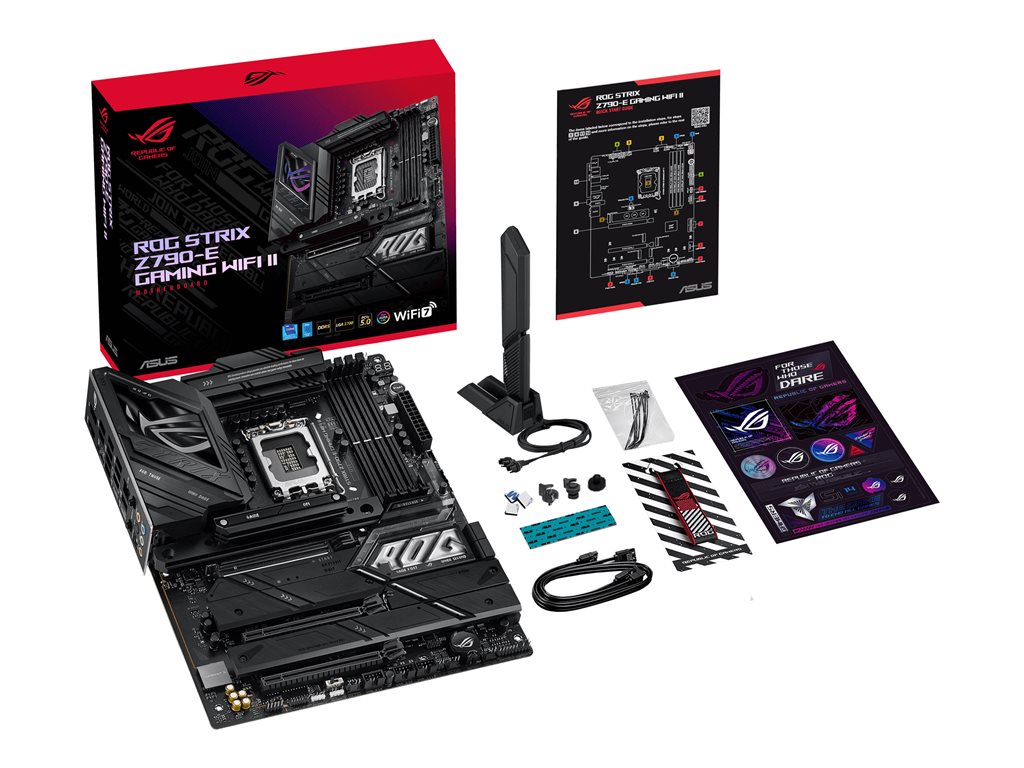

Included Accessories:	Cable ties, STRIX stickers, thermal pad for M.2 SSD, ROG key chain, M.2 Q-Latch, 2 x M.2 rubber package, M.2 backplate rubber package, M.2 backplate Q-Latch, ASUS Wi-Fi Q-antenna
Cables Included:	2 x Serial ATA cable
Software Included:	ROG CPU-Z, ROG GameFirst Utility, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, Sonic Studio Virtual Mixer, AIDA64 Extreme (60 days trial), MemTest86, ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 4, Norton 360 for Gamers (60 days trial), Adobe Creative Cloud (free trial), WinRAR (40 days trial), USB Wattage Watcher, Intel Unison (9 month subscription)
Compliant Standards:	DisplayPort 1.4
Width:	30.5 cm
Depth:	24.4 cm

vis mere

The ASUS ROG STRIX Z790-E GAMING WIFI II motherboard is designed to meet the demands of gamers and PC enthusiasts alike. It features technology to support Intel processors on the LGA1700 socket, ensuring compatibility with a wide range of CPUs. With support for DDR5 SDRAM at speeds up to 8000 MHz (O.C.), it sets the foundation for a high-performance system capable of handling intensive tasks and gaming.
Storage options are abundant, with 5 x M.2 sockets and 4 x SATA-600 ports, all supporting RAID configurations for flexibility and reliability in data storage. Networking is efficient, with 2.5 Gigabit Ethernet, the Wi-Fi 7 standard, and Bluetooth 5.4, providing fast and stable connections for online gaming and streaming.
ASUS's dedication to quality and performance is evident in its exclusive hardware features, including a pre-mounted I/O shield, comprehensive cooling solutions like M.2 and VRM heatsinks, and ASUS's durability features. This motherboard is not just a platform for building a PC; it's an investment in a gaming experience that offers speed, connectivity, and reliability.

Supports DDR5 SDRAM with speeds up to 8000 MHz (O.C.) for superior memory performance
5 x M.2 sockets and 4 x SATA-600 ports with RAID support for extensive storage options
2.5 Gigabit Ethernet, Wi-Fi 7, and Bluetooth 5.4 for high-speed networking
Comprehensive cooling solutions including M.2 heatsink and VRM heatsink design
Pre-mounted I/O shield and ASUS exclusive hardware features for easy setup and durability
