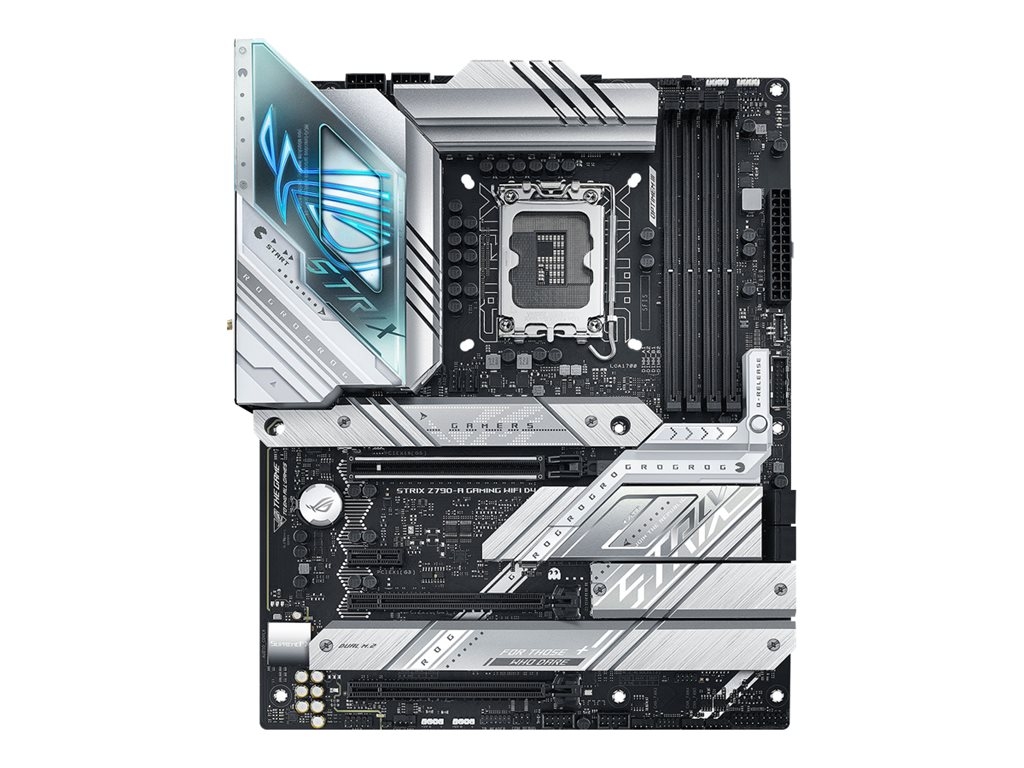

Printers & POSASUS ROG Strix Z790-A Gaming WiFi D4 - motherboard - ATX - LGA1700 Socket - Z790
SKU 90MB1CN0-M0EAY0
| Product Description: | ASUS ROG Strix Z790-A Gaming WiFi D4 - motherboard - ATX - LGA1700 Socket - Z790 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel Z790 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel Z790 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4500 MHz (O.C.), 4600 MHz (O.C.), 4700 MHz (O.C.), 4800 MHz (O.C.), 5000 MHz (O.C.), 5066 MHz (O.C.), 5133 MHz (O.C.), 5333 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC4080 |
| Compliant Standards: | High Definition Audio, DTS Sound Unbound |
| LAN | |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 2 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x SPDIF out ¦ 2 x aerial |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
| Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3, MemTest86 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | LANGuard, audio jack detect technology, jack retasking, ASUS OptiMem III, SupremeFX Shielding technology, Savitech SV3H712 amplifier, Clear CMOS Button, BIOS FlashBack button, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, Q-LED, Q-Slot, Q-DIMM, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack LED, CPU Socket lever protector, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, FlexKey button, Preboot eXecution Environment (PXE), M.2 heatsink, 16+1 Phase Power Design, DIY Friendly Design, PCIe Slot Q-Release, 70A Power Stage |
| Miscellaneous | |
| Included Accessories: | Thermal pad for M.2 SSD, ASUS Wi-Fi moving aerial, cable ties, M.2 backplate Q-Latch, M.2 Q-Latch, ROG key chain, STRIX stickers, ROG thank you card, 2 x M.2 rubber package, M.2 backplate rubber package |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | ROG GameFirst VI, ROG CPU-Z, Sonic Studio III, Sonic Studio Virtual Mixer, Sonic Suite Companion, Sonic Radar III, Armoury Crate, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, MyAsus, Norton 360 for Gamers, WinRAR |
| Compliant Standards: | FCC Part 15 Class B, VCCI Class B ITE, JATE, EU RoHS, EU REACH, WEEE, DisplayPort 1.4 |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
Well-versed in style, performance, cooling, and connectivity, the ROG Strix Z790-A exudes well-rounded balance inside and out. A robust VRM topped with stout silver heatsinks comfortably articulates power for the Intel 13th Gen Core processors. PCIe 5.0, Wi-Fi 6E, and high-speed USB flesh out the board's fluency across a variety of disciplines. And a vast collection of tuning options and utilities derived from its ROG heritage are the icing on top.
- Robust power stages
- AI Overclocking
- AI Cooling II
- One-click fan tuning
- GEN 5 support
- USB 3.2 Gen 2x2
- DIY-friendly design
- Wi-Fi 6E
The technical details come from 3rd party. edgemo is not responsible for any errors.
