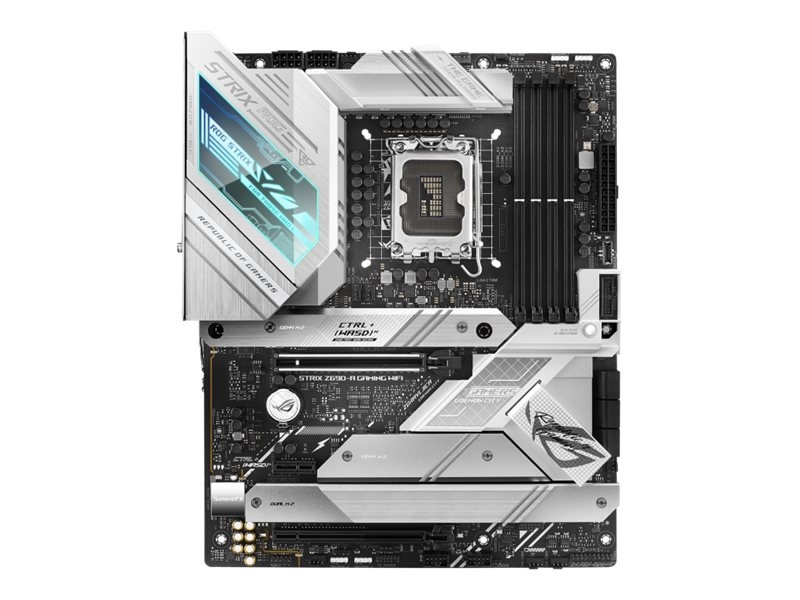

Printers & POSASUS ROG STRIX Z690-A GAMING WIFI - motherboard - ATX - LGA1700 Socket - Z690
SKU 90MB1AP0-M0EAY0
| Product Description: | ASUS ROG STRIX Z690-A GAMING WIFI - motherboard - ATX - LGA1700 Socket - Z690 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel Z690 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR5, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel Z690 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR5 |
| Bus Clock: | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | SupremeFX (ALC4080) |
| Compliant Standards: | High Definition Audio, DTS Sound Unbound |
| LAN | |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 |
| Interfaces: | 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2x2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 4 x USB 3.2 Gen 1 |
| Internal Interfaces: | 1 x USB-C Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x Thunderbolt - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header |
| Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3, MemTest86 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | ASUS EZ DIY, CrashFree BIOS 3, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, 6 Layer PCB, ASUS Fan Xpert 4, ASUS SafeSlot, Sonic Radar III, Sonic Studio III, M.2 heatsink, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, Armoury Crate, ASUS OptiMem III, ProCool II Power Connector, DIY Friendly Design, FlexKey button, 16+1 Phase Power Design |
| Miscellaneous | |
| Included Accessories: | Cable ties, ROG fan stickers, ROG thank you card, ROG key chain, ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 Q-Latch |
| Cables Included: | 4 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, ASUS EZ Flash 3, Antivirus, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 days trial), ASUS AURA Creator, Sonic Suite Companion, MyAsus |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
The ASUS ROG STRIX Z690-A GAMING WIFI motherboard is designed for gamers and enthusiasts looking for a robust and reliable foundation for high-performance systems. It supports powerful processors using the LGA1700 Socket and features a chipset type optimized for gaming experiences. With support for DDR5 SDRAM and RAM speeds up to 6400 MHz (O.C.), this motherboard caters to a variety of memory preferences to ensure optimal performance. It also boasts a connectivity suite, including HDMI, DisplayPort, and multiple USB ports to enhance versatility and expand system capabilities.
Equipped with features like a 2.5 Gigabit Ethernet connection and Bluetooth 5.2, the ROG STRIX Z690-A provides excellent network performance. Additionally, the motherboard utilizes ASUS SafeSlot and strong design elements, like the pre-mounted I/O shield and M.2 heatsink, to ensure durability and efficient thermal management. This motherboard is tailored for those who demand efficiency and power in gaming setups, offering a seamless blend of performance and high definition audio support through the SupremeFX audio codec.
Equipped with features like a 2.5 Gigabit Ethernet connection and Bluetooth 5.2, the ROG STRIX Z690-A provides excellent network performance. Additionally, the motherboard utilizes ASUS SafeSlot and strong design elements, like the pre-mounted I/O shield and M.2 heatsink, to ensure durability and efficient thermal management. This motherboard is tailored for those who demand efficiency and power in gaming setups, offering a seamless blend of performance and high definition audio support through the SupremeFX audio codec.
- Supports Intel LGA1700 CPUs for processing capabilities
- Features RAM support with speeds up to 6400 MHz (O.C.)
- Includes multiple connectivity options for system versatility
- Offers network solutions with 2.5 Gigabit Ethernet and Bluetooth 5.2
- Designed with durability features like ASUS SafeSlot and M.2 heatsink
The technical details come from 3rd party. edgemo is not responsible for any errors.
