Printers & POSASUS ROG STRIX Z490-E GAMING - motherboard - ATX - LGA1200 Socket - Z490
SKU 90MB12P0-M0EAY0
| Product Description: | ASUS ROG STRIX Z490-E GAMING - motherboard - ATX - LGA1200 Socket - Z490 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel Z490 |
| Processor Socket: | 1 x LGA1200 Socket |
| Compatible Processors: | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel Z490 |
| Processor Socket: | LGA1200 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 10th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 2933 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4500 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | SupremeFX (S1220A) |
| Compliant Standards: | High Definition Audio, DTS Sound Unbound |
| LAN | |
| Network Controller: | Intel I225-V |
| Network Interfaces: | 802.11a/b/g/n/ac, 2.5 Gigabit Ethernet, Bluetooth 5.0 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x4 ¦ 3 x PCIe 3.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 1 x M.2 |

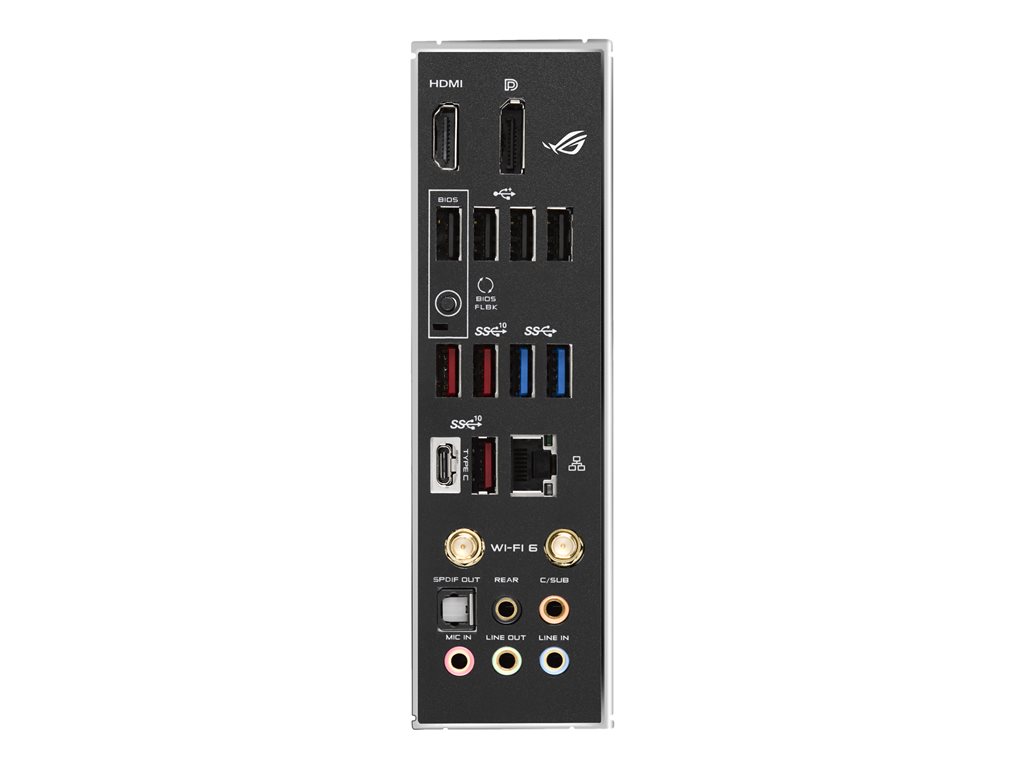

| Interfaces: | 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x TOSLINK ¦ 2 x USB 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 2 ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 4 x USB 2.0 |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 1 x USB-C Gen2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | BIOS FlashBack, UEFI BIOS |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), NVIDIA 2-way SLI Technology Support, Intel Turbo Boost Technology 2.0, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, Q-Code, SupremeFX Shielding technology, AMD 3-way CrossFireX technology support, Preboot eXecution Environment (PXE), ASUS Fan Xpert 4, ASUS SafeSlot, Intel Optane Memory Ready, Sonic Radar III, Sonic Studio III, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, DIY Friendly Design, FlexKey button, ASUS ProCool II, GameFirst VI |
| Miscellaneous | |

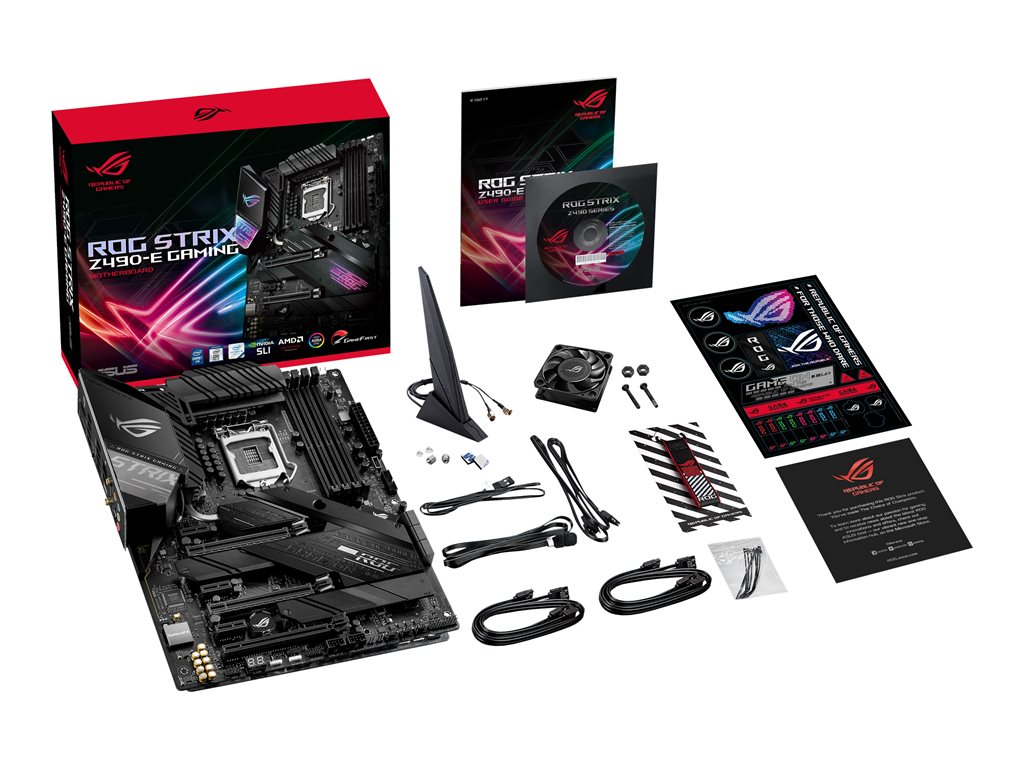

| Included Accessories: | External antenna, cable ties, 1 x M.2 screw, thermistor cable, ROG fan stickers, RGB (RGBW) LED strip extension cable, MOS cooling kit, ASUS fan holder, ROG thank you card, RGB Addressable LED extension cable, rubber pad, ROG key chain |
| Cables Included: | 4 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS AI Charger, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Overwolf, ASUS EZ Flash 3, Antivirus, WinRAR, ASUS ROG RAMCache III, Sonic Studio Virtual Mixer |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
ROG Strix Z490-E Gaming features AI enhancements and intuitive dashboards to help you overclock and tweak various parameters easily. Performance aside, ROG Strix Z490-E Gaming catches the eye, sporting cyberpunk inspired aesthetics including a mirrored stainless steel finish.
- Impedance sense
- High-quality output and input
- SupremeFX shielding
- Dual OP amplifiers
The technical details come from 3rd party. edgemo is not responsible for any errors.
