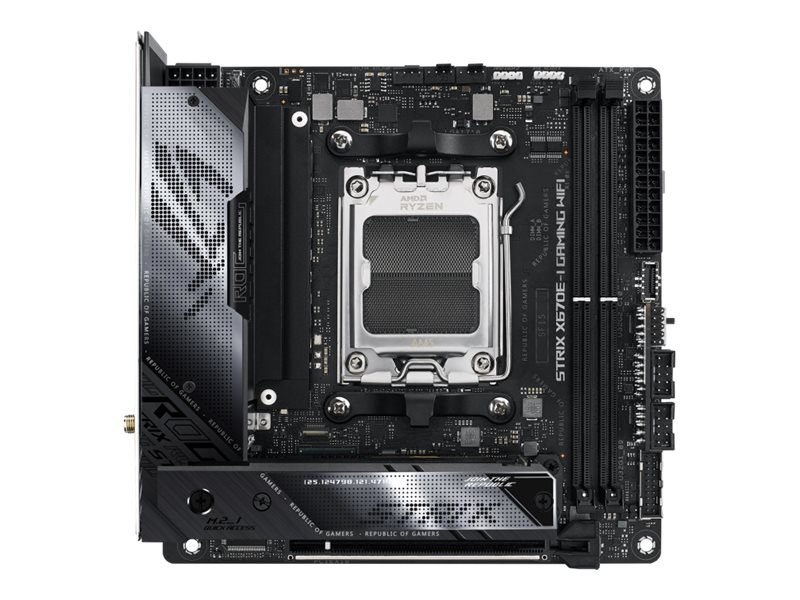

ASUS ROG Strix X670E-I Gaming WiFi - motherboard - mini ITX - Socket AM5 - AMD X670E

SKU 90MB1B70-M0EAY0
Product Description:ASUS ROG Strix X670E-I Gaming WiFi - motherboard - mini ITX - Socket AM5 - AMD X670E
Product Type:Motherboard - mini ITX
Chipset Type:AMD X670E
Processor Socket:1 x Socket AM5
Compatible Processors:Ryzen (supports Ryzen 7000 Series)
Max RAM Size:96 GB
RAM Supported:2 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered
12-05-2025
Login for price
  • Specifications
  • Description
  • Accessories
General
Product Type:Motherboard - mini ITX
Chipset Type:AMD X670E
Processor Socket:Socket AM5
Max Processors Qty:1
Compatible Processors:Ryzen (supports Ryzen 7000 Series)
Supported RAM
Max Size:96 GB
Technology:DDR5
Bus Clock:4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.)
Supported RAM Integrity Check:Non-ECC, on-die ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, AMD EXPO technology
Audio
Type:HD Audio
Audio Codec:Realtek ALC4050
Compliant Standards:High Definition Audio, DTS Sound Unbound
LAN
Network Controller:Intel I225-V
Network Interfaces:2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.2
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces:SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1
RAID Features:AMD RAID Xpert2 Technology
Interfaces:1 x HDMI ¦ 5 x USB 3.2 Gen 2 ¦ 3 x USB 2.0 ¦ 2 x USB4/DisplayPort ¦ 2 x aerial
Internal Interfaces:2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header
Power Connectors:24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS Type:AMI
BIOS Features:UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up:Wake on LAN (WOL), wake on PME
Hardware Features:ESS SABRE9260Q DAC, audio jack detect technology, ROG Hyper-Grounding technology, JHL8540 USB4 controller, ASUS Aura Sync, ASUS Fan Xpert 4, BIOS FlashBack button, BIOS FlashBack LED, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, Q-Slot, Q-DIMM, M.2 Q-Latch, 5K Black Metallic Capacitors, LANGuard, 10+2 Phase Power Design, 110A Power Stage, ASUS Enhanced Memory Profile (AEMP), ASUS DIGI+ VRM, 10 Layer PCB
Miscellaneous
Included Accessories:ASUS Wi-Fi moving aerial, thermal pad for M.2 SSD, cable ties, M.2 backplate Q-Latch, ROG key chain, ROG STRIX HIVE, ROG FPS-II Card
Cables Included:2 x Serial ATA cable ¦ USB 2.0 splitter cable
Software Included:ROG GameFirst VI, ROG CPU-Z, Sonic Studio III, Sonic Studio Virtual Mixer, Sonic Suite Companion, Sonic Radar III, Armoury Crate, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, MyAsus, WinRAR
Width:17 cm
Depth:17 cm
vis mere
The ROG Strix X670E-I Gaming WiFi crams advanced tech into the diminutive mini-ITX footprint and then branches out with the ROG Hive to put vital controls and I/O at your fingertips. At motherboard level, PCIe 5.0 slots for graphics and storage ride alongside dual-channel DDR5 to bring large-scale bandwidth to games and CPU-intensive workloads. Heavyweight power delivery and vertically stacked heatsinks crush thermals and lay a potent foundation for exclusive ROG overclocking tools to push performance boundaries. With all this and more, this tiny titan dishes up a space-saving AM5 build that allows you to comfortably host larger displays and a spread of ROG gaming peripherals on your desktop.
  • All-round performance
  • PCIe standard
  • AI Overclocking
  • Excellent connectivity
  • Dual USB4 ports
  • Wi-Fi 6E
  • Intel 2.5G Ethernet
  • Play in style




The technical details come from 3rd party. edgemo is not responsible for any errors.
