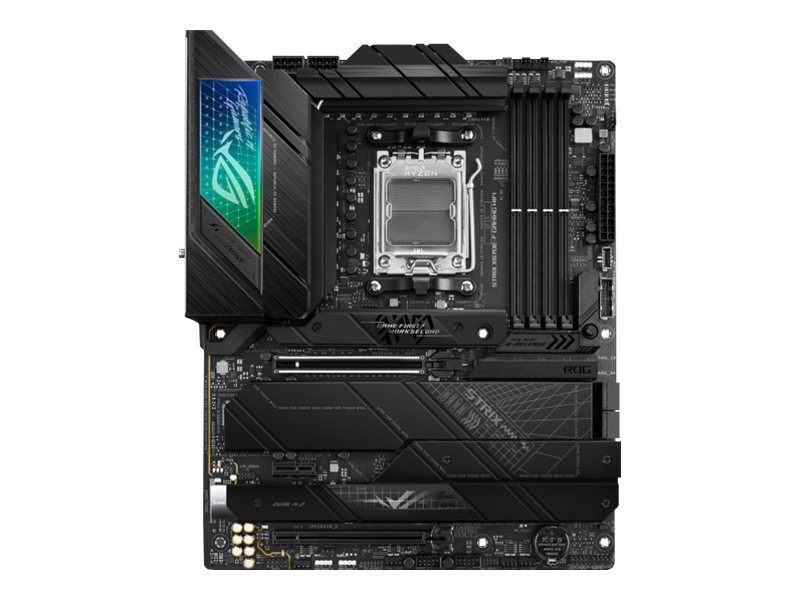

Printers & POSASUS ROG Strix X670E-F Gaming WiFi - motherboard - ATX - Socket AM5 - AMD X670E
SKU 90MB1BA0-M0EAY0
| Product Description: | ASUS ROG Strix X670E-F Gaming WiFi - motherboard - ATX - Socket AM5 - AMD X670E |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD X670E |
| Processor Socket: | 1 x Socket AM5 |
| Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
| Max RAM Size: | 192 GB |
| RAM Supported: | 4 DIMM slots - DDR5, non-ECC, on-die ECC, ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD X670E |
| Processor Socket: | Socket AM5 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | |
| Max Size: | 192 GB |
| Technology: | DDR5 |
| Bus Clock: | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC, on-die ECC, ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, AMD EXPO technology |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC4080 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| RAID Features: | AMD RAID Xpert2 Technology |
| Interfaces: | 2 x aerial ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 7 x USB 3.2 Gen 2 ¦ 2 x USB-C 3.2 Gen 2 ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x SPDIF out ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
| Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | ASUS OptiMem II, LANGuard, jack retasking, audio jack detect technology, Savitech SV3H712 amplifier, Clear CMOS Button, BIOS FlashBack button, Water Pump Header, ASUS Extreme Engine Digi+, ASUS Q-Design, M.2 Q-Latch, PCIe Slot Q-Release, Q-Code, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack LED, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, CrashFree BIOS 3, FlexKey button, Preboot eXecution Environment (PXE), 16+2 Phase Power Design, 90A Power Stage, DIY Friendly Design, ASUS Enhanced Memory Profile (AEMP), 5K Black Metallic Capacitors |
| Miscellaneous | |
| Included Accessories: | Thermal pad for M.2 SSD, ASUS Wi-Fi moving aerial, cable ties, M.2 backplate Q-Latch, M.2 Q-Latch, ROG key chain, STRIX stickers, ROG thank you card, 2 x M.2 rubber package, M.2 backplate rubber package |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | ROG GameFirst VI, ROG CPU-Z, ASUS AI Suite III, Sonic Radar III, Sonic Studio III, Sonic Studio Virtual Mixer, Sonic Suite Companion, Antivirus, AIDA64 Extreme (60 days trial), ASUS AURA Creator, Armoury Crate, ASUS Fan Xpert 4, ASUS Turbo App, PC Cleaner, WinRAR, MyAsus |
| Compliant Standards: | DisplayPort 1.4, FCC Part 15 Class B, VCCI Class B ITE, JATE, EU REACH, UKCA, EU RoHS, WEEE |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
The ROG Strix X670E-F gaming Wi-Fi is the stealthy alter ego of the Strix X670E-A. A substantial power buff relays its inner demon, giving exclusive ROG overclocking utilities even more headroom to unleash the potential of AMD Ryzen 7000 series processors. And its black PCB and dark metallic heatsinks aesthetically match a wider variety of system hardware and build themes, while a dash of customizable color on its shroud subtly announces an ROG presence in your AM5 build.
- 16 + 2 teamed power solution rated for 90A per stage
- An x16 slot and two on-board M.2 slots are PCIe Gen 5-ready
- Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
- 6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP
- Faster-than-Gigabit Wi-Fi that unlocks access to the low-interference 6 GHz band
- AI Cooling II uniquely balances noise and thermals for your system with a single click
- Easy installation for GPUs and SSDs, plus simple BIOS resets and updates
