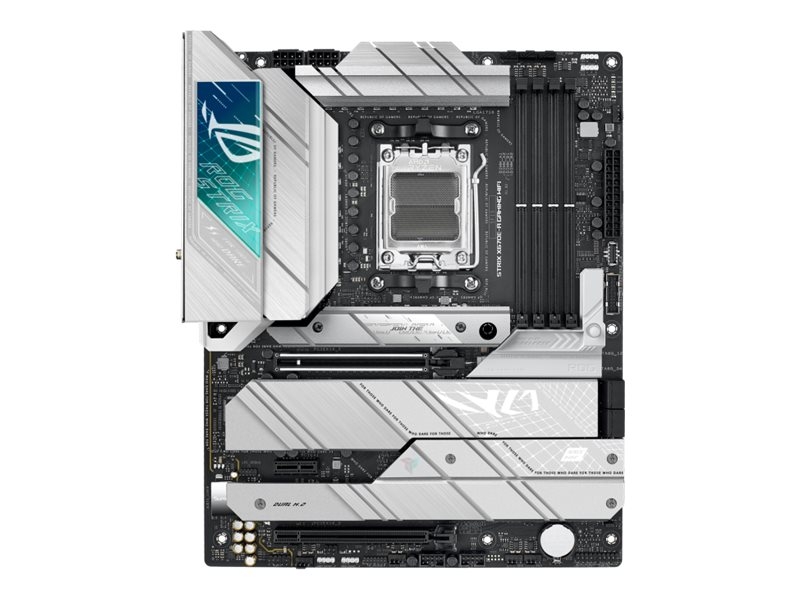

Printers & POSASUS ROG Strix X670E-A Gaming WiFi - motherboard - ATX - Socket AM5 - AMD X670E
SKU 90MB1BM0-M0EAY0
| Product Description: | ASUS ROG Strix X670E-A Gaming WiFi - motherboard - ATX - Socket AM5 - AMD X670E |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD X670E |
| Processor Socket: | 1 x Socket AM5 |
| Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
| Max RAM Size: | 192 GB |
| RAM Supported: | 4 DIMM slots - DDR5, non-ECC, ECC, ECC (operate in non-ECC mode), on-die ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD X670E |
| Processor Socket: | Socket AM5 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | |
| Max Size: | 192 GB |
| Technology: | DDR5 |
| Bus Clock: | 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz, 5000 MHz |
| Supported RAM Integrity Check: | Non-ECC, ECC, ECC (operate in non-ECC mode), on-die ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, supported ECC modules operate in non-ECC mode, AMD EXPO technology |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC4080 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Intel I225-V |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 7 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x aerial ¦ 1 x SPDIF out ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
| Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, 16+2 Phase Power Design, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding technology, Preboot eXecution Environment (PXE), 8 Layer PCB, Clear CMOS Button, LANGuard, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, Water Pump Header, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, DIY Friendly Design, FlexKey button, ASUS ProCool II, 70A Power Stage, Savitech SV3H712 amplifier, M.2 Q-Latch, 5K Black Metallic Capacitors, PCIe Slot Q-Release, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, ASUS Enhanced Memory Profile (AEMP) |
| Miscellaneous | |
| Included Accessories: | Cable ties, STRIX stickers, ROG thank you card, thermal pad for M.2 SSD, ROG key chain, ASUS Wi-Fi moving aerial, M.2 Q-Latch, 2 x M.2 rubber package, M.2 backplate rubber package, M.2 backplate Q-Latch |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 days trial), ASUS AURA Creator, Sonic Suite Companion, MyAsus, Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS Fan Xpert 4 |
| Compliant Standards: | VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, UKCA, EU REACH |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
Suit up for the next gen with the stylish ROG Strix X670E-A gaming WiFi. Its black PCB and white accents neatly contrast silver-colored heatsinks that emphasize premium power delivery for AMD Ryzen 7000 series processors. Exclusive ROG overclocking utilities, full PCIe 5.0 capabilities, and DDR5 support are woven in alongside, adding uniquely tailored performance and AM5 essentials to your gaming build.
- 16+2 teamed power solution rated for 70 A per stage
- Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance
- AI Cooling II uniquely balances noise and thermals for your system with a single click
- An x16 slot and two onboard M.2 slots are PCIe Gen 5-ready
- AMD EXPO and AEMP
- Easy installation for GPUs and SSDs, plus simple BIOS resets and updates
- Faster-than-Gigabit Wi-Fi that unlocks access to the low-interference 6 GHz band
