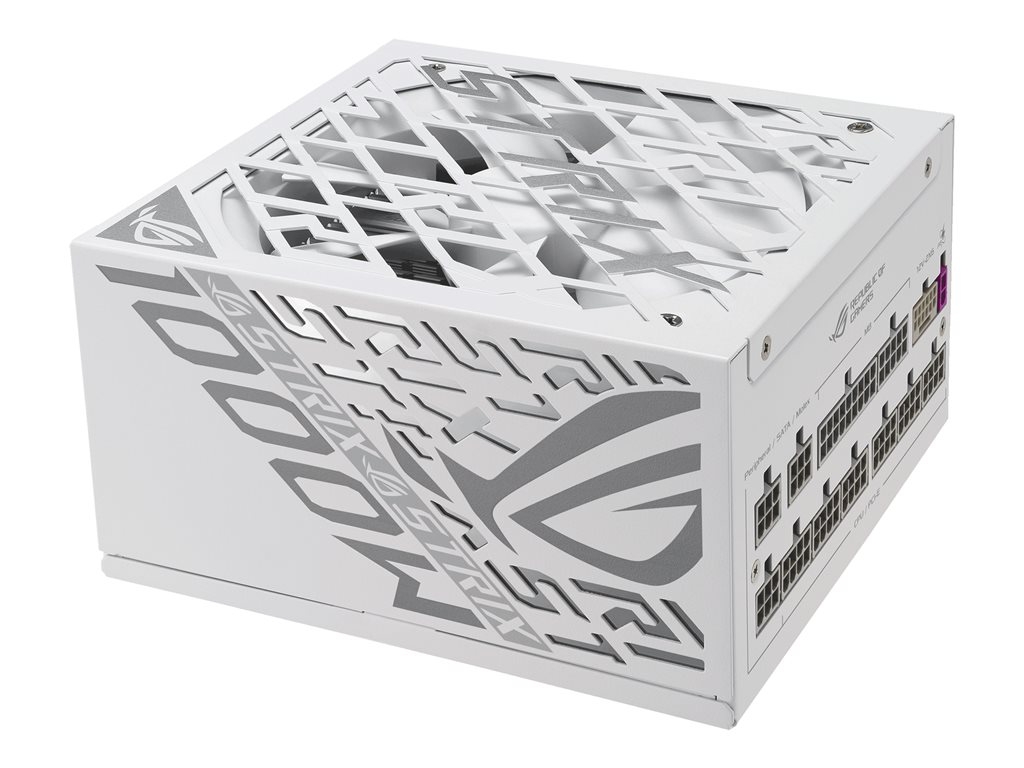

Printers & POSASUS ROG Strix - White Edition - power supply - 1000 Watt
SKU 90YE00W4-B0NA00
| Product Description: | ASUS ROG Strix - White Edition - power supply - 1000 Watt |
| Device Type: | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance: | ATX12V 3.1 |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Weight: | 1.81 g |
| Input Voltage: | AC 100-240 V |
| Output Voltage: | +3.3, +5, ±12 V |
- Specifications
- Description
| General | |
| Device Type: | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance: | ATX12V 3.1 |
| PSU Form Factor: | ATX |
| Colour: | White |
| Power Device | |
| Input Voltage: | AC 100-240 V |
| Power Output Connectors Details: | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power ¦ 6 x 15 pin Serial ATA power ¦ 3 x Molex |
| Output Voltage: | +3.3, +5, ±12 V |
| Power Capacity: | 1000 Watt |
| Output Current: | +3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83.3 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Modular Cable Management: | Yes |
| 80 PLUS Certification: | 80 PLUS Platinum |
| Miscellaneous | |
| Included Accessories: | ROG Strix DIY sticker |
| Cables Included: | AC input cable - external ¦ Power 24 pin ATX with detachable 4 pin section modular cable 61 cm ¦ 2 x power 8 pin CPU cable 100 cm ¦ 16-pin PCIe 5.1 cable 75 cm ¦ 4 x PCIe x8 cable 75 cm ¦ 2 x power 15 pin SATA cable 62 cm ¦ Molex power cable 65 cm |
| MTBF: | 120,000 hours |
| Features: | Overpower protection, over voltage protection, undervoltage protection, short-circuit protection, over current protection, overheat protection, ROG heatsink, 0dB fan button, dual ball bearing cooling fan, GaN MOSFET, Lambda A++ Certification, voltage stabiliser |
| Compliant Standards: | RoHS |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 10 years |
| Dimensions & Weight | |
| Width: | 15 cm |
| Depth: | 16 cm |
| Height: | 8.6 cm |
| Weight: | 1.81 g |
The ROG Strix 1000 W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high efficiency Axial-tech fan, and a striking aluminum finish, it's a pumped-and-primed PSU powerhouse for your next gaming rig.
- Built to run cool
- Heart of gold
- Outshine the competition
The technical details come from 3rd party. edgemo is not responsible for any errors.
