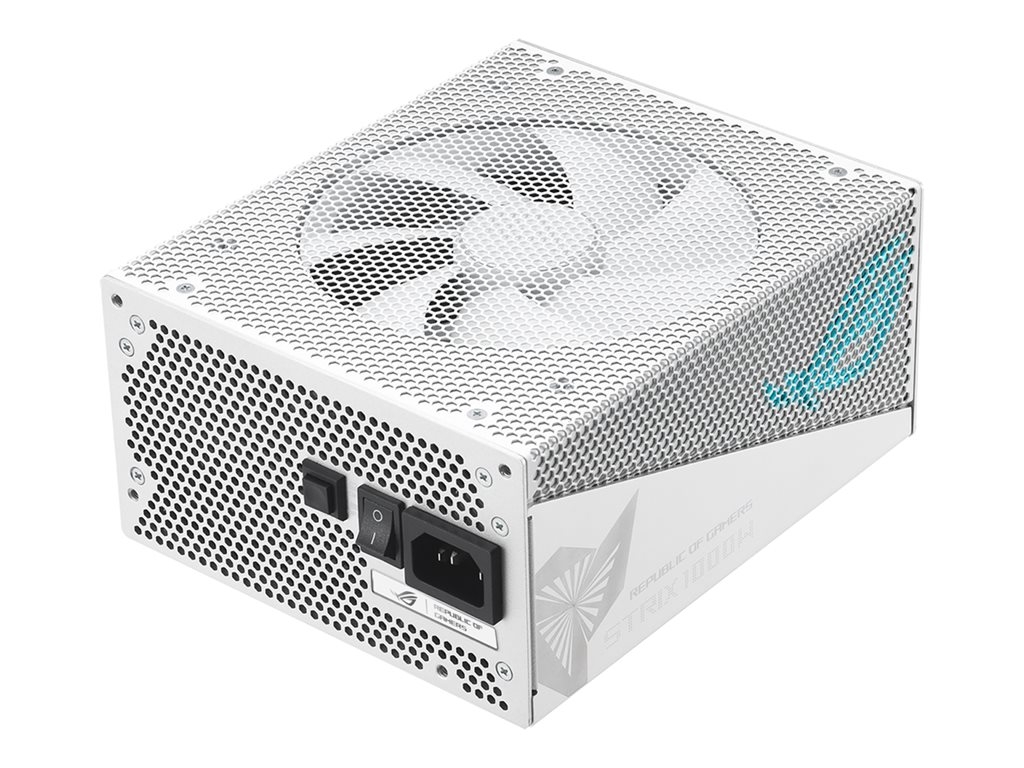

ASUS ROG Strix - White Edition - power supply - 1000 Watt

SKU 90YE00P5-B0NA00

Product Description:	ASUS ROG Strix - White Edition - power supply - 1000 Watt
Device Type:	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:	ATX12V 3.0/ EPS12V
80 PLUS Certification:	80 PLUS Gold
Weight:	3.03 kg
Input Voltage:	AC 100-240 V
Output Voltage:	+3.3, +5, ±12 V

Not in stock

Specifications
Description
Accessories

General
Device Type:	Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:	ATX12V 3.0/ EPS12V
PSU Form Factor:	ATX
Colour:	White

Power Device
Input Voltage:	AC 100-240 V
Power Output Connectors Details:	1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power ¦ 5 x 15 pin Serial ATA power ¦ 4 x 4 PIN internal power
Output Voltage:	+3.3, +5, ±12 V
Power Capacity:	1000 Watt
Output Current:	+3.3V - 22 A ¦ +5V - 22 A ¦ +12V - 83.3 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Modular Cable Management:	Yes
80 PLUS Certification:	80 PLUS Gold

Miscellaneous
Cables Included:	AC input cable - external ¦ Power 24 pin ATX with detachable 4 pin section modular cable 60 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 65 cm ¦ 16-pin 12VHPWR power cable 70 cm ¦ 2x 8 pin PCI Express power with detachable 2 pin section modular cable 70 cm ¦ 2 x 8 pin PCI Express power with detachable 2 pin section modular cable 70 cm ¦ ARGB sync cable 80 cm ¦ 3x Serial ATA modular cable ¦ 2x Serial ATA modular cable ¦ 4 pin internal power cable
Cooling System:	135 mm fan
Features:	Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ASUS Aura Sync, ROG heatsink, Axial-tech fan design, aluminium enclosure, 0dB fan button
Compliant Standards:	RoHS, PCIe

Manufacturer Warranty
Service & Support:	Limited warranty - 10 years

Dimensions & Weight
Width:	15 cm
Depth:	18 cm
Height:	8.6 cm
Weight:	3.03 kg

vis mere

The ROG Strix 1000 W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high efficiency Axial-tech fan, and a striking aluminum finish, it's a pumped-and-primed PSU powerhouse for your next gaming rig.

Built to run cool
Heart of gold
Outshine the competition

The technical details come from 3rd party. edgemo is not responsible for any errors.
