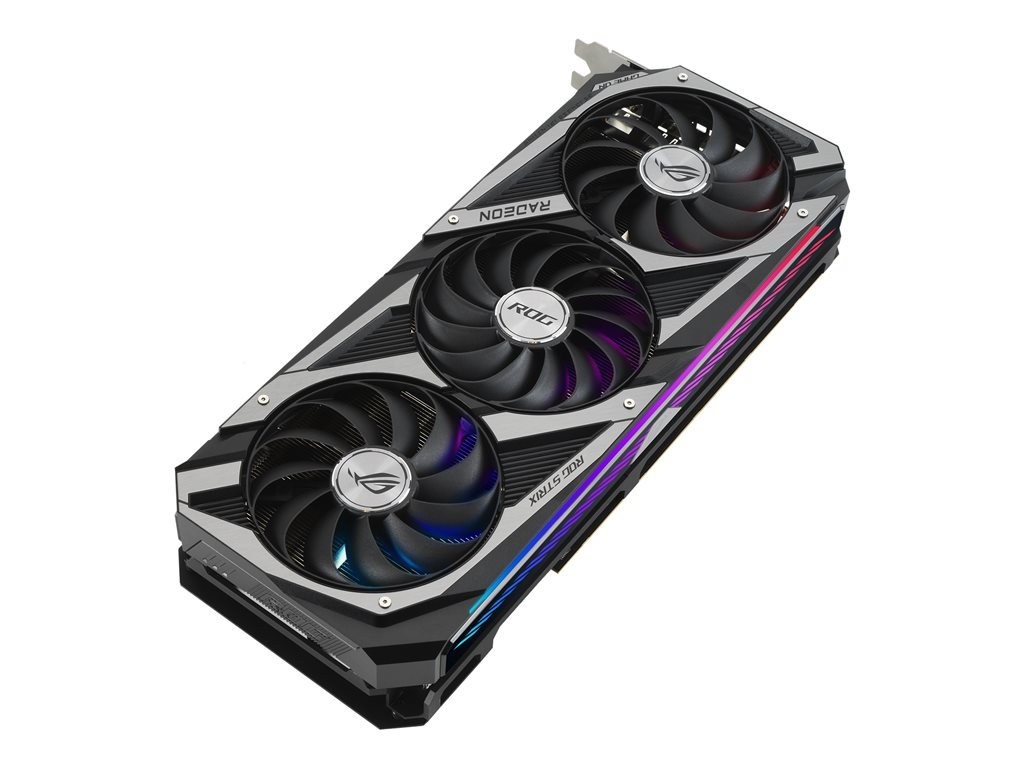

Printers & POSASUS ROG-STRIX-RX6800-O16G-GAMING - OC Edition - graphics card - Radeon RX 6800 - 16 GB
SKU 90YV0FM0-M0NA00
| Product Description: | ASUS ROG-STRIX-RX6800-O16G-GAMING - OC Edition - graphics card - Radeon RX 6800 - 16 GB |
| Device Type: | Graphics card |
| Bus Type: | PCI Express 4.0 x16 |
| Graphics Engine: | AMD Radeon RX 6800 |
| Memory: | 16 GB GDDR6 |
| Memory Speed: | 16 Gbps |
| Boost Clock: | 2190 MHz |
- Specifications
- Description
| General | |
| Device Type: | Graphics card |
| Bus Type: | PCI Express 4.0 x16 |
| Graphics Engine: | AMD Radeon RX 6800 |
| Boost Clock: | 2190 MHz |
| Stream Processors: | 3840 |
| Max Resolution: | 7680 x 4320 |
| Max Monitors Supported: | 4 |
| Interfaces: | HDMI ¦ 3 x DisplayPort |
| API Supported: | Vulkan, OpenGL 4.6 |
| Features: | Dual Bios, AMD CrossFireX Technology, FreeSync Technology, Super Alloy Power II technology, MaxContact technology, ASUS FanConnect II, variable rate shading (VRS), Axial-tech Fan Design, 0dB Technology, Radeon Boost, Radeon Image Sharpening, Radeon Anti-Lag, 2.9-slot Fan Cooler, RDNA 2 Architecture, DirectX Raytracing (DXR), Contrast Adaptive Sharpening (CAS), Temporal Anti-Aliasing (TAA), HDCP |
| Memory | |
| Size: | 16 GB |
| Technology: | GDDR6 SDRAM |
| Memory Speed: | 16 Gbps |
| Bus Width: | 256-bit |
| System Requirements | |
| Required Power Supply: | 650 W |
| Additional Requirements: | 2 x 8 pin PCI Express power connector |
| Miscellaneous | |
| Included Accessories: | ROG touch fastener, collection card, ROG ruler |
| Compliant Standards: | HDCP 2.3, DisplayPort 1.4a |
| Width: | 5.73 cm |
| Depth: | 32 cm |
| Height: | 12.87 cm |
The ROG Strix Radeon RX 6800 merges an industry-leading cooling solution with high-end power performance and additional creature comforts. Beneath the surface, a massive heatsink is cooled by a trio of Axial-tech fans that utilize a new rotation scheme and specialized roles for central and auxiliary fans. At the heart of the beast, top-shelf capacitors, chokes, and MOSFETs effortlessly deliver hundreds of watts at a millisecond's notice. A host of convenient features, including a Dual BIOS switch, 0dB mode, FanConnect PWM headers, and metal backplate, make this frame-crunching colossus an ideal choice for DIY builders.
- Bigger, better cooling
- MaxContact
- 2.9-slot design
- Premium components
- FanConnect II
- Fierce shroud
- Armored underside
- Gnarly grill
- GPU Tweak II
The technical details come from 3rd party. edgemo is not responsible for any errors.
