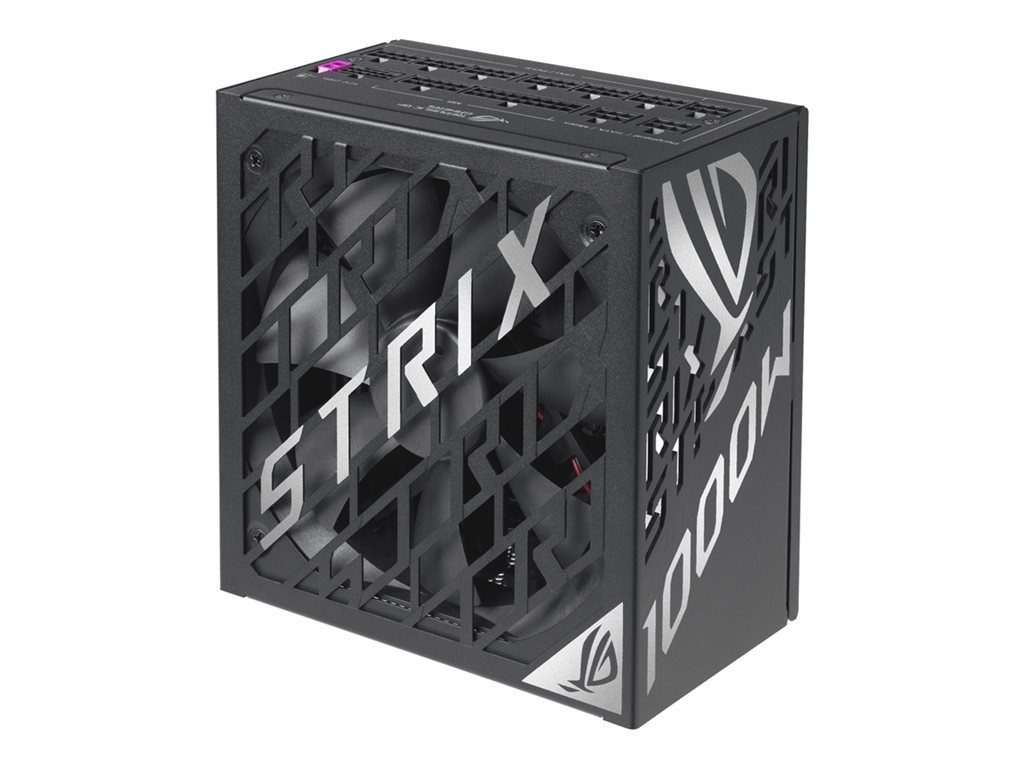

ASUS ROG Strix - power supply - 1000 Watt

SKU 90YE00W1-B0NA00
Product Description:ASUS ROG Strix - power supply - 1000 Watt
Device Type:Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:ATX12V 3.1/ EPS12V
80 PLUS Certification:80 PLUS Platinum
Weight:2.91 kg
Input Voltage:AC 100-240 V
Output Voltage:+3.3, +5, ±12 V, -12V, +5Vsb V
23-06-2025
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:ATX12V 3.1/ EPS12V
PSU Form Factor:ATX
Power Device
Input Voltage:AC 100-240 V
Power Output Connectors Details:1 x power 24 pin ATX ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 16 pin PCI Express power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power
Output Voltage:+3.3, +5, ±12 V, -12V, +5Vsb V
Power Capacity:1000 Watt
Output Current:+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 100 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Efficiency:92%
Modular Cable Management:Yes
80 PLUS Certification:80 PLUS Platinum
Miscellaneous
Included Accessories:ROG Strix DIY sticker
Cables Included:AC power cable ¦ Power 24 pin ATX modular cable 61 cm ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 1 m ¦ 16-pin 12VHPWR power modular cable 75 cm ¦ 4 x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm ¦ 2 x 15 pin Serial ATA power modular cable 64 cm ¦ 4 pin power modular cable 70 cm
MTBF:120,000 hours
Features:Dual ball bearing cooling fan, fully modular, overpower protection, over voltage protection, undervoltage protection, short-circuit protection, over current protection, overheat protection, 0dB fan button, Zero RPM fan mode, GaN MOSFET, GPU-FIRST voltage stabiliser, Cybenetics A+
Compliant Standards:RoHS, UL 1581, UL 758
Manufacturer Warranty
Service & Support:Limited warranty - 10 years
Dimensions & Weight
Width:15 cm
Depth:16 cm
Height:8.6 cm
Weight:2.91 kg
vis mere
The ROG Strix 1000 W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high efficiency Axial-tech fan, and a striking aluminum finish, it's a pumped-and-primed PSU powerhouse for your next gaming rig.
  • Built to run cool
  • Heart of gold
  • Outshine the competition




The technical details come from 3rd party. edgemo is not responsible for any errors.
