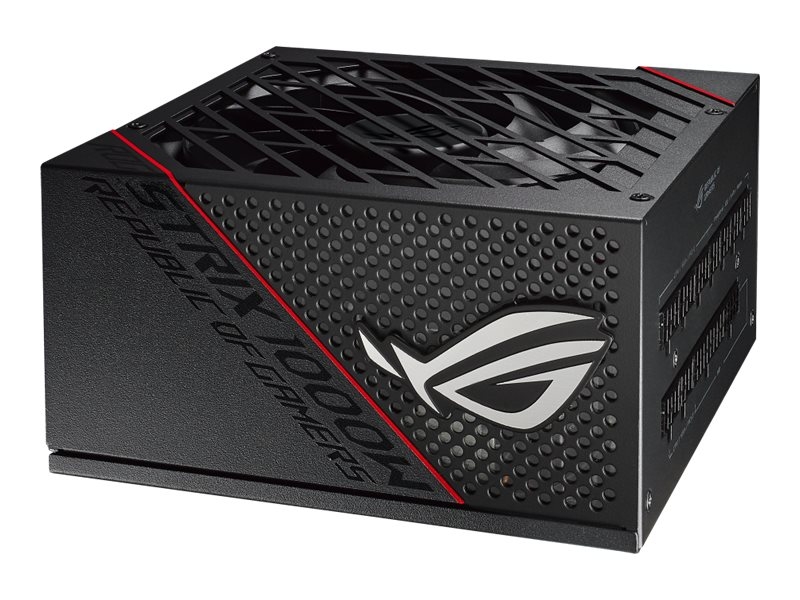

ASUS ROG Strix - power supply - 1000 Watt

SKU 90YE00AA-B0NA00
Product Description:ASUS ROG Strix - power supply - 1000 Watt
Device Type:Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:ATX12V
80 PLUS Certification:80 PLUS Gold
Weight:1.885 kg
Input Voltage:AC 100-240 V
Output Voltage:+3, +5, ±12 V
30-12-2024
  • Specifications
  • Description
General
Device Type:Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance:ATX12V
PSU Form Factor:ATX
Power Device
Input Voltage:AC 100-240 V
Power Output Connectors Details:1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 8 x 15 pin Serial ATA power ¦ 6 x 4 PIN internal power
Output Voltage:+3, +5, ±12 V
Power Capacity:1000 Watt
Output Current:+3.3V - 25 A ¦ +5V - 25 A ¦ +12V - 83 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A
Modular Cable Management:Yes
80 PLUS Certification:80 PLUS Gold
Miscellaneous
Included Accessories:2 x ROG badges, ROG logo magnet, 3 x ROG labels
Cables Included:AC power cable ¦ Power 24 pin ATX with detachable 4 pin section modular cable 61 cm ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section modular cable 1 m ¦ 3 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm ¦ Power 15 pin SATA cable 86 cm ¦ Power 15 pin SATA cable 81 cm ¦ 2 x 4 pin internal power cable 69 cm
Cooling System:135 mm fan
Features:Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, dual ball bearing cooling fan, fully modular, ROG heatsink, Axial-tech fan design, 0db Technology
Compliant Standards:RoHS
Manufacturer Warranty
Service & Support:Limited warranty - 10 years
Dimensions & Weight
Width:15 cm
Depth:16 cm
Height:8.6 cm
Weight:1.885 kg
vis mere
The ROG Strix 1000 W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high efficiency Axial-tech fan, and a striking aluminum finish, it's a pumped-and-primed PSU powerhouse for your next gaming rig.
  • Built to run cool
  • Heart of gold
  • Outshine the competition




The technical details come from 3rd party. edgemo is not responsible for any errors.
