Printers & POSASUS ROG-STRIX-LC-RX6800XT-O16G-GAMING - graphics card - Radeon RX 6800 XT - 16 GB
SKU 90YV0FL0-M0NM00
| Product Description: | ASUS ROG-STRIX-LC-RX6800XT-O16G-GAMING - graphics card - Radeon RX 6800 XT - 16 GB |
| Device Type: | Graphics card |
| Bus Type: | PCI Express 4.0 x16 |
| Graphics Engine: | AMD Radeon RX 6800 XT |
| Memory: | 16 GB GDDR6 |
| Memory Speed: | 16 Gbps |
| Boost Clock: | 2360 MHz |
- Specifications
- Description
| General | |
| Device Type: | Graphics card |
| Bus Type: | PCI Express 4.0 x16 |
| Graphics Engine: | AMD Radeon RX 6800 XT |
| Boost Clock: | 2360 MHz |
| Stream Processors: | 4608 |
| VR Ready: | Yes |
| Max Resolution: | 7680 x 4320 |
| Max Monitors Supported: | 4 |
| Interfaces Details: | HDMI ¦ 2 x DisplayPort ¦ USB-C |
| API Supported: | DirectX 12, Vulkan, OpenGL 4.6 |
| Features: | Liquid cooling system, 2.2 x slot Fan Cooler, FreeSync Technology, Super Alloy Power II technology, AUTO-EXTREME technology, ASUS FanConnect II, variable rate shading (VRS), Radeon Boost, Radeon Image Sharpening, Radeon Anti-Lag, AMD FidelityFx, RDNA 2 Architecture, AMD Infinity Cache, DirectX Raytracing (DXR), Contrast Adaptive Sharpening (CAS), Temporal Anti-Aliasing (TAA), Ambient Occlusion (CACAO), HDCP |
| Memory | |
| Size: | 16 GB |
| Technology: | GDDR6 SDRAM |
| Memory Speed: | 16 Gbps |
| Bus Width: | 256-bit |
| System Requirements | |
| Required Power Supply: | 750 W |
| Additional Requirements: | 2 x 8 pin PCI Express power connector |
| Miscellaneous | |
| Included Accessories: | Cable tie, ROG touch fastener, collection card, ROG ruler |
| Compliant Standards: | HDCP 2.3, DisplayPort 1.4a |
| Width: | 4.36 cm |
| Depth: | 27.7 cm |
| Height: | 13.08 cm |

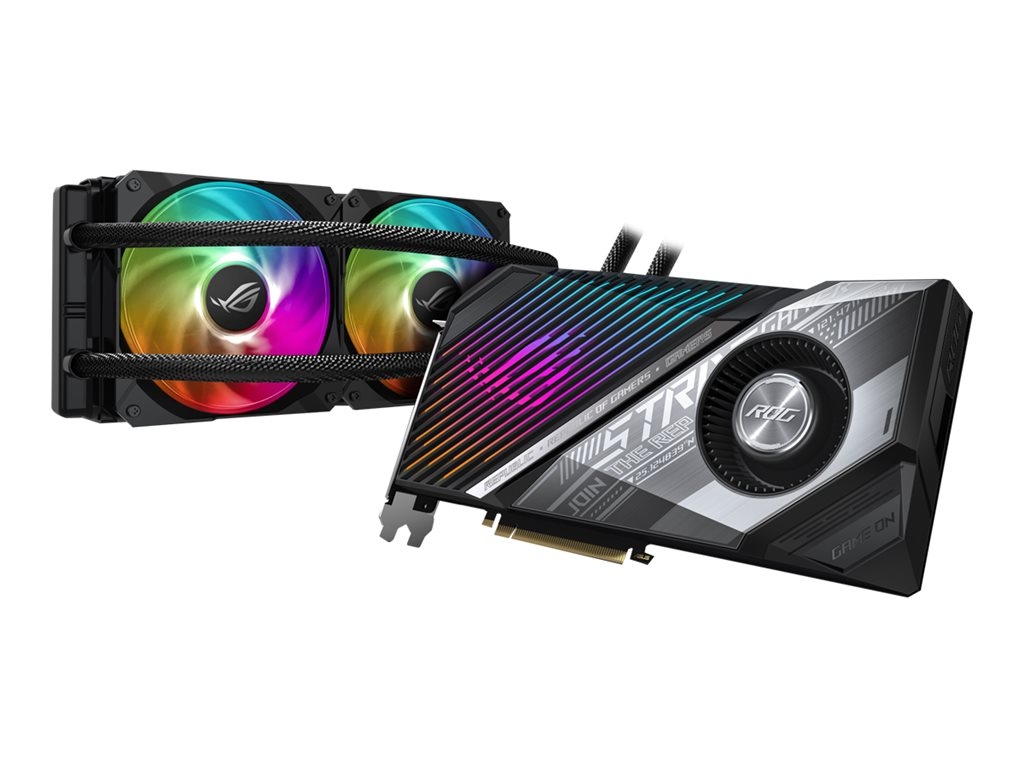

ROG Strix LC Radeon RX 6800 XT is a liquid-cooled leviathan.
- Full-coverage cold plate brings liquid cooling to GPU die and memory
- Onboard cooling for power-delivery is handled by a blower-style fan and low-profile heatsink
- 240 mm radiator balances compatibility and performance
- 600 mm tubing for compatibility with EATX chassis and alternative mounts
- Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages
- ASUS FanConnect II equips a hybrid-controlled fan header for optimal system cooling
- GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring
The technical details come from 3rd party. edgemo is not responsible for any errors.
