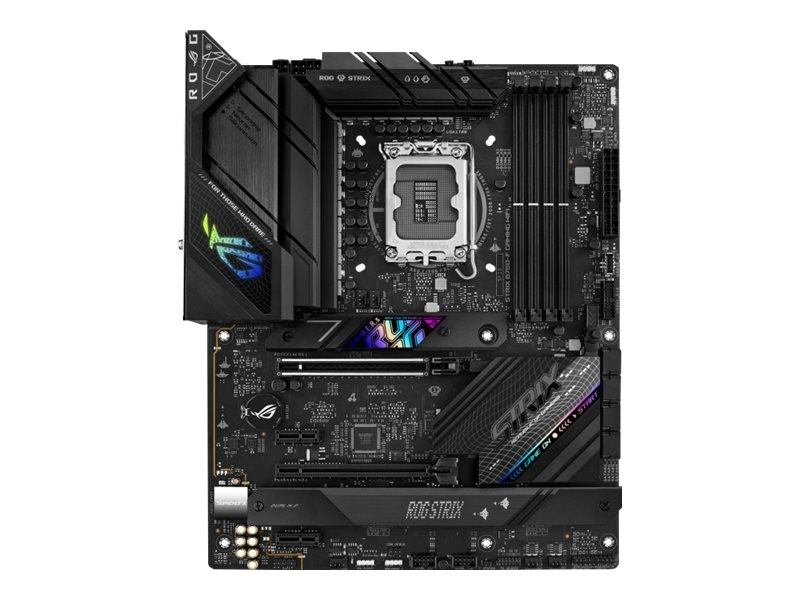

ASUS ROG STRIX B760-F GAMING WIFI - motherboard - ATX - LGA1700 Socket - B760

SKU 90MB1CT0-M0EAY0
Product Description:ASUS ROG STRIX B760-F GAMING WIFI - motherboard - ATX - LGA1700 Socket - B760
Product Type:Motherboard - ATX
Chipset Type:Intel B760
Processor Socket:1 x LGA1700 Socket
Compatible Processors:(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size:128 GB
RAM Supported:4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Product Type:Motherboard - ATX
Chipset Type:Intel B760
Processor Socket:LGA1700 Socket
Max Processors Qty:1
Compatible Processors:(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size:128 GB
Technology:DDR5
Bus Clock:4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.)
Supported RAM Integrity Check:Non-ECC, on-die ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type:HD Audio (8-channel)
Audio Codec:SupremeFX (ALC4080)
Compliant Standards:High Definition Audio, DTS Sound Unbound
LAN
Network Interfaces:2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces:SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2
RAID Features:Intel Rapid Storage Technology
Interfaces:1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 6 x USB 3.2 Gen 1 ¦ 2 x aerial ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out
Internal Interfaces:1 x USB 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header
Power Connectors:24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
Features
BIOS Type:AMI
BIOS Features:UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode, MemTest86
Sleep / Wake Up:Wake on PME
Hardware Features:Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS OptiMem II, LANGuard, audio jack detect technology, jack retasking, SupremeFX Shielding technology, Savitech SV3H712 amplifier, BIOS FlashBack button, Clear CMOS Button, Water Pump Header, 5K Black Metallic Capacitors, ASUS Aura Sync, ASUS Extreme Engine Digi+, ASUS EZ DIY, ASUS ProCool, ASUS Q-Design, ASUS SafeSlot, BIOS FlashBack LED, CPU Socket lever protector, M.2 heatsink, M.2 Q-Latch, PCIe Slot Q-Release, pre-mounted I/O shield, Q-DIMM, Q-LED, Q-Slot, SafeDIMM, VRM heatsink design, CrashFree BIOS 3, 16+1 Phase Power Design, 60A Power Stage, 6 Layer PCB
Miscellaneous
Included Accessories:Thermal pad for M.2 SSD, ASUS Wi-Fi moving aerial, cable ties, M.2 Q-Latch, 2 x M.2 rubber package, ROG key chain, STRIX stickers, ROG thank you card
Cables Included:2 x Serial ATA cable
Software Included:ROG GameFirst VI, ROG CPU-Z, Sonic Studio III, Sonic Studio Virtual Mixer, Sonic Suite Companion, Sonic Radar III, Armoury Crate, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, PC Cleaner, MyAsus, Norton 360 for Gamers, WinRAR
Compliant Standards:DisplayPort 1.4
Width:30.5 cm
Depth:24.4 cm
vis mere
Leap into the future with the ROG STRIX B760-F, a fantastic upgrade into 13th Gen with its dominant power solution and best-in-class DDR5 speeds. Its next-gen PCIe 5.0 slot gives overwhelming graphics card throughput for maximum FPS, and you can minimize lag via hyper fast Wi-Fi 6E or 2.5G LAN. All these perks come alongside distinctive rainbow stripes and retro accents so you can show off your gamer pride.
  • Power architecture
  • Alloy chokes and durable capacitors
  • Six-layer PCB
  • DDR5 domination
  • AEMP II
  • VRM heatsink array
  • M.2 heatsinks
  • CPU fan headers
  • AIO pump fan header
  • 4-pin fan headers
  • PCIe performance
  • Wi-Fi 6E technology
  • Intel 2.5G Ethernet
  • ROG SupremeFX
  • Undeniably ROG STRIX
  • Outshine the competition




The technical details come from 3rd party. edgemo is not responsible for any errors.
