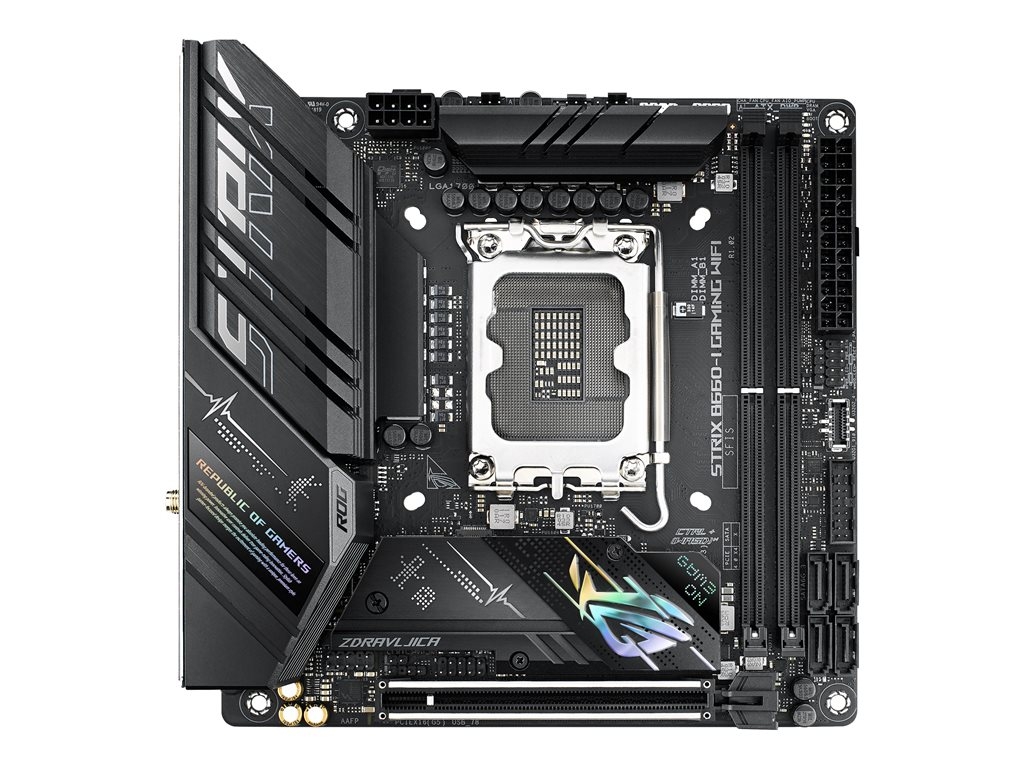

Printers & POSASUS ROG STRIX B660-I GAMING WIFI - motherboard - mini ITX - LGA1700 Socket - B660
SKU 90MB19C0-M0EAY0
| Product Description: | ASUS ROG STRIX B660-I GAMING WIFI - motherboard - mini ITX - LGA1700 Socket - B660 |
| Product Type: | Motherboard - mini ITX |
| Chipset Type: | Intel B660 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 64 GB |
| RAM Supported: | 2 DIMM slots - DDR5, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - mini ITX |
| Chipset Type: | Intel B660 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR5 |
| Bus Clock: | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | SupremeFX (S1220A) |
| Compliant Standards: | High Definition Audio, DTS Sound Unbound |
| LAN | |
| Network Controller: | Intel I225-V |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2x2 ¦ 3 x USB 2.0 ¦ 3 x USB 3.2 Gen 1 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x USB-C Gen1 |
| Internal Interfaces: | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header ¦ 1 x speaker - header ¦ 1 x SPDIF out - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3, MemTest86 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, SupremeFX Shielding technology, Preboot eXecution Environment (PXE), 8 Layer PCB, ASUS Fan Xpert 4, ASUS SafeSlot, Intel Optane Memory Ready, Sonic Radar III, Sonic Studio III, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, 8+1 Phase Power Design, ASUS OptiMem II, Armoury Crate, DIY Friendly Design, GameFirst VI, Savitech SV3H712 amplifier, M.2 Q-Latch, Windows 11 compatible, CPU Socket lever protector |
| Miscellaneous | |
| Included Accessories: | Cable ties, 2 x M.2 screws, M.2 bracket, STRIX stickers, ROG thank you card, ROG key chain, ASUS Wi-Fi moving aerial, panel cable |
| Cables Included: | 2 x Serial ATA cable ¦ 1 x USB 2.0 splitter cable |
| Software Included: | Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, ASUS EZ Flash 3, Antivirus, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 days trial), ASUS AURA Creator, Sonic Suite Companion, MyAsus |
| Width: | 17 cm |
| Depth: | 17 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
The ROG Strix B660-I Gaming WiFi packs premium-grade power delivery into a compact mini-ITX form factor to unleash the full force of 12th Gen Intel Core processors. Framerates and load times can be boosted even further by support for DDR5 memory and PCIe 5.0, plus AI-enhanced controls and exclusive ASUS Enhanced Memory Profile tuning. Meanwhile, onboard WiFi 6 and two PCIe 4.0 M.2 slots bring lightning-fast performance to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process, so even novice builders can get right into serious gaming.
- Intel LGA 1700 socket: Ready for 12th Gen Intel Core, Pentium Gold and Celeron processors
- Optimal power solution: 8+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized thermal design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, one onboard M.2 heatsink, and one M.2 backplate
- High-performance networking: On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Perfect gaming connectivity: Supports HDMI 2.1 and DisplayPort 1.4 output, two M.2 slots, as well as USB 3.2 Gen 2x2 Type-C
- Intelligent control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY friendly design: M.2 Q-Latch, pre-mounted I/O shield, and Q-LED
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and an addressable Gen 2 RGB header
- Advanced gaming audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS Sound Unbound and Sonic Studio III
The technical details come from 3rd party. edgemo is not responsible for any errors.
