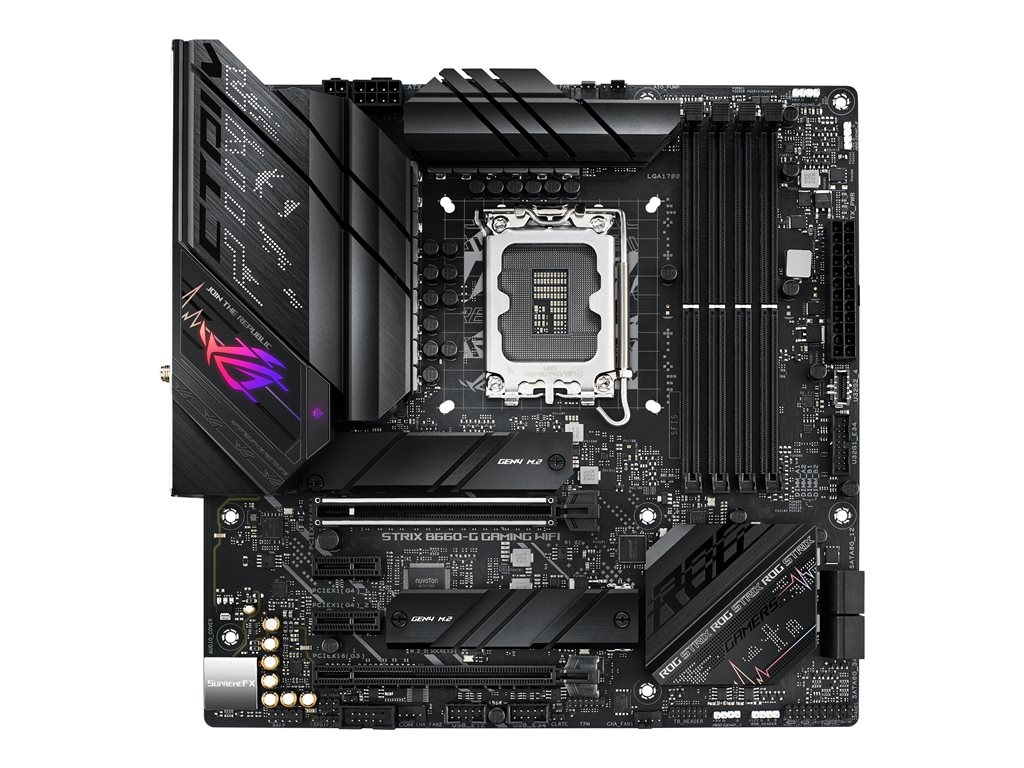

Printers & POSASUS ROG STRIX B660-G GAMING WIFI - motherboard - micro ATX - LGA1700 Socket - B660
SKU 90MB18Y0-M0EAY0
| Product Description: | ASUS ROG STRIX B660-G GAMING WIFI - motherboard - micro ATX - LGA1700 Socket - B660 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel B660 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR5, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel B660 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR5 |
| Bus Clock: | 5000 MHz (O.C.), 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | SupremeFX (S1220A) |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 4.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 4.0 -connectors: 2 x M.2 |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen1 ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen2 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x SPDIF out - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3, MemTest86 |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, SupremeFX Shielding technology, LANGuard, ASUS Fan Xpert 4, ASUS SafeSlot, Intel Optane Memory Ready, Sonic Radar III, Sonic Studio III, ASUS SafeDIMM, ASUS ProCool, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, GameFirst VI, Savitech SV3H712 amplifier, M.2 Q-Latch |
| Miscellaneous | |
| Included Accessories: | Cable ties, ROG fan stickers, ROG thank you card, ROG key chain, ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 Q-Latch |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | ROG CPU-Z, ASUS AI Suite III, Antivirus, WinRAR, Sonic Studio Virtual Mixer, AIDA64 Extreme (60 days trial), ASUS AURA Creator, Sonic Suite Companion, MyAsus |
| Compliant Standards: | DisplayPort 1.4 |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
ROG Strix B660-G Gaming WiFi is the premiere choice for DIY builders who enjoy working with a well-balanced microATX-based platform. Its hefty heatsinks and premium power delivery unleash the full force of 12th Gen Intel Core processors that feature full support for DDR5 memory and PCIe 5.0. Meanwhile, onboard passively cooled PCIe 4.0 M.2 slots offer lightning-fast data transfers for an endless variety of scenarios. Finally, a stack of exclusive intelligent controls and ASUS Enhanced Memory Profile tuning can work together to optimize every aspect of system performance.
- Intel LGA 1700 socket: ready for 12th Gen Intel Core, Pentium Gold and Celeron processors
- Optimal Power Solution: 12+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized thermal design: integrated I/O cover and VRM heatsinks with high conductivity thermal pad, and two onboard M.2 heatsinks
- High-performance networking: on-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best gaming connectivity: supports HDMI 2.1 and DisplayPort 1.4 output, two M.2 slots, as well as USB 3.2 Gen 2x2 Type-C
- Intelligent control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY friendly design: M.2 Q-Latch, pre-mounted I/O shield, Q-LED and BIOS FlashBack button
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and three addressable Gen 2 RGB headers
- Industry-leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS Sound Unbound and Sonic Studio III
- Renowned Software: bundled AIDA64 Extreme 60-day free trial, and an intuitive UEFI BIOS dashboard with integrated MemTest86
The technical details come from 3rd party. edgemo is not responsible for any errors.
