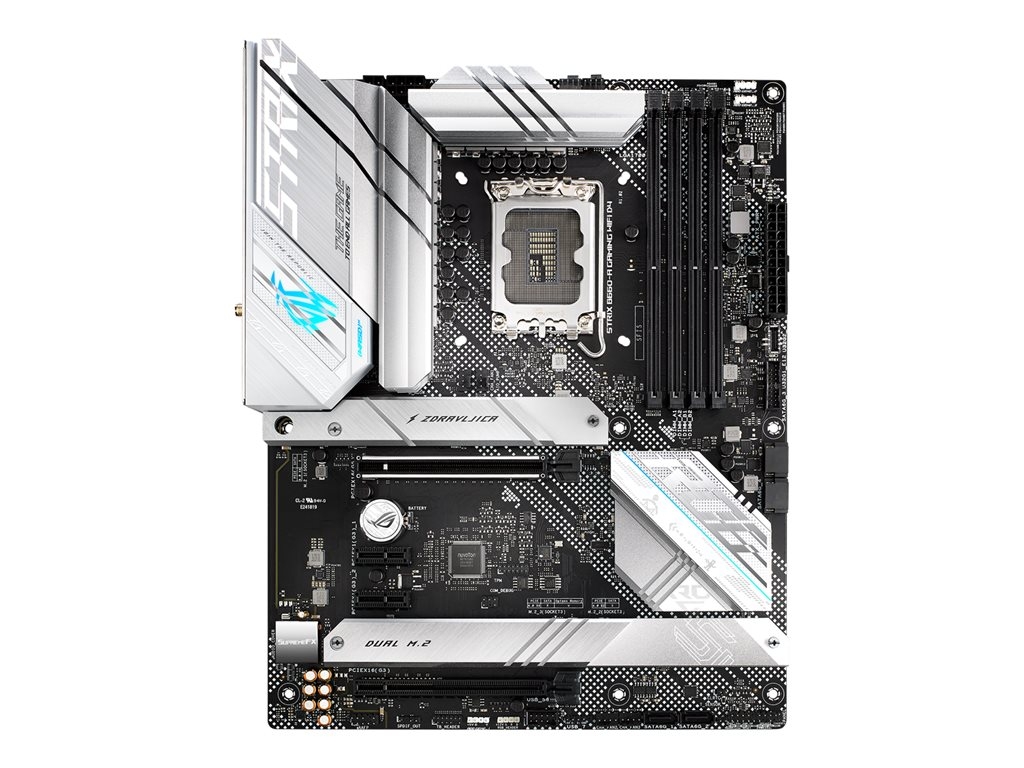

ASUS ROG STRIX B660-A GAMING WIFI D4 - motherboard - ATX - LGA1700 Socket - B660
SKU 90MB18S0-M1EAY0
Product Description: | ASUS ROG STRIX B660-A GAMING WIFI D4 - motherboard - ATX - LGA1700 Socket - B660 |
Product Type: | Motherboard - ATX |
Chipset Type: | Intel B660 |
Processor Socket: | 1 x LGA1700 Socket |
Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
Max RAM Size: | 128 GB |
RAM Supported: | 4 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - ATX |
Chipset Type: | Intel B660 |
Processor Socket: | LGA1700 Socket |
Max Processors Qty: | 1 |
Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
Supported RAM | |
Max Size: | 128 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5333 MHz (O.C.) |
Supported RAM Integrity Check: | Non-ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | SupremeFX (ALC4080) |
Compliant Standards: | High Definition Audio, DTS Sound Unbound |
LAN | |
Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) |
Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 |
RAID Features: | Intel Rapid Storage Technology |
Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C 3.2 Gen2x2 ¦ 4 x USB 2.0 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x USB-C 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x aerial |
Internal Interfaces: | 3 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header |
Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
Hardware Features: | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, ASUS DIGI+ VRM, SupremeFX Shielding technology, Preboot eXecution Environment (PXE), LANGuard, 6 Layer PCB, ASUS SafeSlot, Intel Optane Memory Ready, ASUS SafeDIMM, M.2 heatsink, ASUS ProCool, Water Pump Header, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, 12+1 Phase Power Design, DIY Friendly Design, FlexKey button, Savitech SV3H712 amplifier, M.2 Q-Latch, 5K Black Metallic Capacitors, Windows 11 compatible, CPU Socket lever protector, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED |
Miscellaneous | |
Included Accessories: | Cable ties, STRIX stickers, ROG thank you card, ROG key chain, ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, M.2 Q-Latch |
Cables Included: | 4 x Serial ATA cable |
Software Included: | ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, Antivirus, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 days trial), ASUS AURA Creator, Sonic Suite Companion, MyAsus, Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS Fan Xpert 4 |
Compliant Standards: | VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, EU RoHS, EU REACH |
Width: | 30.5 cm |
Depth: | 24.4 cm |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
ROG Strix B660-A Gaming WiFi D4 offers premium power delivery and optimized cooling to unleash the full force of the latest 12th Gen Intel Core processors. Onboard PCIe 5.0, WiFi 6 and three PCIe 4.0 M.2 slots provide lightning-fast data transfers for an endless variety of scenarios, and ASUS-exclusive intelligent controls to help optimize PC settings. On top of all that, DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly.
- Intel LGA 1700 Socket: Ready for 12th Gen Intel Core, Pentium Gold and Celeron processors
- Optimal Power Solution: 12+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized thermal design: Integrated I/O cover, VRM heatsinks with high conductivity thermal pads, and three onboard M.2 heatsinks
- High-performance Networking: on-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best gaming connectivity: supports HDMI 2.1 and DisplayPort 1.4 output, three M.2 slots, as well as USB 3.2 Gen 2x2 Type-C
- Intelligent control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY friendly design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack button and Q-LED
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
- Industry-leading gaming audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
- Renowned software: bundled 60-day free trial of AIDA64 Extreme, and an intuitive UEFI BIOS dashboard with integrated MemTest86
